Part Number # 831-3204
SKU # 2346643
Image Disclaimers Message
Brand: Wago
831-3204

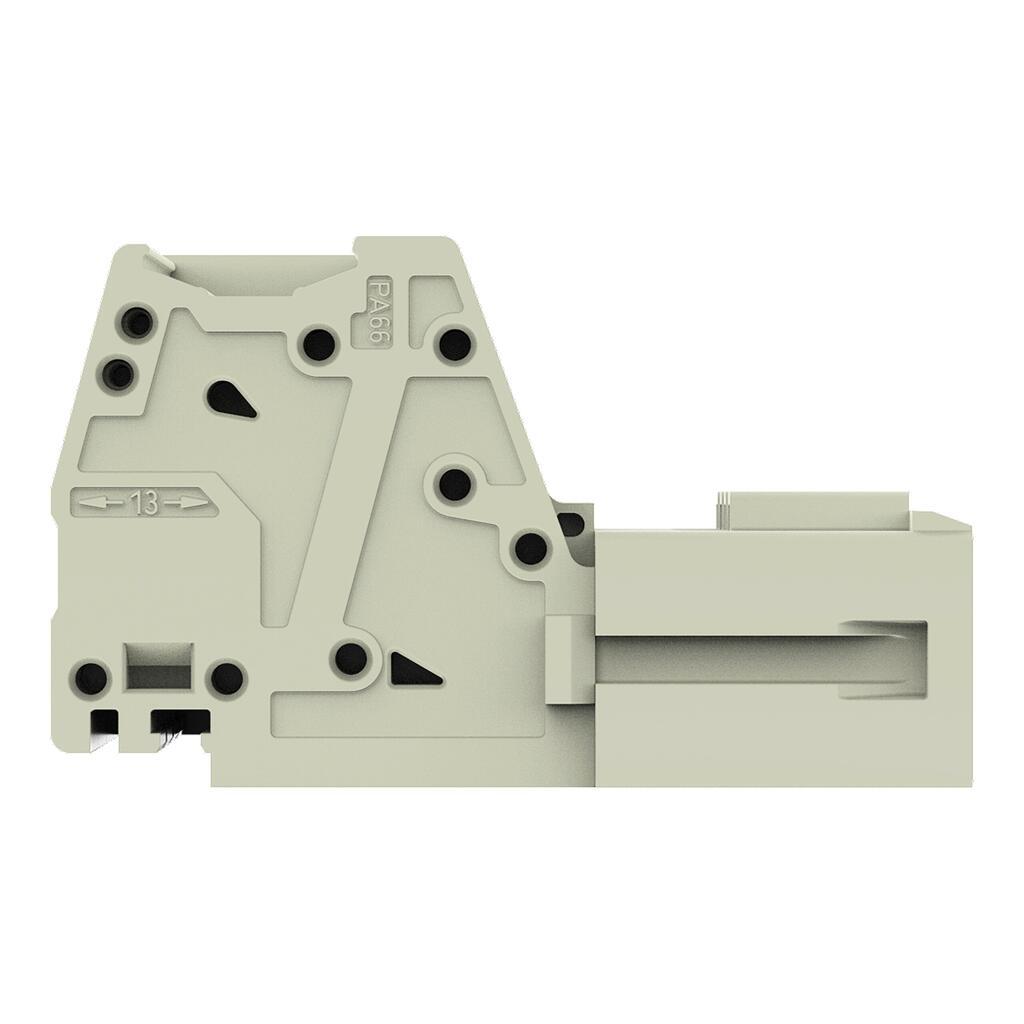

WAGO 831-3204 1-conductor male connector
Part Number # 831-3204
SKU # 2346643
$9.97 / Each
Typical price:$10.80 / Each
Wago 831-3204 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 831-3204 |
| SKU #: | 2346643 |
| Amperage Rating: | 41 A |
| Dimensions: | 1.083 in H x 1.274 in W x 1.811 in D |
| Number of Poles: | 4 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 20 to 8 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Light gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Connector (connection type): | For conductor |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | PL |
| Depth: | 46 mm / 1.811 inch |
| Height: | 27.5 mm / 1.083 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 41 A |
| Solid conductor: | 0.5 … 10 mm² / 20 … 8 AWG |
| Total number of connection points: | 4 |
| Weight: | 26.910 g |
| Width: | 32.36 mm / 1.274 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121469 |
| UPC: | 04045454063597 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$9.97 / Each
Typical price:$10.80 / Each
Quantity:
- WAGO, 831-3204, 1-Conductor Male Connector, Operating Tool, 1 kV, 41 A, 4 Pole, 20 to 8 AWG Wire, 0.59 in Wire Strip Length, Push-In Connection, -35 to 60 deg C, Polyamide, Light Gray, 1.083 in H x 1.274 in W x 1.811 in D Dimensions
831-3204 Item Features
- Universal connection for all conductor types
- Push-in termination of solid or ferruled conductors
- 100 Percent protected against mismating
- Coding via coding fingers
831-3204 Standards
CSA|IEC/EN 60664-1|RoHS Compliant|UL 1059SKU #2346643Part Number #831-3204UNSPSC39121469UPC04045454063597
