Part Number # 831-3205/1020-004
SKU # 2320464
Image Disclaimers Message
831-3205/1020-004

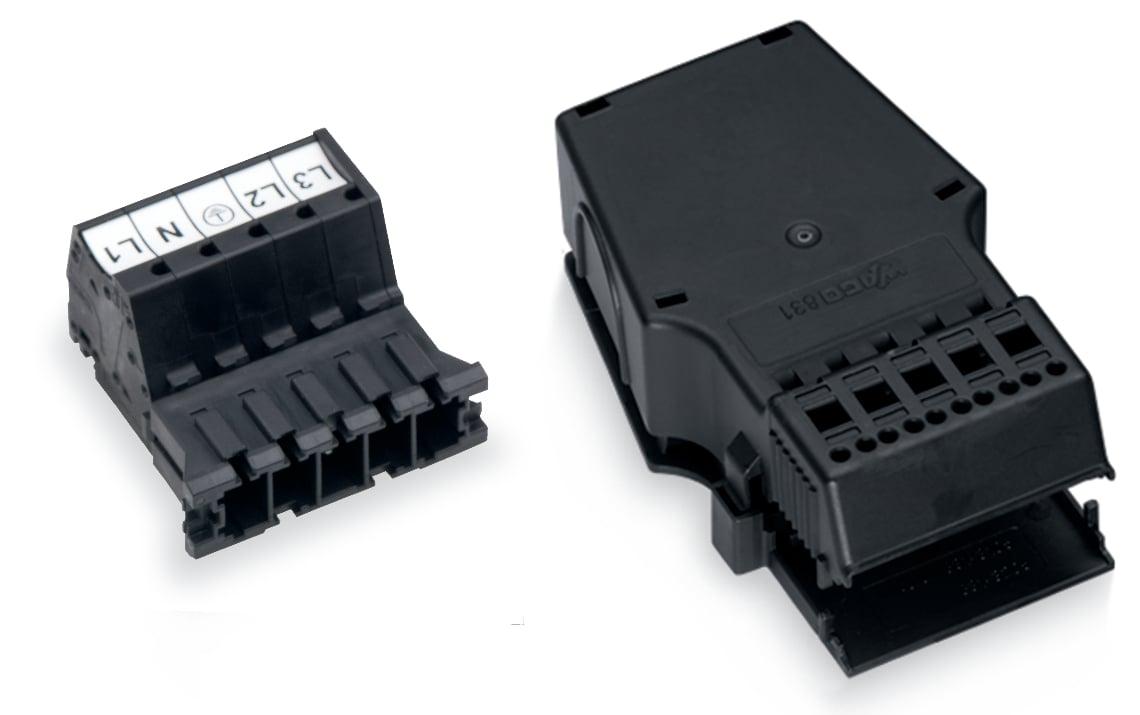

WAGO 831-3205/1020-004 Electrical Plug/Receptacle Adapter
Part Number # 831-3205/1020-004
SKU # 2320464
$18.68 / Each
Typical price:$20.24 / Each
Wago 831-3205/1020-004 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 831-3205/1020-004 |
| SKU #: | 2320464 |
| Connector Type: | Plug |

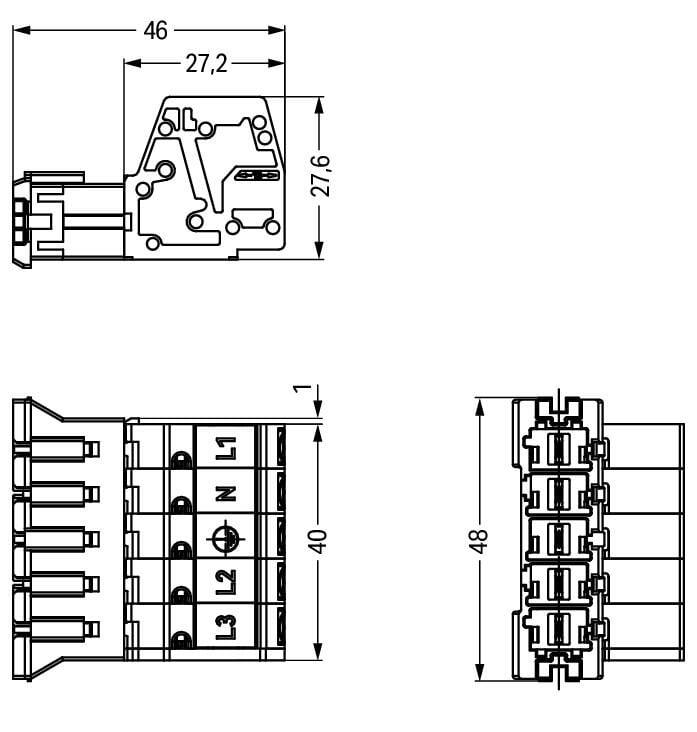

| Dimensions: | 1.08 in H x 1.89 in W x 1.81 in D |
| Number of Positions: | 5 |
| Specifications: | -35 to 85 degree C Continuous Operating Temperature |
| Suitable For Use With: | General Mains Application |
| Type: | Operating Tool |
| Actuation type: | Operating tool || Push-in |
| Application: | General mains applications |
| Coding: | A |
| Color: | Black |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | Push-in CAGE CLAMP® |
| Connector (connection type): | For conductor |
| Contact material: | Copper or copper alloy (surface-treated) |
| Country of origin: | DE |
| Depth: | 46 mm / 1.811 inch |
| Height: | 27.55 mm / 1.085 inch |
| Insulation material: | Polyamide (PA66) |
| Marking: | L1 N ⏚ L2 L3 |
| Material: | Polyamide (PA66) |
| Nominal cross-section: | 6 mm² |
| Potential marking: | L1 N ⏚ L2 L3 |
| Protection type: | IP20 |
| Rated current: | 35 A |
| Solid conductor: | 0.5 … 6 mm² / 20 … 8 AWG |
| Strain relief: | Strain relief housing |
| Stranded conductor: | 0.5 … 4 mm² / 20 … 12 AWG |
| Total number of connection points: | 5 |
| Weight: | 69.105 g |
| Width: | 48 mm / 1.89 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121469 |
| UPC: | 04055143500746 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$18.68 / Each
Typical price:$20.24 / Each
Quantity:
WAGO 831-3205/1020-004 Electrical Plug/Receptacle Adapter
Brand: Wago
Part Number: 831-3205/1020-004
Additional Description: WAGO-831-3205/1020-004 PLUG; WITH STRAIN RELIEF HOUSING; 5-POLE; COD. A; 6,00 MM; BLACK 60310407
Catalog Description: Plug; with strain relief housing; 5-pole; 6,00 mm²; black
831-3205/1020-004 Application
For General mains applications831-3205/1020-004 Item Features
- Protection against mismating eliminates errors
- Products perfectly tailored to your requirements guarantee safe use
- With A coding for a large number of uses
- Exact dimensions
- Fast, secure installation
831-3205/1020-004 Standards
IEC/EN 60664-1|RoHS CompliantSKU #2320464Part Number #831-3205/1020-004UNSPSC39121469UPC04055143500746
