Part Number # 831-3208
SKU # 2253476
Image provided may only be a representation of
final product and may include optional equipment
831-3208

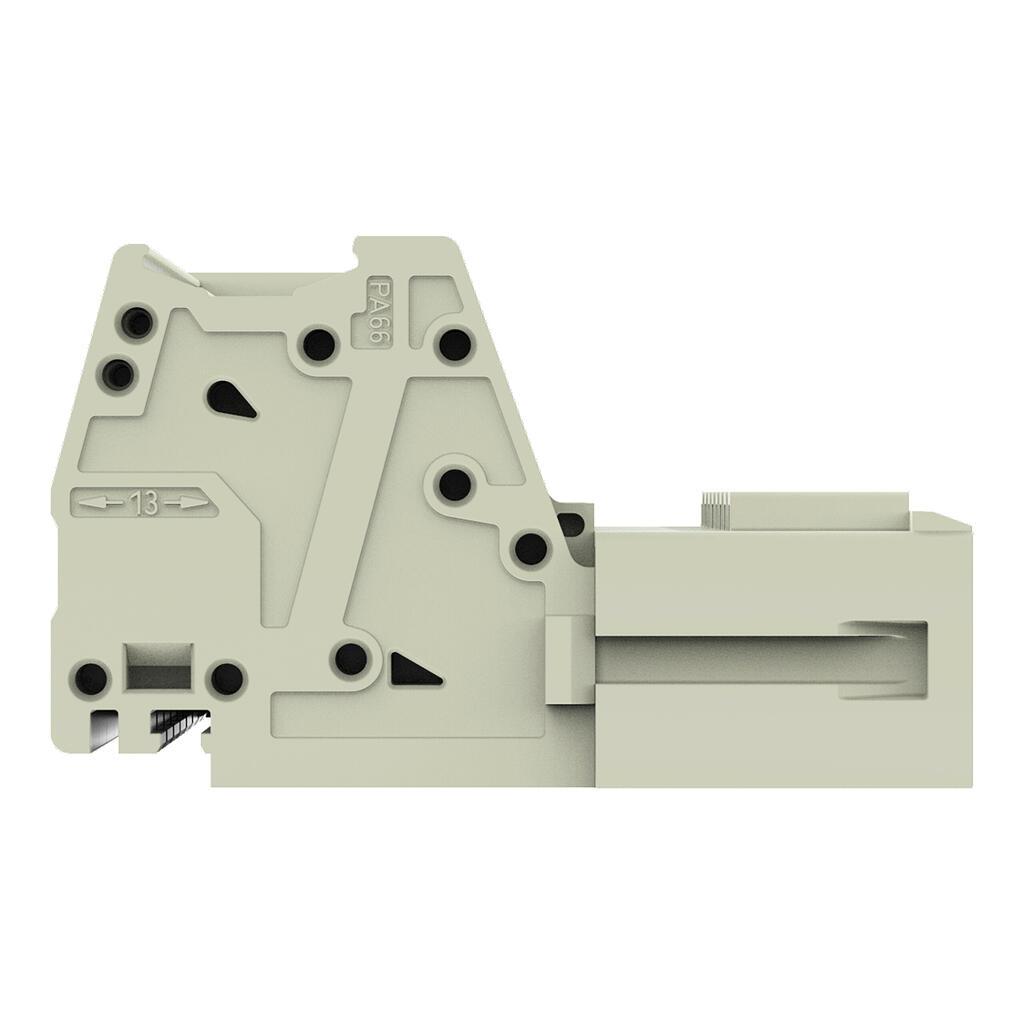

WAGO 831-3208 1-conductor male connector
Part Number # 831-3208
SKU # 2253476
$19.36 / Each
Typical price:$20.97 / Each
Wago 831-3208 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 831-3208 |
| SKU #: | 2253476 |
| Amperage Rating: | 41 A |
| Dimensions: | 1.083 in H x 2.474 in W x 1.811 in D |
| Number of Poles: | 8 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 20 to 8 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Connector (connection type): | For conductor |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | PL |
| Depth: | 46 mm / 1.811 inch |
| Height: | 27.5 mm / 1.083 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 41 A |
| Solid conductor: | 0.5 … 10 mm² / 20 … 8 AWG |
| Total number of connection points: | 8 |
| Weight: | 52.210 g |
| Width: | 62.84 mm / 2.474 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121469 |
| UPC: | 04045454160944 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$19.36 / Each
Typical price:$20.97 / Each
Quantity:
WAGO 831-3208 1-conductor male connector
Brand: Wago
Part Number: 831-3208
Additional Description: WAGO-831-3208 1-CONDUCTOR MALE CONNECTOR; 100% PROTECTED AGAINST MISMATING; 10 MM ; PIN SPACING 7.62 MM; 8-POLE; 10,00 MM ; LIGHT GRAY 08313208
Catalog Description: 1-conductor male connector; Push-in CAGE CLAMP®; 10 mm²; Pin spacing 7.62 mm; 8-pole; 100% protected against mismating; 10,00 mm²; light gray
831-3208 Item Features
- Universal connection for all conductor types
- Push-in termination of solid or ferruled conductors
- 100 Percent protected against mismating
- Coding via coding fingers
831-3208 Standards
CSA|IEC/EN 60664-1|RoHS Compliant|UL 1059SKU #2253476Part Number #831-3208UNSPSC39121469UPC04045454160944
