Part Number # 832-1102/037-000
SKU # 2371127

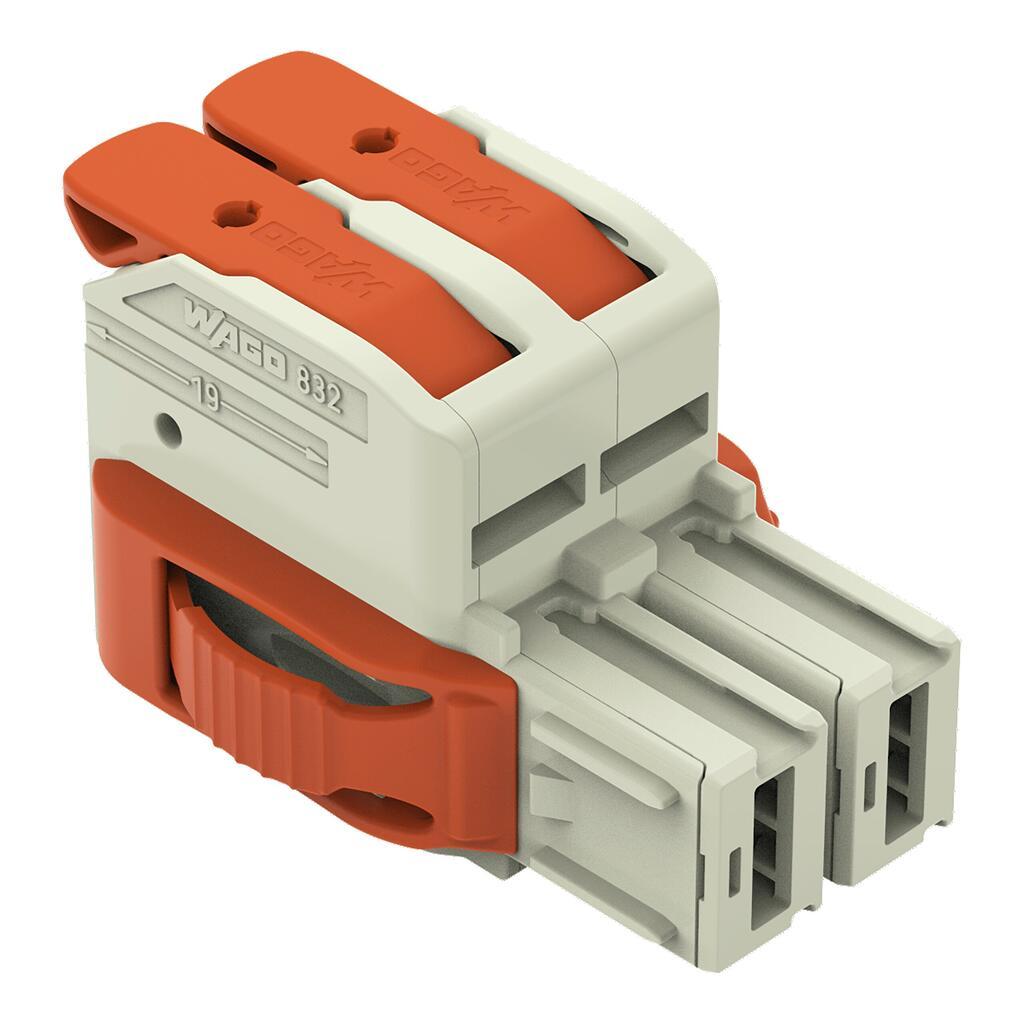

Image provided may only be a representation of
final product and may include optional equipment
832-1102/037-000
WAGO 832-1102/037-000 Electrical Connector Assembly
Part Number # 832-1102/037-000
SKU # 2371127
Wago 832-1102/037-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 832-1102/037-000 |
| SKU #: | 2371127 |
| Amperage Rating: | 76 A |
| Dimensions: | 1.146 in H x 1.324 in W x 1.961 in D |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Lever |
| Wire Size: | 18 to 4 AWG |
| Actuation type: | Lever |
| Approvals per: | CSA, UL 1059 |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Connector (connection type): | For conductor |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 49.8 mm / 1.961 inch |
| Height: | 29.1 mm / 1.146 inch |
| Insulation material: | Polybutylene terephthalate (PBT) |
| Material: | Polybutylene Terephthalate |
| Number of connection types: | 1 |
| Rated current: | 76 A |
| Solid conductor: | 0.75 … 16 mm² / 18 … 4 AWG |
| Total number of connection points: | 2 |
| Weight: | 29.366 g |
| Width: | 33.62 mm / 1.324 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04055143921138 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 832-1102/037-000 Electrical Connector Assembly
Brand: Wago
Part Number: 832-1102/037-000
Additional Description: WAGO-832-1102/037-000 1-CONDUCTOR FEMALE PLUG; 100% PROTECTED AGAINST MISMATING; LEVER; SILVER-PLATED CONTACTS; LOCKING LEVER; 16 MM ; PIN SPACING 10.16 MM; 2-POLE; 16,00 MM ; LIGHT GRAY 60366232 GRAY
Catalog Description: 1-conductor female connector; lever; Push-in CAGE CLAMP®; 16 mm²; Pin spacing 10.16 mm; 2-pole; 100% protected against mismating; Lateral locking levers; Silver-plated contacts; 16,00 mm²; light gray
832-1102/037-000 Item Features
- Intuitive and tool-free lever actuation
- Universal connection for all conductor types
- Push-in termination of solid or ferruled conductors
- 100 Percent protected against mismating
- Coding option available
832-1102/037-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2371127Part Number #832-1102/037-000UNSPSC39121421UPC04055143921138
