Brand: Wago

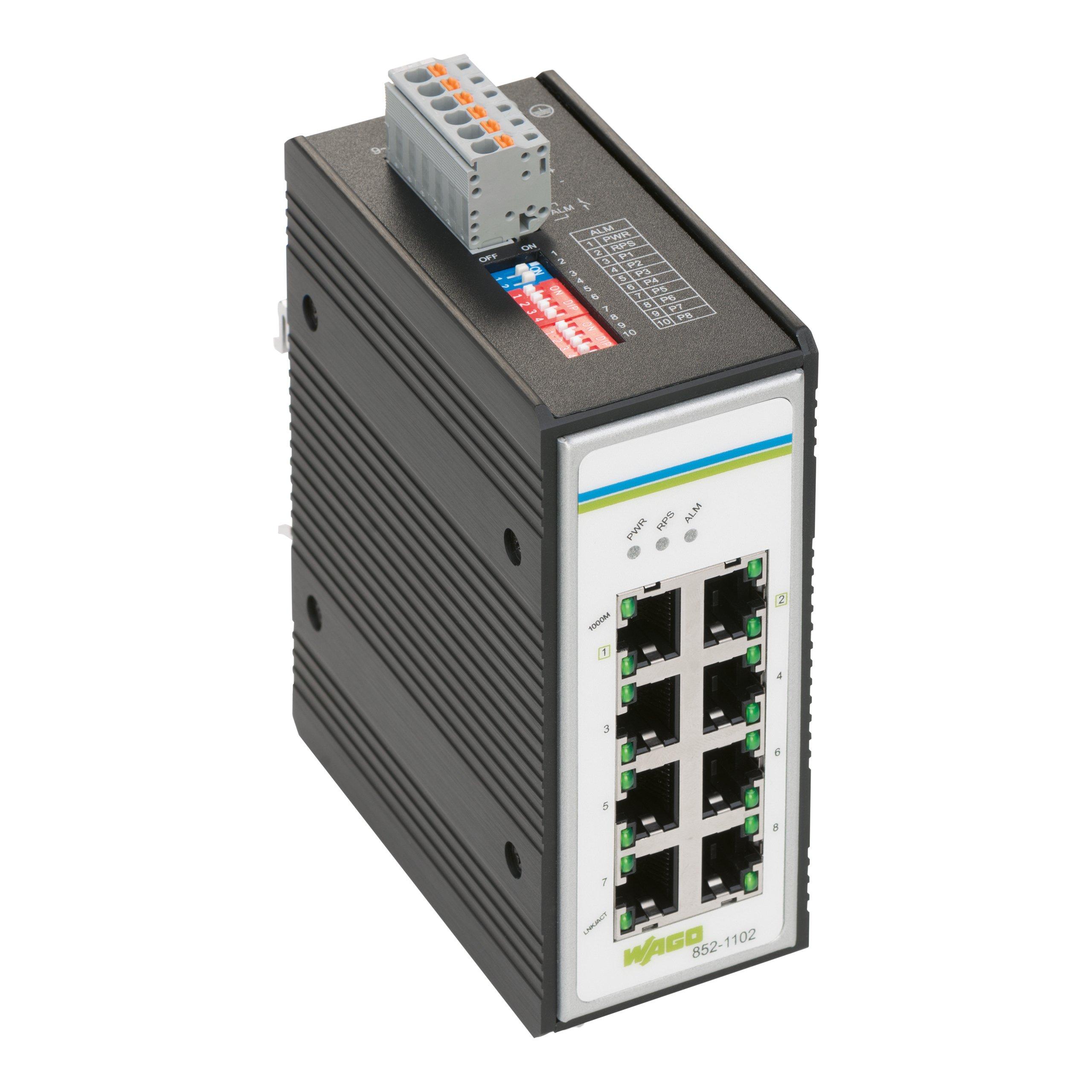

WAGO 852-1102 Industrial unmanaged switch
Image Disclaimers Message
Brand: Wago
WAGO 852-1102 Industrial unmanaged switch
Brand: Wago
WAGO 852-1102 Industrial unmanaged switch
Part #:852-1102
SKU #: 2351544
$418.89/EA
Key Features
Part #:852-1102
SKU #: 2351544
Brand: Wago
Series: 852
Type: Unmanaged
Baud rate: Copper cable: 10/1000 Mbit/s
Color: Black
Communication standards: IEEE 802.3 10BASE-T || IEEE 802.3u 100BASE-TX || IEEE 802.3ab 1000BASE-T || IEEE 802.3x Flow Control || IEEE 802.3az Energy Efficient Ethernet || IEEE 802.1p Prioritization
$418.89/EA
- Redundant DC power supply
- Large supply voltage range 9 to 57 V
- DIP switches to set alarm functions
- Non-blocking, store-and-forward switching
- Auto-negotiation at all 10/100/1000BASE-T ports
- Auto-MDI/MDIX (crossover) at all 10/100/1000BASE-T ports
- Integrated address look-up table, supports up to 8000 absolute MAC addresses
- Overvoltage protection
Specifications
Brand: Wago
Series: 852
Type: Unmanaged
Baud rate: Copper cable: 10/1000 Mbit/s
Color: Black
Communication standards: IEEE 802.3 10BASE-T || IEEE 802.3u 100BASE-TX || IEEE 802.3ab 1000BASE-T || IEEE 802.3x Flow Control || IEEE 802.3az Energy Efficient Ethernet || IEEE 802.1p Prioritization
Connection technology: 1 x Built-in male connector: 231-436/001-000; included female connector (MCS Connectors): 2231-106/026-000, Copper cable: 8 x RJ-45
Controls: 10 x DIP switch: Alarm function power supplies and ports 1 … 8
Country of origin: TW
Height: 105 mm / 4.134 inch
Housing material: Aluminum
Mounting type: DIN-35 rail
Number of 1000BASE-T ports: 8
Protection type: IP30
Redundancy function: Redundant DC power supply
Supply voltage: DC 9 … 57 V
Switching mode: Store‐and‐forward; non-blocking
Vibration resistance: Per IEC 60068-2-6
Weight: 543.000 g
Width: 50 mm / 1.969 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 32151702
UPC: 04055143500173
WAGO 852-1102 Industrial unmanaged switch
WAGO, 852-1102, Industrial Switch, Unmanaged, Series: 852, RJ-45 Copper Connectors
Additional Description: WAGO-852-1102 INDUSTRIAL-SWITCH; 8-PORT 1000BASE-T; BLACK 60310725
Catalog Description: Industrial-Switch; 8 Ports 1000Base-T; black
Item Features
Item FeaturesRoHS Compliant
