852-1417
WAGO 852-1417 Industrial unmanaged ECO switch
Part Number # 852-1417
SKU # 2349248
Wago 852-1417 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 852-1417 |
| SKU #: | 2349248 |
| Interface: | 1000Base-T |
| Protocol: | PROFINET |
| Series: | 852 |
| UNSPSC: | 32151702 |
| UPC: | 04055143727143 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 852-1417 Industrial unmanaged ECO switch
Brand: Wago
Part Number: 852-1417
WAGO, 852-1417, Series: 852, Network: Ethernet, 1000BASE-T Interface, 5 Ports, 10. 100. 1000 Mbps Data Transfer Rate, LED Indicator, PROFINET Protocol, DIN Rail Mounting
Additional Description: WAGO-852-1417 INDUSTRIAL-ECO-SWITCH; 5-PORT 1000BASE-T; 2-SLOT 1000BASE-SX/LX; EXTENDED TEMPERATURE RANGE; 4 * POWER OVER ETHERNET; BLACK 60363143
Catalog Description: Industrial-ECO-Switch; 5-port 1000Base-T; 2-Slot 1000BASE-SX/LX; Extended temperature range; 4 * Power over Ethernet
852-1417 Item Features
- 2 Gigabit/s SFP slots

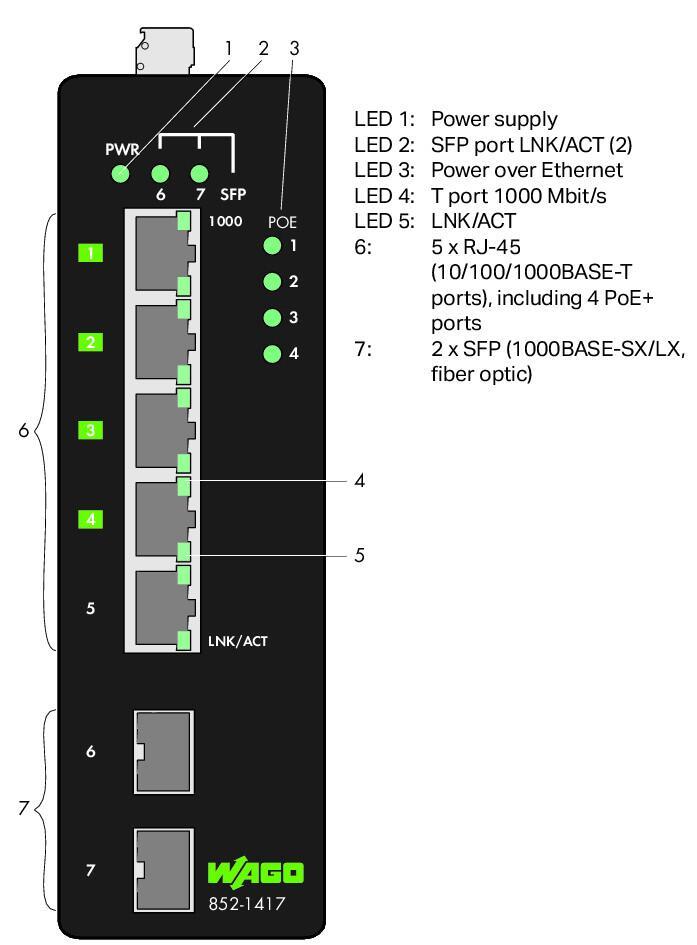

- Front-panel diagnostic LEDs
- Supports Auto-MDI/MDI-X functions
- Full/half-duplex transfer modes for each port
- Store-and-forward switching method
- Integrated address look-up table, supports up to 8000 absolute MAC addresses
- Overvoltage protection
- Prioritization of ETHERNET data packets (PROFINET protocol, EtherType equal to 0x8892)
852-1417 Standards
RoHS Compliant,No Exemption|IEEE802.1p|IEEE 802.3at|IEEE 802.3x|IP30|IEC 60068-2-6|IEC 60068-2-27|EN 61000-6-2SKU #2349248Part Number #852-1417UNSPSC32151702UPC04055143727143
Image provided may only be a representation of final product and may include optional equipment
