Part Number # 855-2701/035-001
SKU # 2301802
Image Disclaimers Message
855-2701/035-001

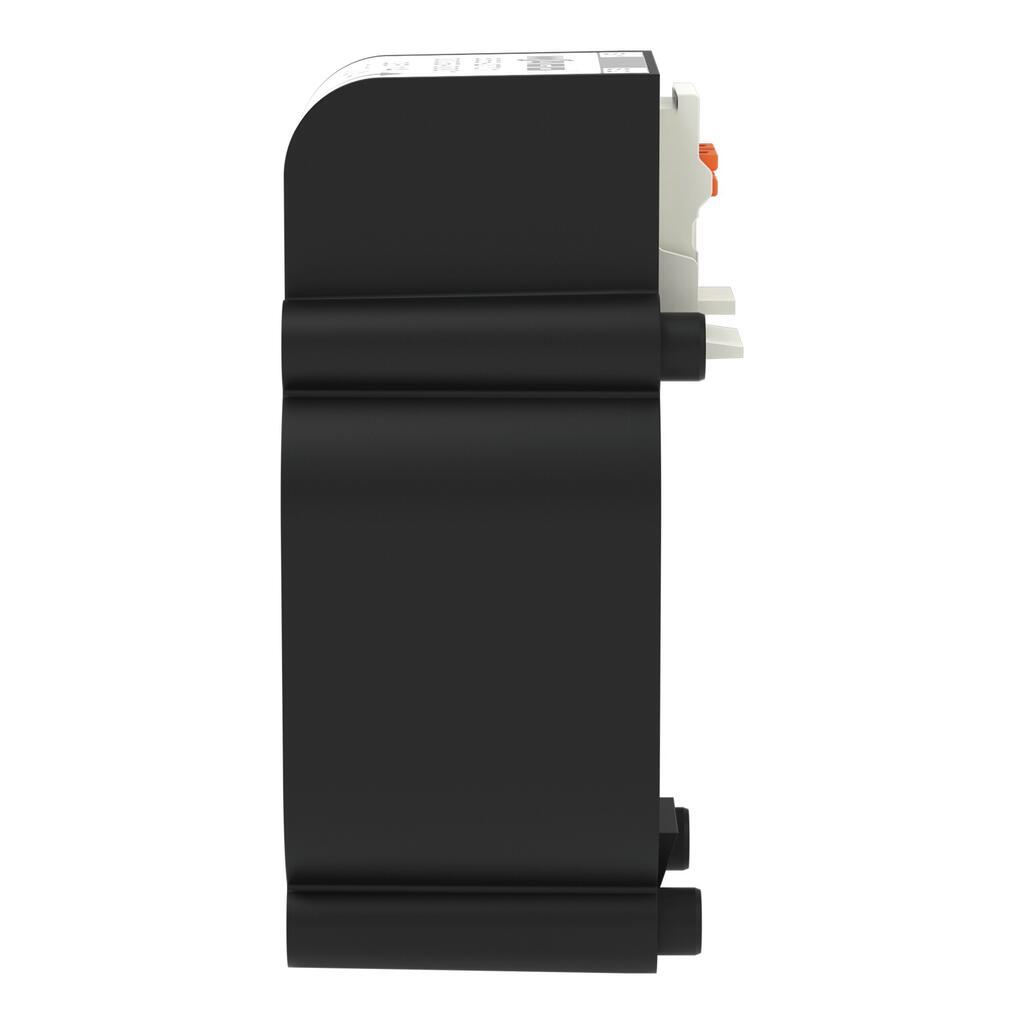

WAGO 855-2701/035-001 Plug-in current transformer
Part Number # 855-2701/035-001
SKU # 2301802
$125.08 / Each
Typical price:$135.50 / Each
Wago 855-2701/035-001 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 855-2701/035-001 |
| SKU #: | 2301802 |
| Current Ratio: | 35:1 |
| Frequency Rating: | 50 to 60 Hz |
| Primary Current: | 35 A |
| Secondary Current: | 1 A |
| Type: | Plug-In |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | NL |
| Depth: | 23 mm / 0.906 inch |
| Height: | 46 mm / 1.811 inch |
| Housing material: | PA 66 |
| Insulation class: | E |
| Mounting type: | Closed current transformer || Mounting on DIN-rail via DIN-rail adapter || Mounting on round cable, DIN Rail |
| Rated frequency: | 50 … 60 Hz |
| Secondary rated current: | 0.0416666666666667 |
| Solid conductor: | 0.2 … 1.5 mm² / 24 … 14 AWG |
| Standards/Specifications: | EN 61869-1; EN 61869-2; UL |
| Test voltage: | AC 3 kV; 50 Hz; 1 min |
| WAGO Connector: | picoMAX® 3.5, 2091-1122 |
| Weight: | 48.400 g |
| Width: | 27 mm / 1.063 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121032 |
| UPC: | 04050821864240 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$125.08 / Each
Typical price:$135.50 / Each
Quantity:
WAGO 855-2701/035-001 Plug-in current transformer
Brand: Wago
Part Number: 855-2701/035-001
Additional Description: WAGO-855-2701/035-001 PI-CT PRC 35A SRC 1A 51291551
Catalog Description: Plug-in current transformer; Primary rated current: 35 A; Secondary rated current: 1 A; Rated power: 0.2 VA; Accuracy class: 1
855-2701/035-001 Application
Designed for AC network applications855-2701/035-001 Item Features
- All-new design with picoMAX connection technology
- Simple assembly permits 17.5 mm phase spacing, allowing perfect adjustment to any circuit breaker
855-2701/035-001 Standards
EN 61869-1|EN 61869-2|UL|RoHS Compliant|CE|IP20SKU #2301802Part Number #855-2701/035-001UNSPSC39121032UPC04050821864240
