855-305/060-101

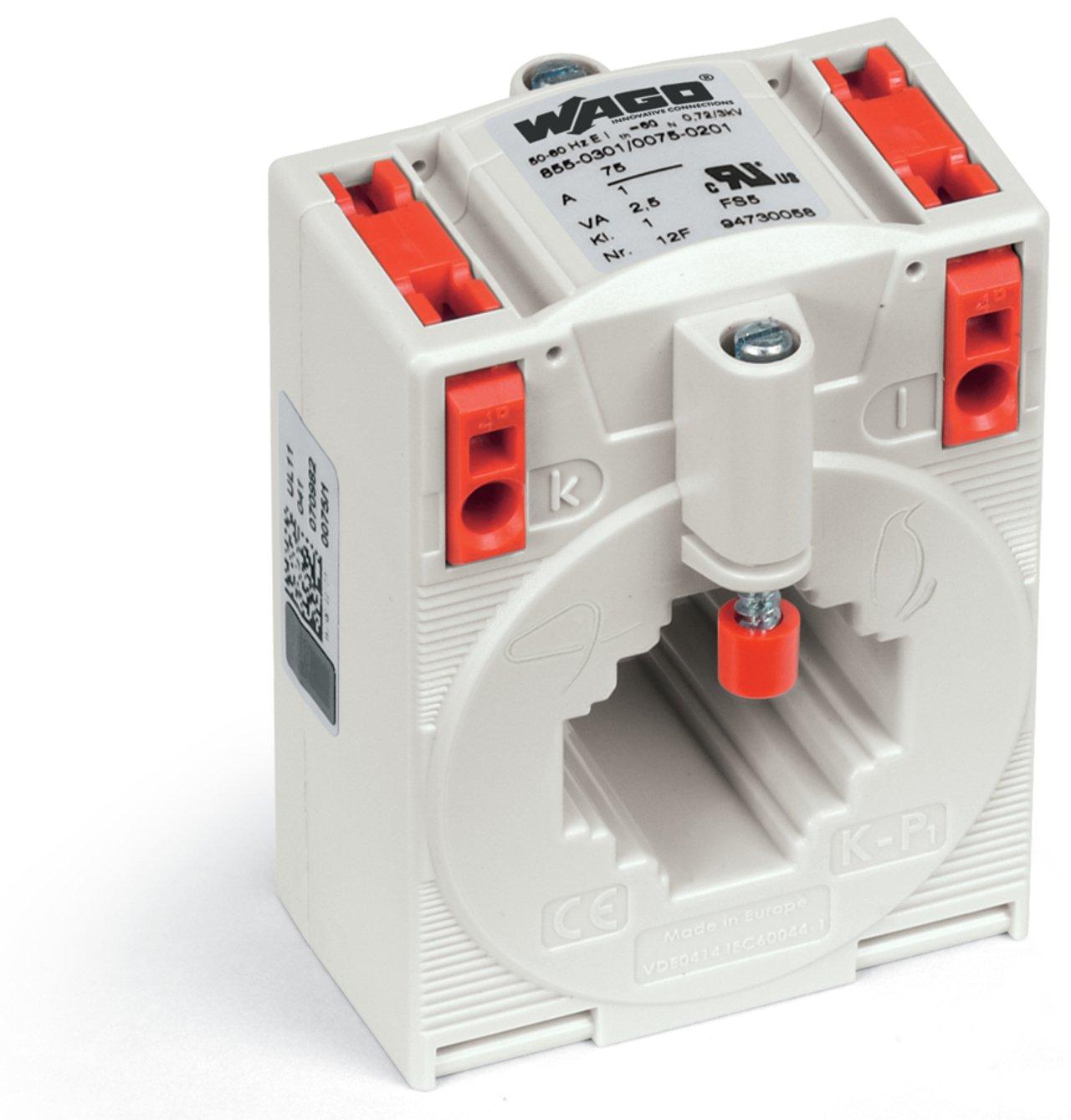

WAGO 855-305/060-101 Plug-in current transformer
Part Number # 855-305/060-101
SKU # 2318290
Wago 855-305/060-101 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 855-305/060-101 |
| SKU #: | 2318290 |
| Dimensions: | 3.18 in H x 2.36 in W x 2.04 in D |
| Frequency Rating: | 50 to 60 Hz |
| Insulation: | Class E |
| Primary Current: | 60 A |
| Secondary Current: | 5 A |
| Series: | 855 |
| Temperature Rating (Degrees F): | -5 to 50 deg C |
| Type: | Plug-In |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Cage Clamp |
| Country of origin: | HU |
| Depth: | 52 mm / 2.047 inch |
| Height: | 80.9 mm / 3.185 inch |
| Insulation class: | E |
| Mounting type: | Closed current transformer || Installation on mounting plate || Mounting on DIN-rail via DIN-rail adapter || Mounting on round cable, DIN Rail |
| Rated frequency: | 50 … 60 Hz |
| Secondary rated current: | 0.208333333333333 |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Standards/Specifications: | EN 61869-1; EN 61869-2; UL: E356480 |
| Test voltage: | AC 6 kV; 50 Hz; 1 min |
| Weight: | 308.000 g |
| Width: | 60 mm / 2.362 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121032 |
| UPC: | 04050821749318 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 855-305/060-101 Plug-in current transformer
Brand: Wago
Part Number: 855-305/060-101
WAGO, 855-305/060-101, Current Transformer, Plug-In, Series: 855, 60 A Primary Current, 5 A Secondary Current, 690 V, 1.2 kV Power, 50 to 60 Hz Frequency, 1 Accuracy, Cage Clamp Connection, DIN Rail Mounting, Class E Insulation, -5 to 50 deg C, 3.18 in H x 2.36 in W x 2.04 in D Dimensions
Additional Description: WAGO-855-305/060-101 PLUG-IN CURRENT TRANSFORMER PRC 60A SRC 5A 51281378
Catalog Description: Plug-in current transformer; Primary rated current: 60 A; Secondary rated current: 5 A; Rated power: 1.25 VA; Accuracy class: 1
855-305/060-101 Application
Designed for AC network applications855-305/060-101 Item Features
- Screwless CAGE CLAMP connection technology
- Several mounting options available
- Vibration- and shock-resistant
- High mechanical retention forces
- High current-carrying capacity
- Continuous overload of 120% the nominal primary current
- Low-voltage current transformer for operating voltages up to max. 1.2 kV
855-305/060-101 Standards
RoHS Compliant|EN 61869-1|EN 61869-2|UL: E356480SKU #2318290Part Number #855-305/060-101UNSPSC39121032UPC04050821749318
