Brand: Wago

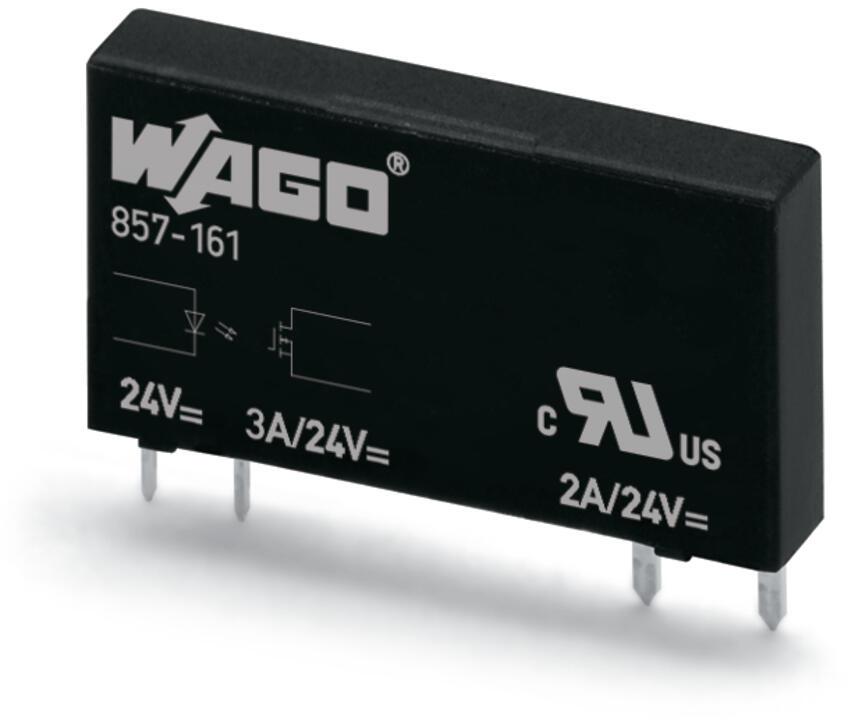

WAGO 857-161 Basic solid-state relay
Image Disclaimers Message
Brand: Wago
WAGO 857-161 Basic solid-state relay
Brand: Wago
WAGO 857-161 Basic solid-state relay
Part #:857-161
SKU #: 2252361
$780.40/20EA
Key Features
Part #:857-161
SKU #: 2252361
Brand: Wago
Circuit type: 2-wire connection
Country of origin: DE
Depth: 28 mm / 1.102 inch
Mounting type: Pluggable module
Output voltage range: DC 0 … 30 V
$780.40/20EA
Specifications
Brand: Wago
Circuit type: 2-wire connection
Country of origin: DE
Depth: 28 mm / 1.102 inch
Mounting type: Pluggable module
Output voltage range: DC 0 … 30 V
Switching current (min.): 50 µA
Switching frequency: ≤ 350 Hz
Turn-off time: ≤ 600 µs
Turn-on time: ≤ 100 µs
Weight: 4.895 g
Width: 5 mm / 0.197 inch
UNSPSC: 43232306
UPC: 04045454997632
WAGO 857-161 Basic solid-state relay
Additional Description: WAGO-857-161 BASIC SOLID-STATE RELAY; NOMINAL INPUT VOLTAGE: 24 VDC; OUTPUT VOLTAGE RANGE: 0 24 VDC; LIMITING CONTINUOUS CURRENT: 3 A 8570161 INPUT VOLTAGE: 24 VDC; OUTPUT VOLTAGE RANGE: 0 24 VDC; LIMITING CONTINUOUS CURRENT: 3 A 2A,OPTOCOUPL 08570161
Catalog Description: Basic solid-state relay; Nominal input voltage: 24 VDC; Output voltage range: 0 … 30 VDC; Limiting continuous current: 3 A
