Part Number # 857-304
SKU # 2173579
Image Disclaimers Message
857-304

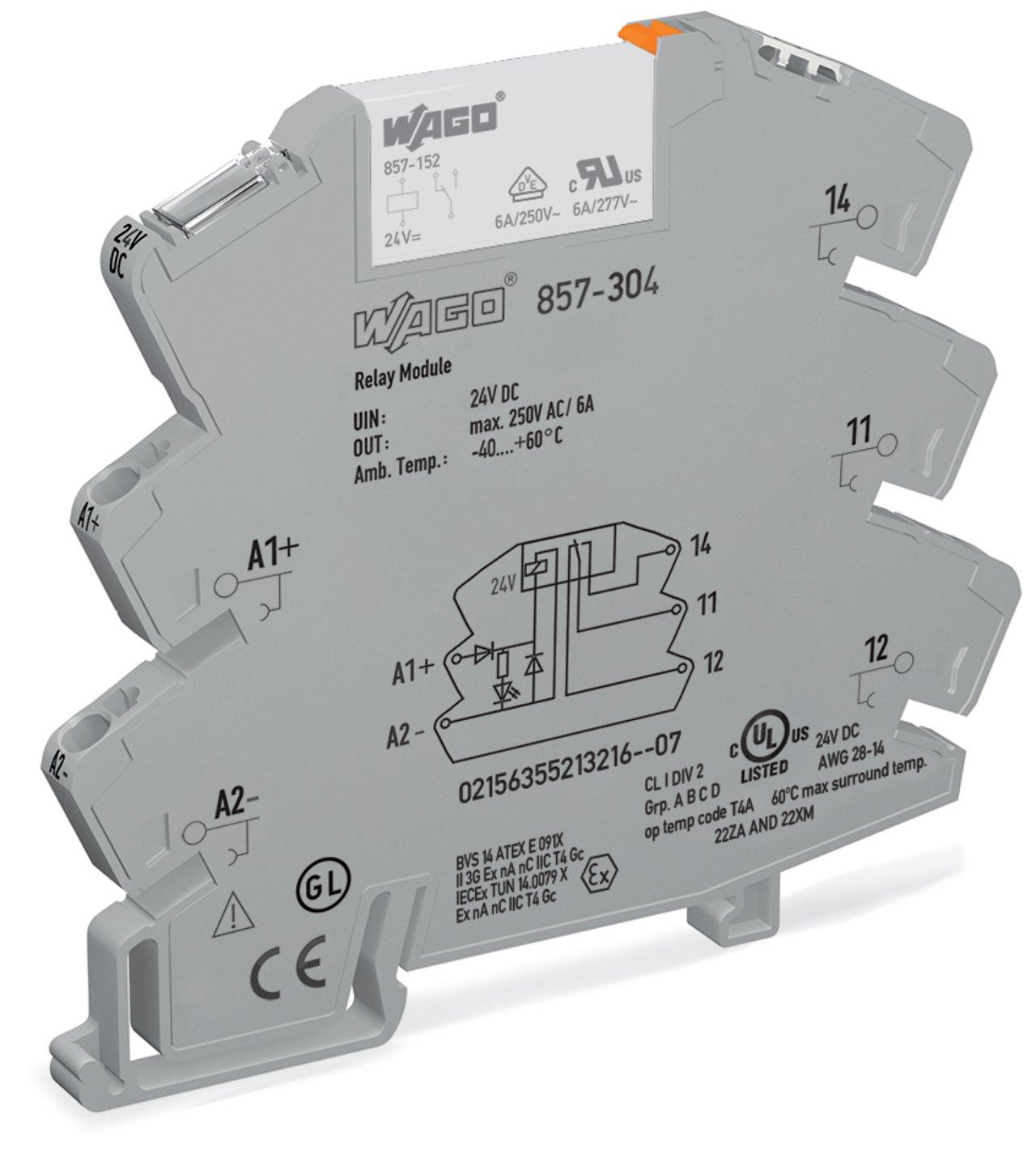

WAGO 857-304 Relay module
Part Number # 857-304
SKU # 2173579
$21.66 / Each
Typical price:$22.80 / Each
Wago 857-304 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 857-304 |
| SKU #: | 2173579 |
| Amperage Rating: | 6 A |
| Dimensions: | 3.701 in H x 0.236 in W x 3.189 in D |
| Enclosure Type: | IP20 |
| Indicator: | Yellow LED |
| Temperature Rating (Degrees F): | -25 to 50 deg C |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | CN |
| Depth: | 94 mm / 3.701 inch |
| Material: | Polyamide |
| Mechanical life: | 5 x 106 switching operations |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of changeover/switchover contacts: | 1 |
| Protection type: | IP20 |
| Rated voltage: | 250 V |
| Solid conductor: | 0.34 … 2.5 mm² / 22 … 14 AWG |
| Standards/Specifications: | EN 61010-2-201; EN 61810-1; EN 61373; UL 508; GL; ATEX; IEC Ex |
| Status indicator: | Yellow LED |
| Switching capacity: | AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V |
| Switching frequency with/without load (max.): | 6 min-1 / 180 min-1 |
| Weight: | 31.560 g |
| Width: | 6 mm / 0.236 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04050821797807 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$21.66 / Each
Typical price:$22.80 / Each
Quantity:
WAGO 857-304 Relay module
Brand: Wago
Part Number: 857-304
Additional Description: WAGO-857-304 24VDC 1 6AYLwstatus dicatormodl 51285597 VOLTAGE: 24 VDC; 1 CHANGEOVER CONTACT; LIMITING CONTINUOUS CURRENT: 6 A; YELLOW STATUS INDICATOR; MODULE WIDTH: 6 MM; 2,50 MM ; GRAY
Catalog Description: Relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Limiting continuous current: 6 A; Yellow status indicator; Module width: 6 mm; 2,50 mm²; gray
857-304 Standards
ATEX|IECEx|DNV|EN 61010-2-201|EN 61810-1|EN 61373|UL 508|GL|ATEX|IEC Ex|RoHS Compliant|IP20SKU #2173579Part Number #857-304UNSPSC43232306UPC04050821797807
