Part Number # 857-400
SKU # 2149789
Image Disclaimers Message
857-400

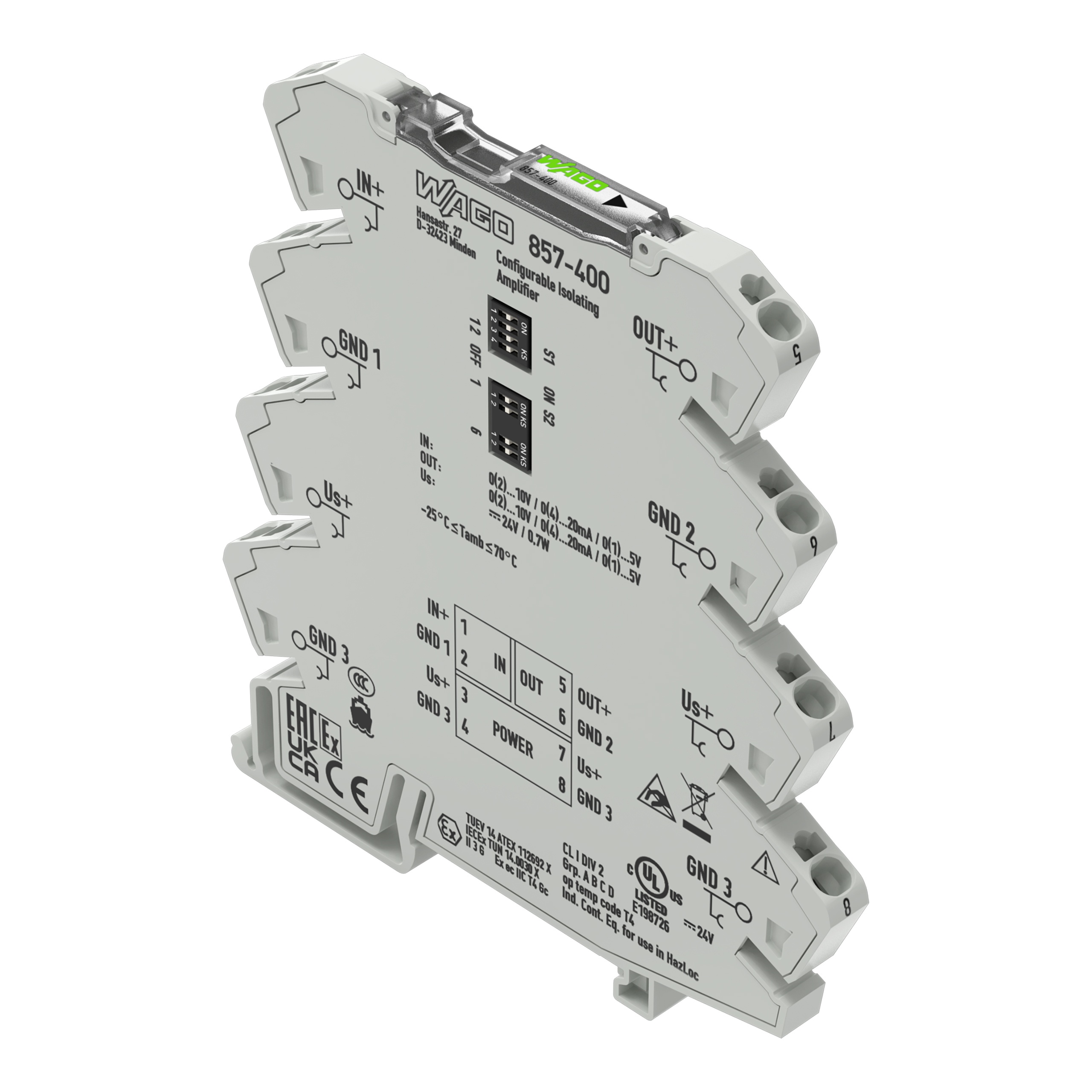

WAGO 857-400 JUMPFLEX signal conditioner
Part Number # 857-400
SKU # 2149789
$432.82 / Each
Wago 857-400 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 857-400 |
| SKU #: | 2149789 |
| Dimensions: | 3.701 in H x 0.236 in W x 3.85 in D |
| Input Voltage: | 24 V DC, 24 VDC |
| Response Time: | 3.5 ms |
| Series: | 857 |
| Specifications: | 0.363 MJ Fire Load, Spring Terminal |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 94 mm / 3.701 inch |
| Input current: | 50 mA |
| Input signal (current): | 0 … 20 mA; 4 … 20 mA (calibrated switching) |
| Input signal (voltage): | 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V (calibrated switching) |
| Input signal type: | Voltage || Current |
| Mounting type: | DIN Rail, DIN-35 rail |
| Output signal (current): | 0 … 20 mA; 4 … 20 mA; 0 … 10 mA; 2 … 10 mA (calibrated switching) |
| Output signal (voltage): | 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V |
| Output signal type: | Current || Voltage |
| Power consumption at nominal supply voltage: | ≤ 25 mA |
| Power supply type: | 24 VDC |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Supply voltage range: | ±30 % |
| Weight: | 36.800 g |
| Width: | 6 mm / 0.236 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04045454471293 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$432.82 / Each
Quantity:
- WAGO, 857-400, Amplifier, Series: 857, 24 V DC Input, 50 mA Input Current, Push-In Connection, DIN Rail Mounting, -25 to 70 deg C, 3.5 ms Response, Specifications: 0.363 MJ Fire Load, Spring Terminal, 3.701 in H x 0.236 in W x 3.85 in D Dimensions
857-400 Standards
RoHS CompliantSKU #2149789Part Number #857-400UNSPSC43232306UPC04045454471293
