Part Number # 857-401
SKU # 2201111
Image Disclaimers Message
857-401

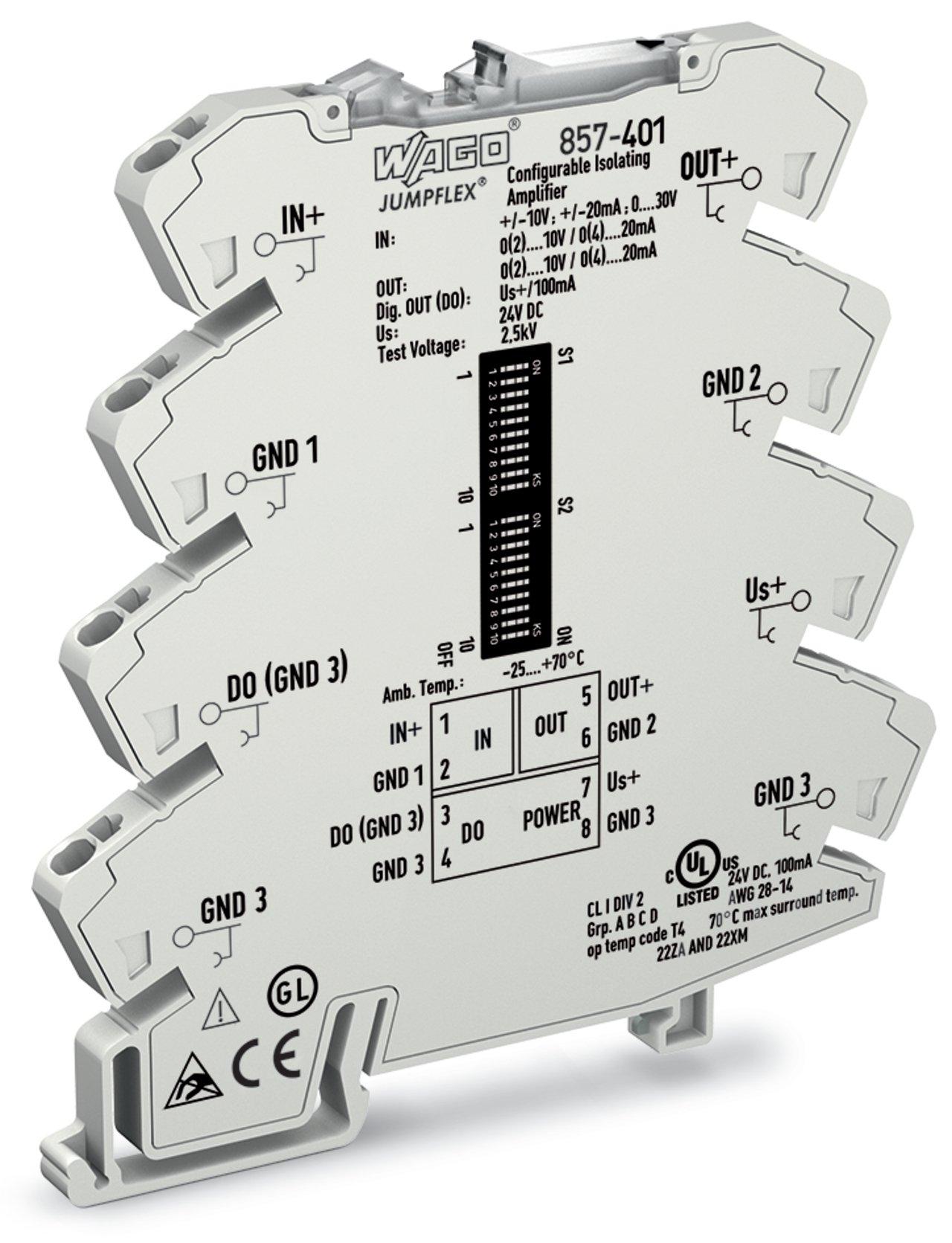

WAGO 857-401 JUMPFLEX signal conditioner
Part Number # 857-401
SKU # 2201111
$449.29 / Each
Wago 857-401 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 857-401 |
| SKU #: | 2201111 |
| Dimensions: | 3.701 in H x 0.236 in W x 3.85 in D |
| Input Voltage: | 31 V |
| Specifications: | 9 millimeter Length |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 94 mm / 3.701 inch |
| Input current: | 22 mA |
| Input signal (current): | ±20 mA |
| Input signal (voltage): | ±10 V; 0 … 30 V |
| Input signal type: | Voltage || Current |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Output signal (current): | 0 … 10 mA; 2 … 10 mA; 2 … 20 mA; 4 … 20 mA |
| Output signal (voltage): | 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V |
| Output signal type: | Current || Voltage |
| Power consumption at nominal supply voltage: | ≤ 40 mA (+ IDO) |
| Power supply type: | 24 VDC |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Standards/Specifications: | EN 61373 |
| Supply voltage range: | ±30 % |
| Weight: | 37.040 g |
| Width: | 6 mm / 0.236 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04045454828509 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$449.29 / Each
Quantity:
WAGO 857-401 JUMPFLEX signal conditioner
Brand: Wago
Part Number: 857-401
Additional Description: WAGO-857-401 ISOLATION AMPLIFIER; CURRENT AND VOLTAGE INPUT SIGNAL; CURRENT AND VOLTAGE OUTPUT SIGNAL; DIGITAL OUTPUT; SUPPLY VOLTAGE: 24 VDC; 6 MM MODULE WIDTH; 2,50 MM 08570401
Catalog Description: Isolation amplifier; Current and voltage input signal; Current and voltage output signal; Digital output; Supply voltage: 24 VDC; 6 mm module width; 2,50 mm²
857-401 Item Features
- PC configuration interface
- Digital switching output
- Calibrated measurement range switching
- Standard unipolar/bipolar analog signals at input
- Clipping capability for analog signal limitation to output end values
857-401 Standards
EN 61373|EN 50121-3-2|DNV|EN 61010-2-201|EN 50121-3-2|DNV|EN 61373|RoHS Compliant|CE|IP20SKU #2201111Part Number #857-401UNSPSC43232306UPC04045454828509
