857-403

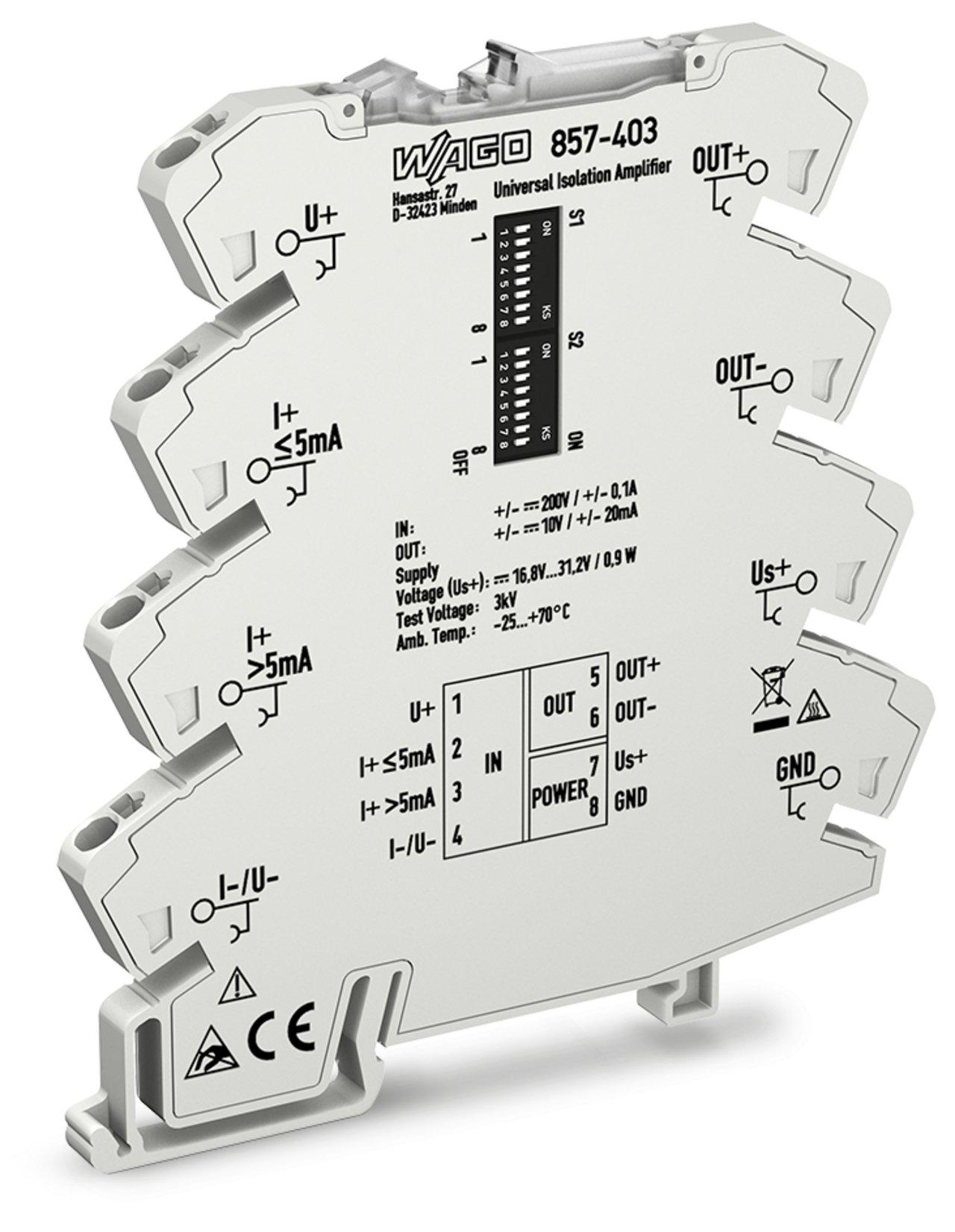

WAGO 857-403 857 Isolation Amplifier, 0 to 200 V Input, 2 to 10 V Output, 3 kV Power Rating
Part Number # 857-403
SKU # 2398472
Wago 857-403 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 857-403 |
| SKU #: | 2398472 |
| Dimensions: | 3.70 in H x 0.23 in W x 3.85 in D |
| Input Voltage: | 0 to 200 V |
| Series: | 857 |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Connection type: | Cage Clamp |
| Country of origin: | DE |
| Input current: | 0 to 100 mA |
| Mounting type: | 35 mm DIN Rail |
| Output current: | 4 to 20 mA |
| Output voltage: | 2 to 10 V |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04055144057850 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 857-403 857 Isolation Amplifier, 0 to 200 V Input, 2 to 10 V Output, 3 kV Power Rating
Brand: Wago
Part Number: 857-403
WAGO, 857-403, Isolation Amplifier, Series: 857, 0 to 200 V Input, 2 to 10 V Output, 0 to 100 mA Input Current, 4 to 20 mA Output Current, 3 kV Power, Cage Clamp Connection, 35 mm DIN Rail Mounting, -25 to 70 deg C, 3.70 in H x 0.23 in W x 3.85 in D Dimensions
Additional Description: WAGO-857-403 ISOLATION AMPLIFIER UI UI (BIP) 60449357
Catalog Description: Isolation amplifier; Current and voltage input signal; Bipolar current and voltage output signal; Configuration via DIP switch; Supply voltage: 24 VDC; 6 mm module width; 2,50 mm²
857-403 Item Features
- Current input overload protection via resettable fuse
- Calibrated measurement range switching for all 456 signals
- Unipolar/bipolar standard analog signals at both input/output
- Switchable limit frequency
- Clipping capabilityfor analog signal limitation to output end values
857-403 Standards
RoHS Compliant|EN 61010-1SKU #2398472Part Number #857-403UNSPSC43232306UPC04055144057850
