Part Number # 857-409
SKU # 2181438
Image Disclaimers Message
Brand: Wago
857-409

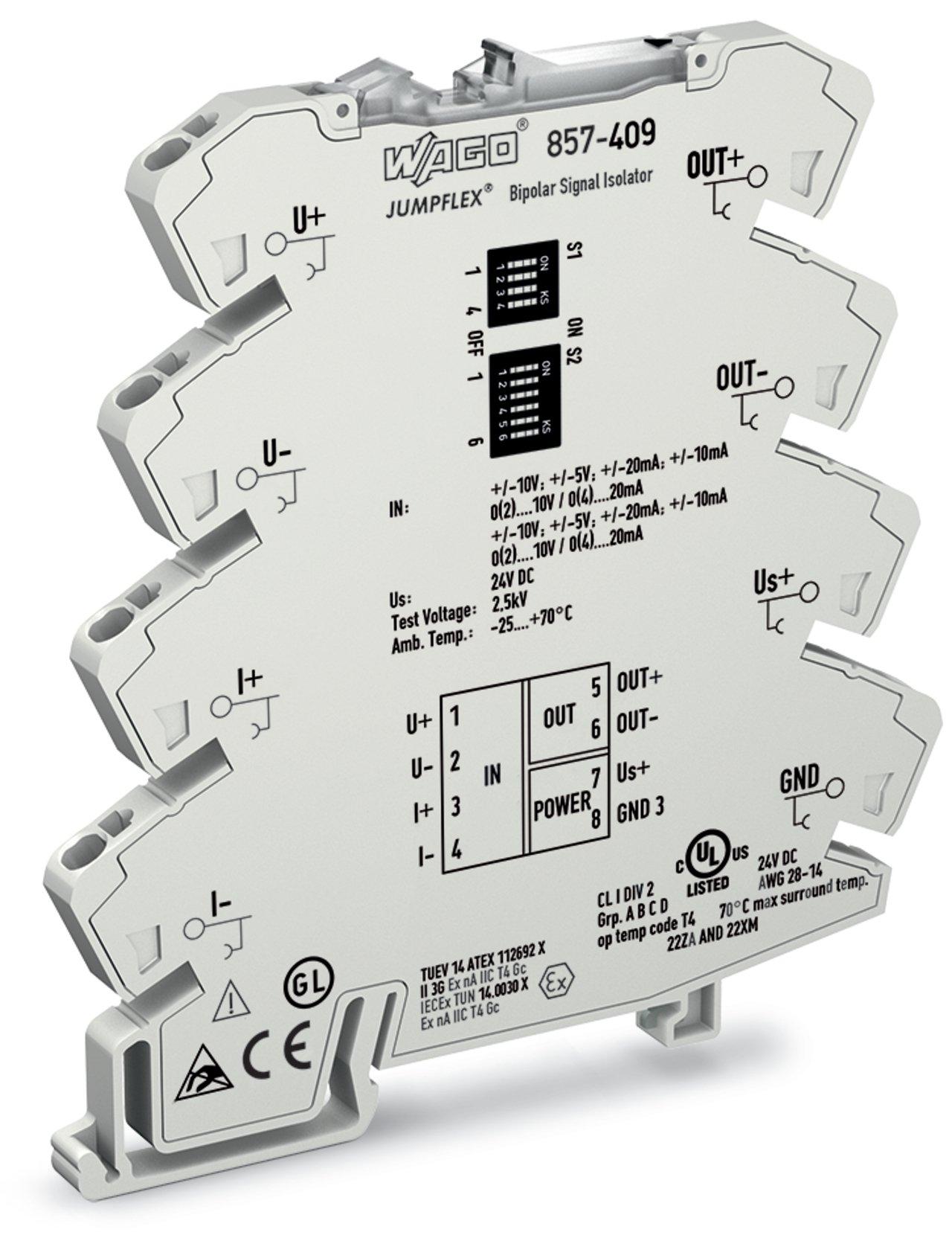

WAGO 857-409 JUMPFLEX signal conditioner
Part Number # 857-409
SKU # 2181438
$421.99 / Each
Typical price:$430.60 / Each
Wago 857-409 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 857-409 |
| SKU #: | 2181438 |
| Dimensions: | 3.701 in H x 0.236 in W x 3.85 in D |
| Input Voltage: | 32 V |
| Specifications: | 9 millimeter Length |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 94 mm / 3.701 inch |
| Input current: | 50 mA |
| Input signal (current): | ±10 mA; 0 … 10 mA; 2 … 10 mA; ±20 mA; 0 … 20 mA; 4 … 20 mA |
| Input signal (voltage): | ±5 V; 0 … 5 V; 1 … 5 V; ±10 V; 0 … 10 V; 2 … 10 V |
| Input signal type: | Voltage || Current |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Output signal (current): | ±10 mA; 0 … 10 mA; 2 … 10 mA; ±20 mA; 0 … 20 mA; 4 … 20 mA |
| Output signal (voltage): | ± 5 V; 0 … 5 V; 1 … 5 V; ± 10 V; 0 … 10 V |
| Output signal type: | Current || Voltage |
| Power consumption at nominal supply voltage: | ≤ 25 mA |
| Power supply type: | 24 VDC |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Supply voltage range: | ±30 % |
| Weight: | 38.400 g |
| Width: | 6 mm / 0.236 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04045454828493 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$421.99 / Each
Typical price:$430.60 / Each
Quantity:
WAGO 857-409 JUMPFLEX signal conditioner
Brand: Wago
Part Number: 857-409
Additional Description: WAGO-857-409 ISOLATION AMPLIFIER; BIPOLAR CURRENT AND VOLTAGE INPUT SIGNAL; BIPOLAR CURRENT AND VOLTAGE OUTPUT SIGNAL; ZERO/SPAN ADJUSTMENT; CONFIGURATION VIA DIP SWITCH; SUPPLY VOLTAGE: 24 VDC; 6 MM MODULE WIDTH; 2,50 MM 08570409
Catalog Description: Isolation amplifier; Bipolar current and voltage input signal; Bipolar current and voltage output signal; Zero/span adjustment; Configuration via DIP switch; Supply voltage: 24 VDC; 6 mm module width; 2,50 mm²
857-409 Item Features
- Overload protection of current input via resettable fuse
- Zero/span adjustment across the entire measurement range
- Calibrated measurement range switching
- Unipolar/bipolar standard analog signals at both input/output
- Switchable limit frequency
857-409 Standards
EN 61010-1|EN 61373|DNV|DNV|EN 61373|RoHS Compliant|CE|IP20SKU #2181438Part Number #857-409UNSPSC43232306UPC04045454828493
