Brand: Wago
857-413

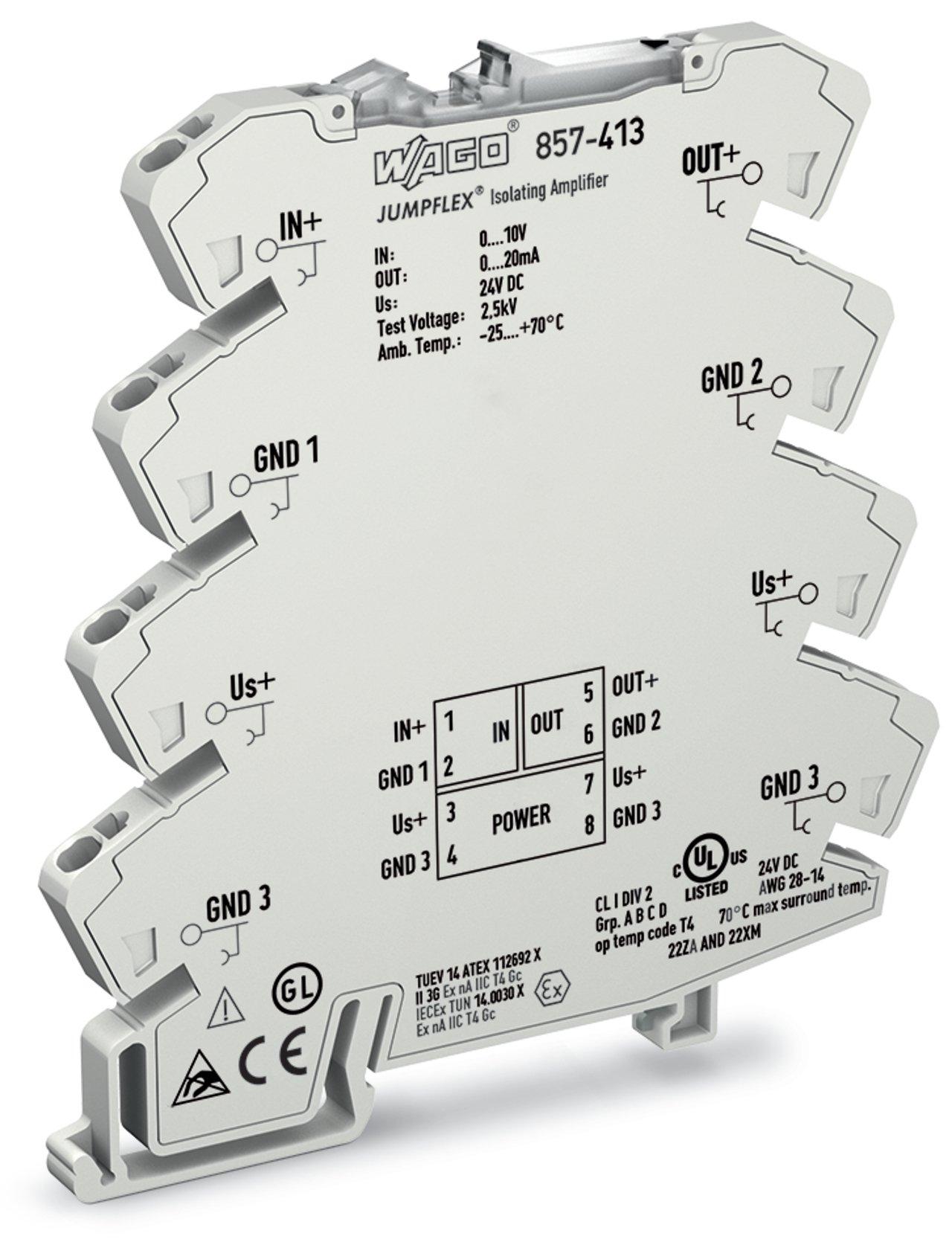

WAGO 857-413 JUMPFLEX signal conditioner
Part Number # 857-413
SKU # 2234020
$290.98 / Each
Wago 857-413 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 857-413 |
| SKU #: | 2234020 |
| Dimensions: | 3.701 in H x 0.236 in W x 3.85 in D |
| Input Voltage: | 30 V |
| Specifications: | 9 millimeter Length |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 94 mm / 3.701 inch |
| Input signal (voltage): | 0 … 10 V |
| Input signal type: | Voltage |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Output signal (current): | 0 … 20 mA |
| Output signal type: | Current |
| Power consumption at nominal supply voltage: | ≤ 25 mA |
| Power supply type: | 24 VDC |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Supply voltage range: | ±30 % |
| Weight: | 36.010 g |
| Width: | 6 mm / 0.236 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04045454609870 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$290.98 / Each
Quantity:
WAGO 857-413 JUMPFLEX signal conditioner
Brand: Wago
Part Number: 857-413
Additional Description: WAGO-857-413 ISOLATION AMPLIFIER; VOLTAGE INPUT SIGNAL; CURRENT OUTPUT SIGNAL; SUPPLY VOLTAGE: 24 VDC; 6 MM MODULE WIDTH; 2,50 MM 8570413 SIGNAL; CURRENT OUTPUT SIGNAL; WIDTH; 2,50 MM 0-20mA 08570413
Catalog Description: Isolation amplifier; Voltage input signal; Current output signal; Supply voltage: 24 VDC; 6 mm module width; 2,50 mm²
857-413 Item Features
- Input/output - current or voltage signal
857-413 Standards
EN 61010-1|UL 508|RoHS Compliant|CE|IP20SKU #2234020Part Number #857-413UNSPSC43232306UPC04045454609870
