Part Number # 857-415
SKU # 2234022
Image Disclaimers Message
Brand: Wago
857-415

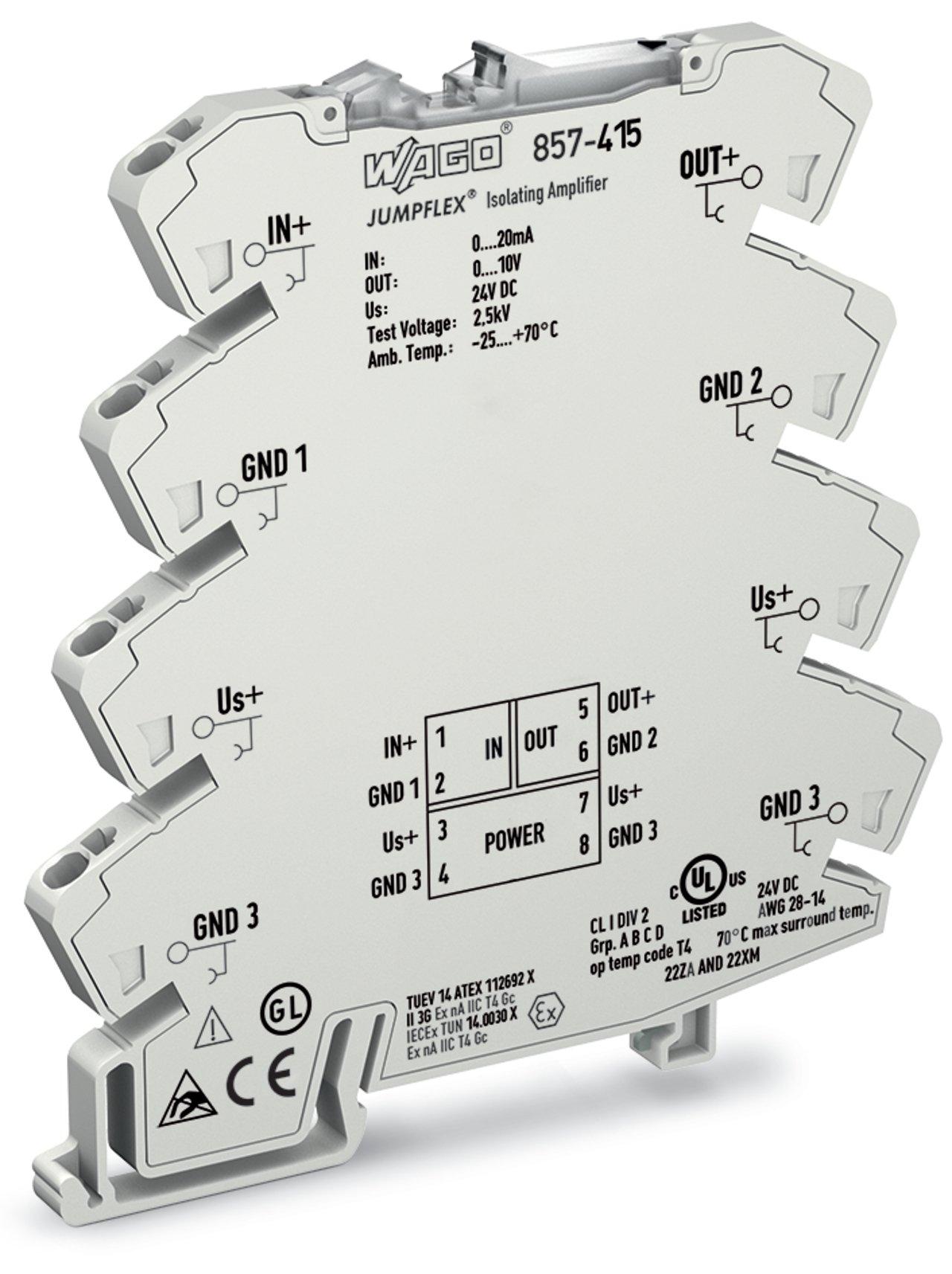

WAGO 857-415 JUMPFLEX signal conditioner
Part Number # 857-415
SKU # 2234022
$290.98 / Each
Wago 857-415 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 857-415 |
| SKU #: | 2234022 |
| Response Time: | 3.5 ms |
| Series: | 857 |
| Specifications: | 0.418 MJ Fire Load |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 94 mm / 3.701 inch |
| Input current: | 50 mA |
| Input signal (current): | 0 … 20 mA |
| Input signal type: | Current |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Output signal (voltage): | 0 … 10 V |
| Output signal type: | Voltage |
| Output voltage: | 0 to 10 V |
| Power consumption at nominal supply voltage: | ≤ 25 mA |
| Power supply type: | 24 VDC |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Supply voltage range: | ±30 % |
| Weight: | 35.310 g |
| Width: | 6 mm / 0.236 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04045454609856 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$290.98 / Each
Quantity:
WAGO 857-415 JUMPFLEX signal conditioner
Brand: Wago
Part Number: 857-415
Additional Description: WAGO-857-415 ISOLATION AMPLIFIER; CURRENT INPUT SIGNAL; VOLTAGE OUTPUT SIGNAL; SUPPLY VOLTAGE: 24 VDC; 6 MM MODULE WIDTH; 2,50 MM 8570415 SIGNAL; VOLTAGE OUTPUT SIGNAL; WIDTH; 2,50 MM 0-10V 08570415
Catalog Description: Isolation amplifier; Current input signal; Voltage output signal; Supply voltage: 24 VDC; 6 mm module width; 2,50 mm²
857-415 Standards
RoHS CompliantSKU #2234022Part Number #857-415UNSPSC43232306UPC04045454609856
