Part Number # 857-424
SKU # 2342961
Image Disclaimers Message
Brand: Wago
857-424

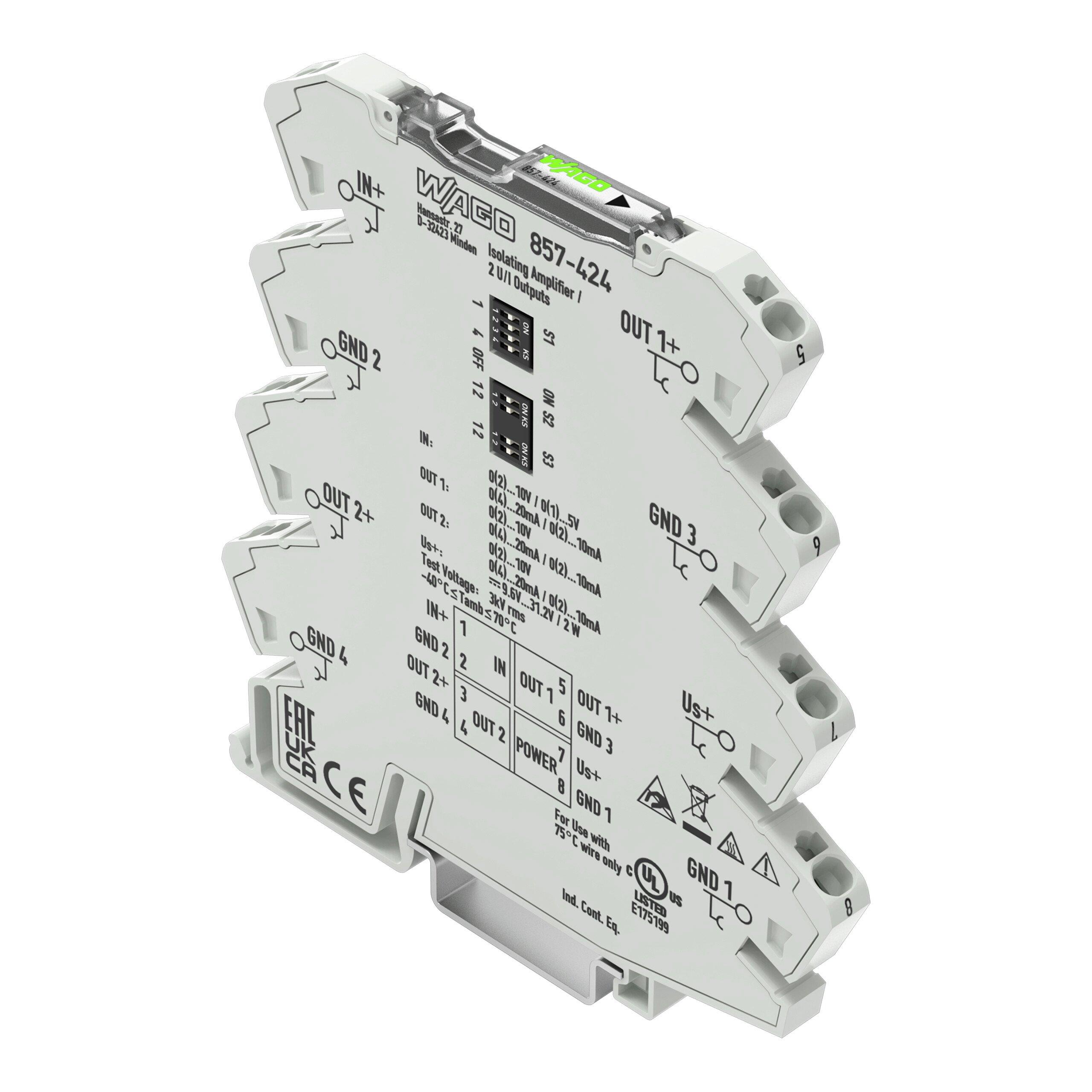

WAGO 857-424 Isolation amplifier
Part Number # 857-424
SKU # 2342961
$580.46 / Each
Wago 857-424 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 857-424 |
| SKU #: | 2342961 |
| Dimensions: | 3.701 in H x 0.236 in W x 3.85 in D |
| Input Voltage: | 30 V |
| Specifications: | 9 millimeter Length |
| Cable type: | Shielded cable |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 94 mm / 3.701 inch |
| Input current: | 50 mA |
| Input signal (current): | 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA |
| Input signal (voltage): | 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V |
| Input signal type: | Voltage || Current |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Output signal (current): | 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA (calibrated switching) |
| Output signal (voltage): | 0 … 10 V; 2 … 10 V |
| Output signal type: | Voltage || Current |
| Power consumption at nominal supply voltage: | ≤ 35 mA (typ.; ≤ 250 mA max.) |
| Power supply type: | 24 VDC |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Standards/Specifications: | EN 61010-1; EN 61373 |
| Supply voltage range: | -60 … +30 % |
| Weight: | 41.514 g |
| Width: | 6 mm / 0.236 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04055143595476 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$580.46 / Each
Quantity:
WAGO 857-424 Isolation amplifier
Brand: Wago
Part Number: 857-424
Additional Description: WAGO-857-424 ISOLATION AMPLIFIER; CURRENT AND VOLTAGE INPUT SIGNAL; SUPPLY VOLTAGE: 24 VDC; 6 MM MODULE WIDTH VOLTAGE AND CURRENT OUTPUT 60333875
Catalog Description: Isolation amplifier; Current and voltage input signal; Supply voltage: 24 VDC; 6 mm module width
857-424 Item Features
- Two configurable voltage/current outputs
- Switchable limit frequency
- 3-way electrical isolation with 2.5 kV test voltage
857-424 Standards
EN 61010-1|EN 50121-3-2|EN 50121-3-2|EN 61010-1|RoHS Compliant|CE|IP20SKU #2342961Part Number #857-424UNSPSC43232306UPC04055143595476
