Part Number # 857-450
SKU # 2302908
Image Disclaimers Message
857-450

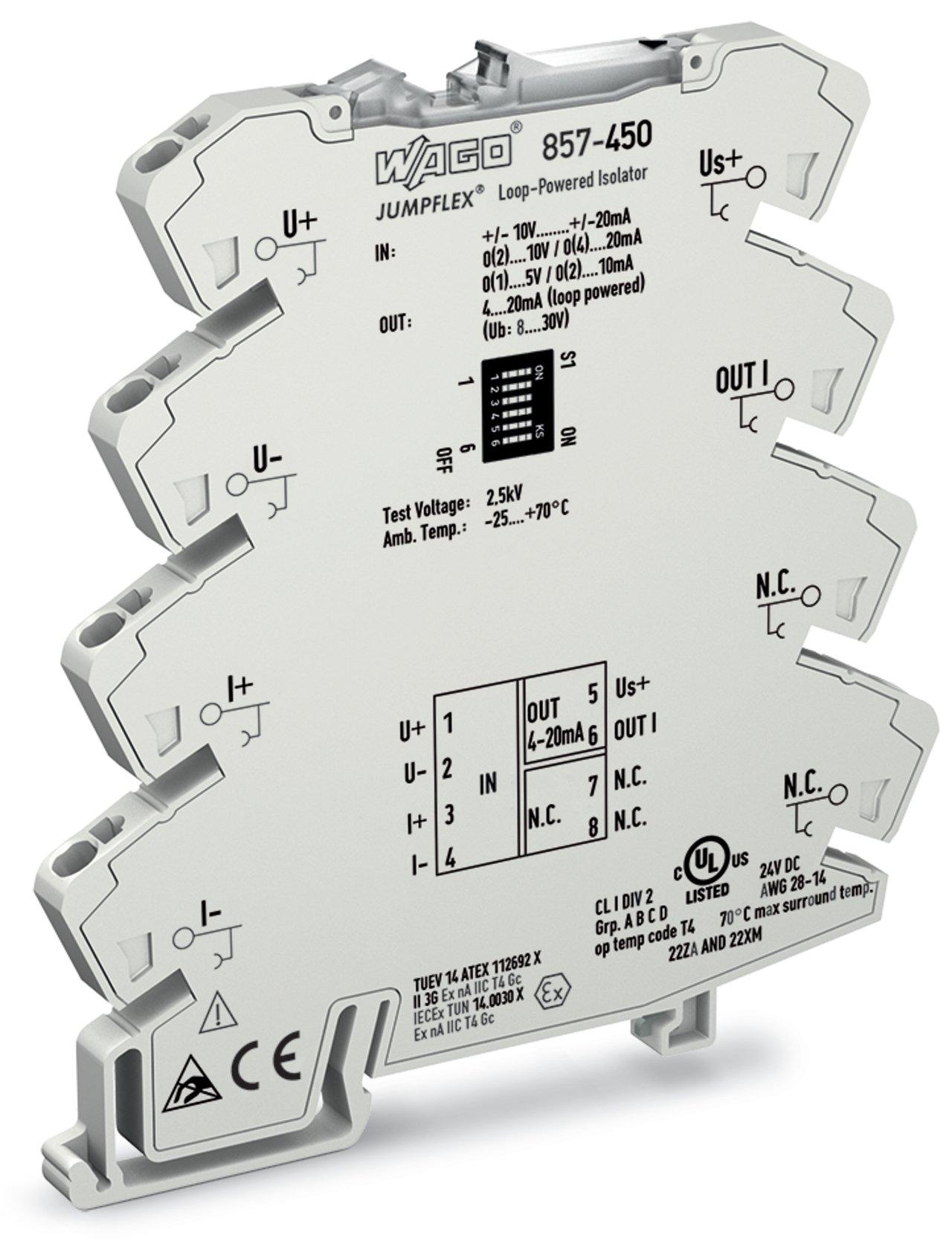

WAGO 857-450 JUMPFLEX signal conditioner
Part Number # 857-450
SKU # 2302908
$367.77 / Each
Wago 857-450 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 857-450 |
| SKU #: | 2302908 |
| Dimensions: | 3.701 in H x 0.236 in W x 3.85 in D |
| Input Voltage: | 8 to 30 V DC, 8 to 30 VDC |
| Response Time: | 3.5 ms |
| Series: | 857 |
| Specifications: | 0.363 MJ Fire Load, Spring Terminal |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Type: | Loop Powered |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 94 mm / 3.701 inch |
| Input current: | 50 mA |
| Input signal (current): | ±5 mA; 0 … 5 mA; ±10 mA; 0 … 10 mA; 2 … 10 mA; ±20 mA; 0 … 20 mA; 4 … 20 mA |
| Input signal (voltage): | ±1 V; 0 … 1 V; ±2 V; 0 … 2 V; ±5 V; 0 … 5 V; 1 … 5 V; ±10 V; 0 … 10 V; 2 … 10 V; ±20 V; 0 … 20 V |
| Input signal type: | Voltage || Current |
| Mounting type: | DIN Rail, DIN-35 rail |
| Output current: | 20 mA |
| Output signal (current): | 4 … 20 mA |
| Output signal type: | Current |
| Power supply type: | Loop-powered (via output) |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Supply voltage: | DC 8 … 30 V (Power is derived from the output circuit.) |
| Weight: | 37.904 g |
| Width: | 6 mm / 0.236 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04045454828479 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$367.77 / Each
Quantity:
- WAGO, 857-450, Amplifier, Loop Powered, Series: 857, 8 to 30 V DC Input, 50 mA Input Current, 20 mA Output Current, Push-In Connection, DIN Rail Mounting, -25 to 70 deg C, 3.5 ms Response, Specifications: 0.363 MJ Fire Load, Spring Terminal, 3.701 in H x 0.236 in W x 3.85 in D Dimensions
857-450 Standards
RoHS Compliant|IP20|CESKU #2302908Part Number #857-450UNSPSC43232306UPC04045454828479
