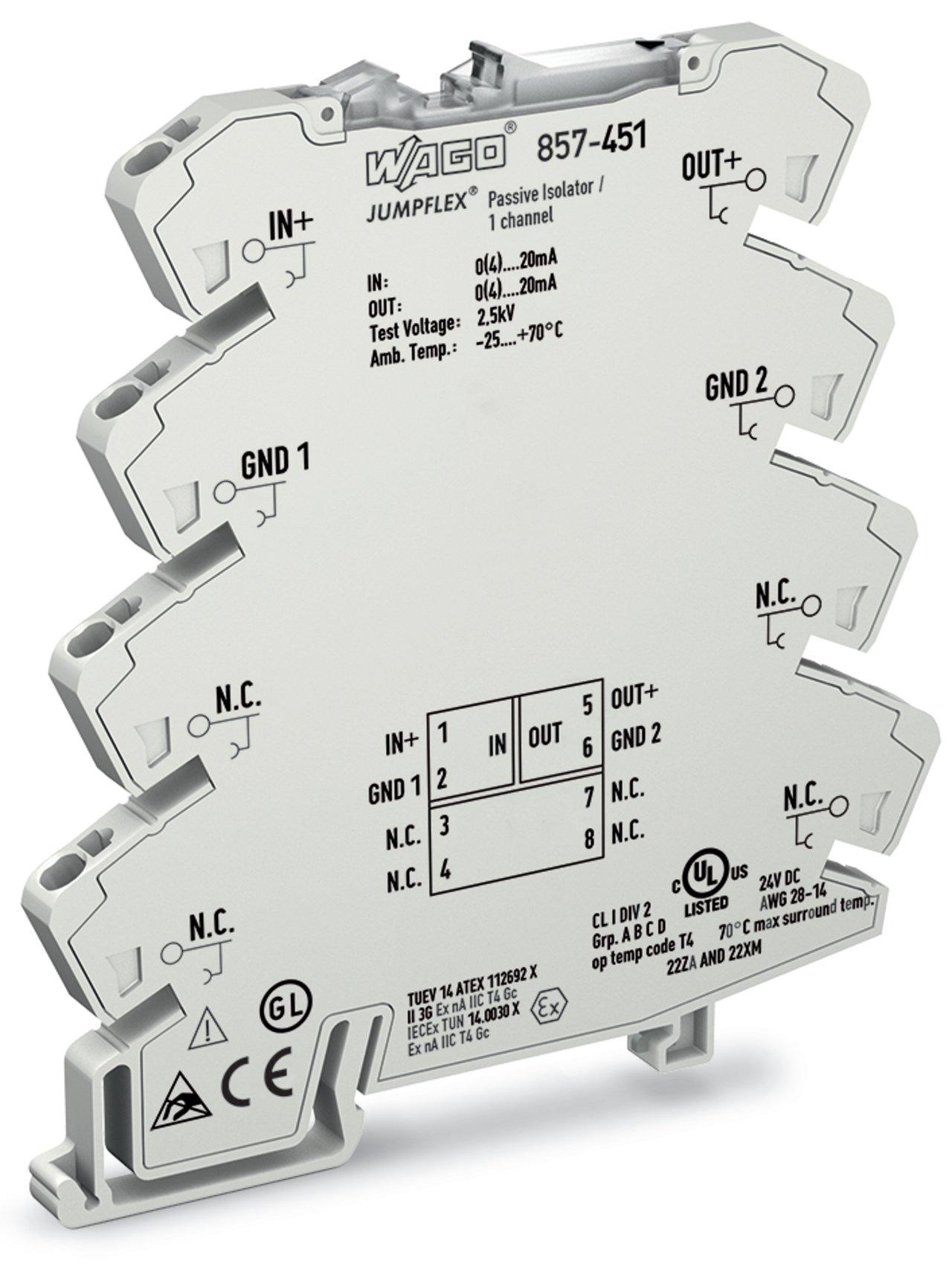

WAGO 857-451 JUMPFLEX signal conditioner
Part Number # 857-451
SKU # 2149792
$302.72 / Each
Wago 857-451 Key Features
Brand: | Wago |
---|---|
Part Number # : | 857-451 |
SKU #: | 2149792 |
Dimensions: | 3.701 in H x 0.236 in W x 3.85 in D |
Input Voltage: | 20 V |
Specifications: | 9 millimeter Length |
Cable type: | Shielded cable |
Connection technology: | Push-in CAGE CLAMP® |
Connection type: | Push-In |
Country of origin: | DE |
Depth: | 94 mm / 3.701 inch |
Input current: | 40 mA |
Input signal (current): | 0 … 20 mA; 4 … 20 mA |
Input signal type: | Current |
Mounting type: | 35 mm DIN Rail, DIN-35 rail |
Output signal (current): | 0 … 20 mA; 4 … 20 mA |
Output signal type: | Current |
Power supply type: | Passive (via input) |
Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
Standards/Specifications: | EN 61010-1 |
Weight: | 34.200 g |
Width: | 6 mm / 0.236 inch |
Manufacturer Name: | WAGO Corporation |
UNSPSC: | 43232306 |
UPC: | 04045454471323 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$302.72 / Each
Quantity:
WAGO 857-451 JUMPFLEX signal conditioner
Brand: Wago
Part Number: 857-451
Additional Description: WAGO-857-451 PASSIVE ISOLATOR, 1-CHANNEL; CURRENT INPUT SIGNAL; CURRENT OUTPUT SIGNAL; POWER VIA INPUT; 6 MM MODULE WIDTH; 2,50 MM POWERED POWER 08570451
Catalog Description: Passive isolator, 1-channel; Current input signal; Current output signal; Power via input; 6 mm module width; 2,50 mm²
857-451 Item Features
- No additional supply voltage required
857-451 Standards
EN 61010-1|DNV|EN 61010-1|DNV|EN 61010-1|RoHS Compliant|CE|IP20SKU #2149792Part Number #857-451UNSPSC43232306UPC04045454471323
