Part Number # 857-452
SKU # 2149793
Image Disclaimers Message
Brand: Wago
857-452

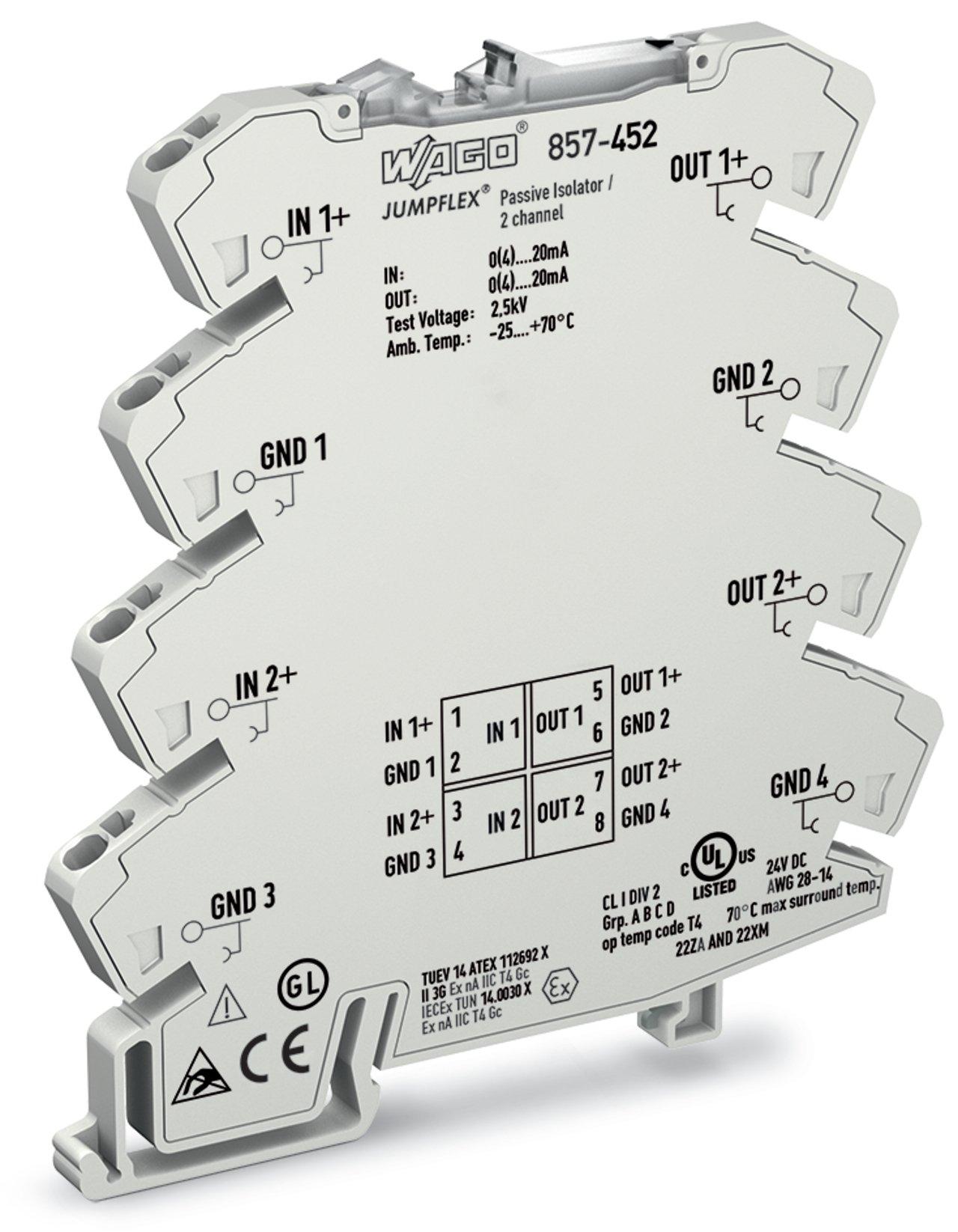

WAGO 857-452 JUMPFLEX signal conditioner
Part Number # 857-452
SKU # 2149793
$490.32 / Each
Wago 857-452 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 857-452 |
| SKU #: | 2149793 |
| Dimensions: | 3.701 in H x 0.236 in W x 3.85 in D |
| Input Voltage: | 20 V |
| Specifications: | 9 millimeter Length |
| Cable type: | Shielded cable |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 94 mm / 3.701 inch |
| Input current: | 40 mA |
| Input signal (current): | 0 … 20 mA; 4 … 20 mA |
| Input signal type: | Current |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Output signal (current): | 0 … 20 mA; 4 … 20 mA |
| Output signal type: | Current |
| Power supply type: | Passive (via input) |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Standards/Specifications: | EN 61010-1 |
| Weight: | 62.000 g |
| Width: | 6 mm / 0.236 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04045454471354 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$490.32 / Each
Quantity:
WAGO 857-452 JUMPFLEX signal conditioner
Brand: Wago
Part Number: 857-452
Additional Description: WAGO-857-452 PASSIVE ISOLATOR, 2-CHANNEL; CURRENT INPUT SIGNAL; 2 X CURRENT OUTPUT SIGNAL; POWER VIA INPUT; 6 MM MODULE WIDTH; 2,50 MM POWERED POWER 08570452
Catalog Description: Passive isolator, 2-channel; Current input signal; 2 x current output signal; Power via input; 6 mm module width; 2,50 mm²
857-452 Item Features
- No additional supply voltage required
857-452 Standards
EN 61010-1|DNV|EN 61010-1|DNV|EN 61010-1|RoHS Compliant|CE|IP20SKU #2149793Part Number #857-452UNSPSC43232306UPC04045454471354
