Part Number # 857-604
SKU # 2325685
Image Disclaimers Message
Wago 857-604 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 857-604 |
| SKU #: | 2325685 |
| Amperage Rating: | 6 A |
| Dimensions: | 3.701 in H x 0.236 in W x 3.189 in D |
| Enclosure Type: | IP20 |
| Indicator: | Yellow LED |
| Temperature Rating (Degrees F): | -25 to 50 deg C |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 94 mm / 3.701 inch |
| Material: | Polyamide |
| Mechanical life: | 5 x 106 switching operations |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of changeover/switchover contacts: | 1 |
| Protection type: | IP20 |
| Rated voltage: | 250 V |
| Reset time: | 50 ms |
| Solid conductor: | 0.34 … 2.5 mm² / 22 … 14 AWG |
| Standards/Specifications: | EN 61812-1; EN 61373; EN 50121-3-2; UL 508 |
| Status indicator: | Yellow LED |
| Switching capacity: | AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V |
| Time range: | Adjustable: 0.1 … 10 s; 3 … 300 s; 0.3 … 30 min; 3 … 300 min |
| Weight: | 24.876 g |
| Width: | 6 mm / 0.236 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04050821565673 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$103.48 / Each
Quantity:

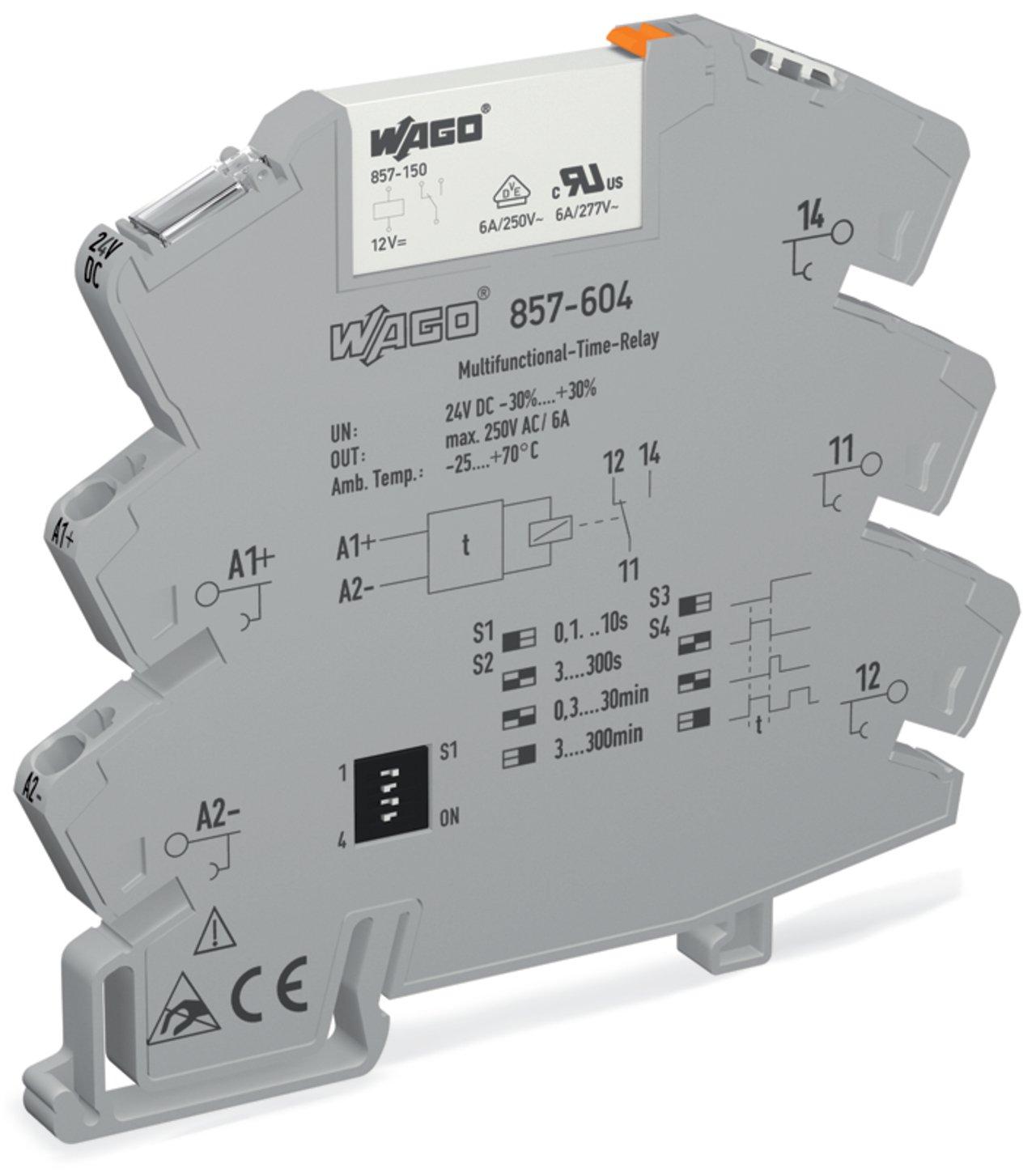

- WAGO, 857-604, Time Relay Module, 24 V DC, 6 A, Yellow LED Indicator, -25 to 50 deg C, Push-In Connection, IP20 Enclosure, 35 mm DIN Rail Mounting, Polyamide, Gray, 3.701 in H x 0.236 in W x 3.189 in D Dimensions
857-604 Item Features
- 4 functions
- Function and time range adjustable via DIP switch
857-604 Standards
EN 61812-1|EN 61373|EN 50121-3-2|UL 508|RoHS Compliant|IP20SKU #2325685Part Number #857-604UNSPSC43232306UPC04050821565673
