Part Number # 857-640
SKU # 2326827
Image Disclaimers Message
Brand: Wago
857-640

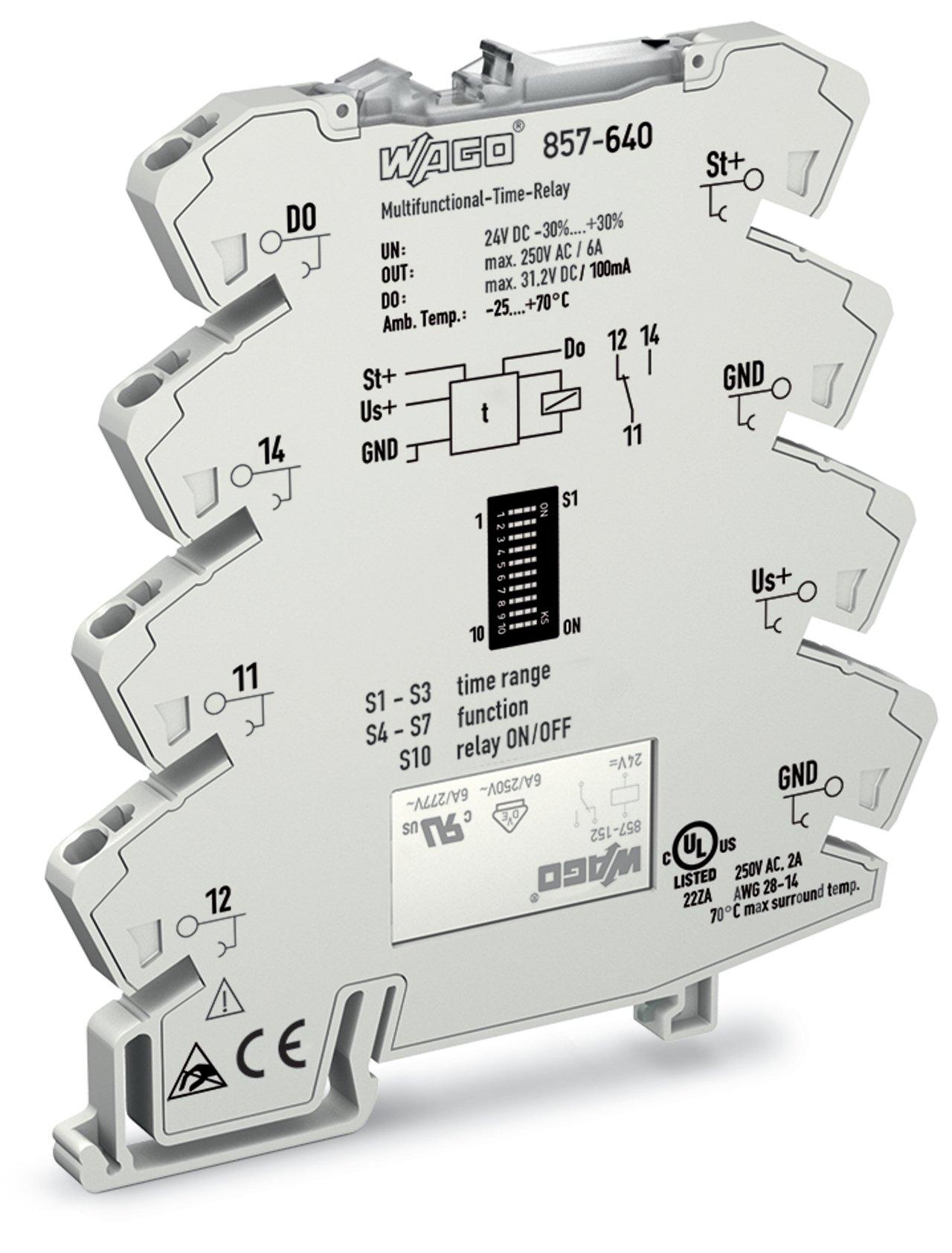

WAGO 857-640 Timer relay module
Part Number # 857-640
SKU # 2326827
$203.11 / Each
Wago 857-640 Key Features
Brand: Wago
Part Number # 857-640
SKU #2326827
Amperage Rating: 6 A
Dimensions: 3.701 in H x 0.236 in W x 3.85 in D
Enclosure Type: IP20
Indicator: Yellow LED
Temperature Rating (Degrees F): -25 to 50 deg C
Voltage Rating: 24 VDC
Connection technology: Push-in CAGE CLAMP®
Connection type: Push-In
Country of origin: DE
Depth: 94 mm / 3.701 inch
Digital output (DO): UN - 1 V ; 100 mA
Material: Polyamide
Mechanical life: 5 x 106 switching operations
Mounting type: 35 mm DIN Rail, DIN-35 rail
Number of changeover/switchover contacts: 1
Protection type: IP20
Rated voltage: 250 V
Reset time: 50 ms
Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
Standards/Specifications: EN 61812-1; EN 61373; EN 50121-3-2; UL 508
Status indicator: Yellow LED
Switching capacity: AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V
Time range: Adjustable: 0.01 … 0.1 s; 0.1 … 1 s; 1 … 10 s; 10 … 100 s; 1 … 10 min; 10 … 100 min; 1 … 10 h; 10 … 100 h
Weight: 33.221 g
Width: 6 mm / 0.236 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 43232306
UPC: 04050821565703
$203.11 / Each
WAGO 857-640 Timer relay module
Brand: Wago
Part Number: 857-640
Additional Description: WAGO-857-640 MULTIFUNCTION TIMING RELAY WITH 1 CHANGEOVER CONTACT (1U); 8 TIEM RANGES; 14 FUNCTIONS; TEMPERATURE RANGE: -25 C ... +70 C; FOR RAILWAY OPERATIONS 8570640
Catalog Description: Timer relay module; Nominal input voltage: 24 VDC; Limiting continuous current: 6 A; Railway; Multifunction/Multitime; Yellow status indicator; Module width: 6 mm
857-640 Item Features
- Function and time range adjustable via DIP switch
- Push/slide switch for fine-tuning the times
857-640 Standards
EN 61373|EN 50121-3-2|UL 508|EN 61010-2-201|RoHS Compliant|IP20SKU #2326827Part Number #857-640UNSPSC43232306UPC04050821565703
