Part Number # 857-708
SKU # 2234027
857-708
WAGO 857-708 Solid-state relay module
Part Number # 857-708
SKU # 2234027
Wago 857-708 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 857-708 |
| SKU #: | 2234027 |
| Amperage Rating: | 0.1 A |
| Dimensions: | 3.701 in H x 0.236 in W x 3.189 in D |
| Enclosure Type: | IP20 |
| Indicator: | Yellow LED |
| Temperature Rating (Degrees F): | -25 to 50 deg C |
| Circuit type: | 2-wire connection |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 94 mm / 3.701 inch |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Output voltage range: | DC 0 … 48 V |
| Protection type: | IP20 |
| Solid conductor: | 0.34 … 2.5 mm² / 22 … 14 AWG |
| Standards/Specifications: | EN 61000-6-2; EN 61000-6-3; EN 61373; EN 61010-2-201; UL 508 |
| Status indicator: | Yellow LED |
| Switching current (min.): | 50 µA |
| Switching frequency: | ≤ 20 Hz |
| Turn-off time: | ≤ 10 ms |
| Turn-on time: | ≤ 4.5 ms |
| Weight: | 30.700 g |
| Width: | 6 mm / 0.236 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04045454835514 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

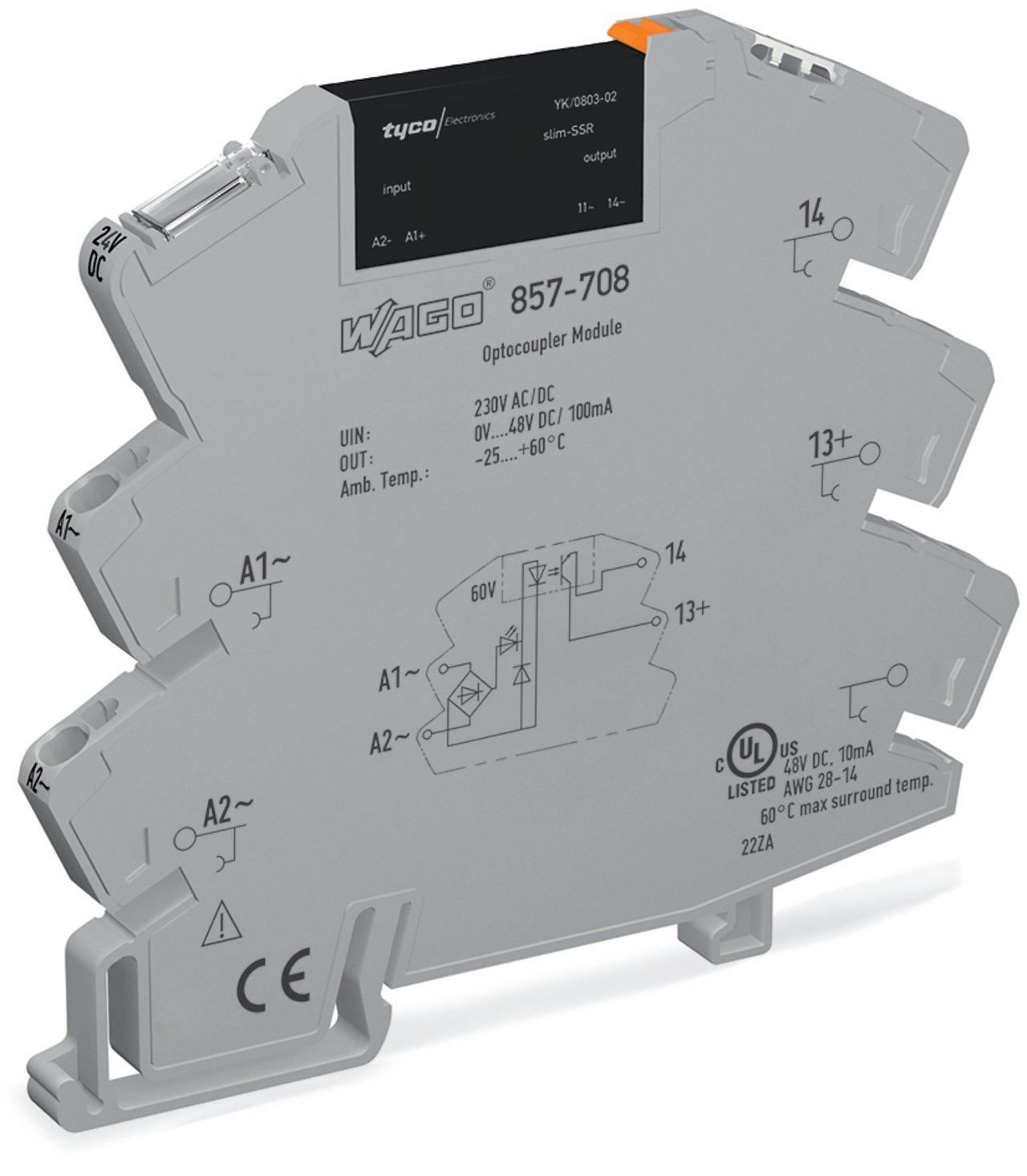

WAGO 857-708 Solid-state relay module
Brand: Wago
Part Number: 857-708
Additional Description: WAGO-857-708 SOLID-STATE RELAY MODULE; NOMINAL INPUT VOLTAGE: 230 V AC/DC; OUTPUT VOLTAGE RANGE: 0 48 VDC; LIMITING CONTINUOUS CURRENT: 0.1 A; 2-WIRE CONNECTION; YELLOW STATUS INDICATOR; MODULE WIDTH: 6 MM; GRAY 8570708 dicatormodlwidth 6mm GRA INPUT VOLTAGE: 230 V AC/DC; OUTPUT VOLTAGE RANGE: 0 48 VDC; LIMITING CONTINUOUS CURRENT: 0.1 A; 2-WIRE CONNECTION; YELLOW STATUS INDICATOR; MODULE WIDTH: 6 MM; GRAY OUT 08570708
Catalog Description: Solid-state relay module; Nominal input voltage: 230 V AC/DC; Output voltage range: 0 … 48 VDC; Limiting continuous current: 0.1 A; 2-wire connection; Yellow status indicator; Module width: 6 mm; gray
857-708 Standards
EN 61000-6-2|EN 61000-6-3|EN 61373|EN 61010-2-201|UL 508|RoHS Compliant|IP20SKU #2234027Part Number #857-708UNSPSC43232306UPC04045454835514
Image provided may only be a representation of final product and may include optional equipment
