Brand: Wago
857-714

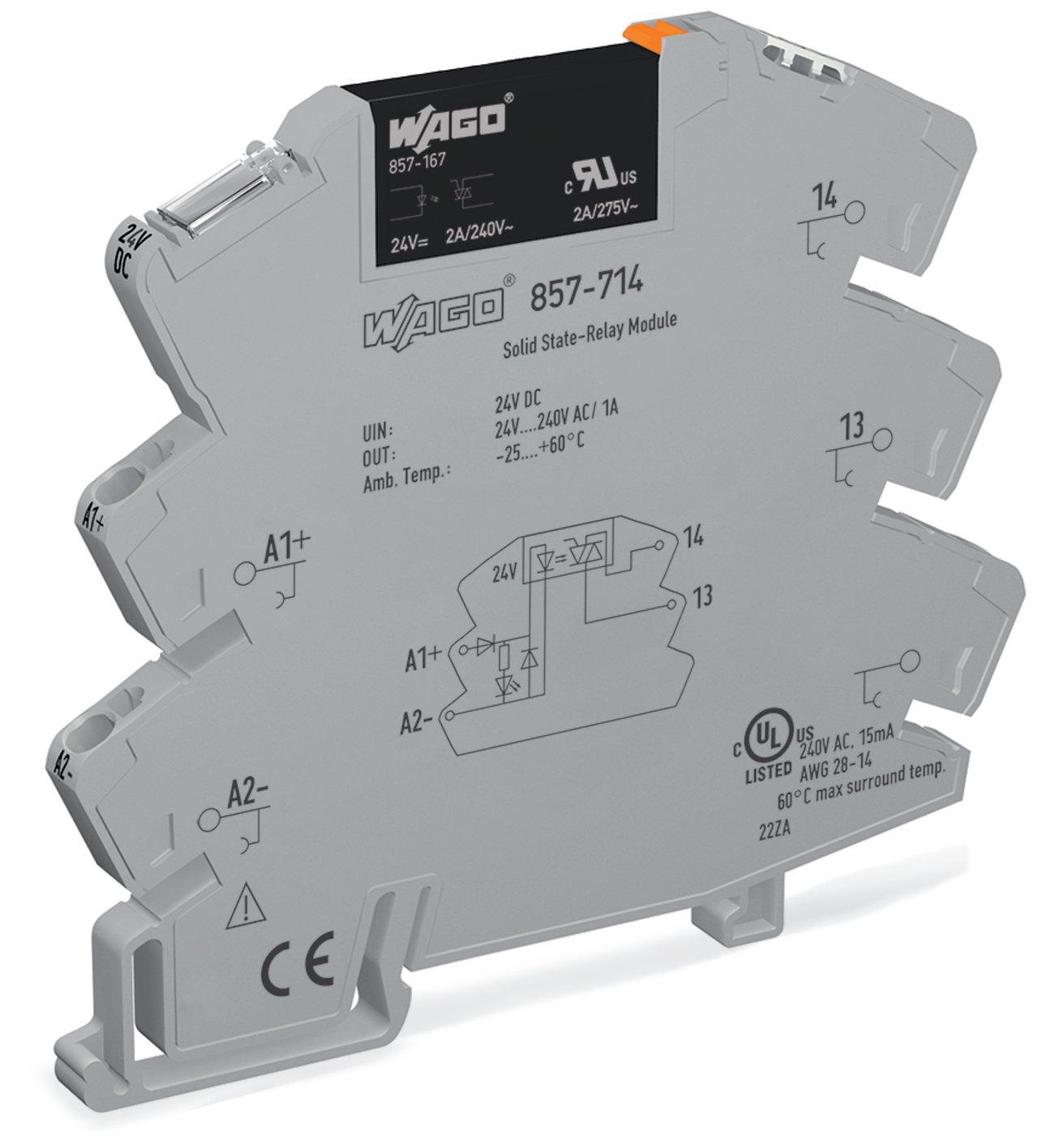

WAGO 857-714 Solid-state relay module
Part Number # 857-714
SKU # 2234028
$59.18 / Each
Wago 857-714 Key Features
Brand: Wago
Part Number # 857-714
SKU #2234028
Amperage Rating: 2 A
Dimensions: 3.701 in H x 0.236 in W x 3.189 in D
Enclosure Type: IP20
Indicator: Yellow LED
Temperature Rating (Degrees F): -25 to 50 deg C
Voltage Rating: 24 VDC
Circuit type: 2-wire connection || Zero-voltage switching
Color: Gray
Connection technology: Push-in CAGE CLAMP®
Connection type: Push-In
Country of origin: CN
Depth: 94 mm / 3.701 inch
Material: Polyamide
Mounting type: 35 mm DIN Rail, DIN-35 rail
Output voltage range: AC 24 … 240 V
Protection type: IP20
Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
Standards/Specifications: EN 61000-6-2; EN 61000-6-3; EN 61373; EN 61010-2-201; UL 508
Status indicator: Yellow LED
Switching current (min.): 22 mA
Switching frequency: 50 Hz / 60 Hz
Turn-off time: ≤ 10 ms
Turn-on time: ≤ 10 ms
Weight: 28.622 g
Width: 6 mm / 0.236 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 43232306
UPC: 04045454835545
$59.18 / Each
SKU # 2234028
Part Number # 857-714
WAGO 857-714 Solid-state relay module
Brand: Wago
Part Number: 857-714
Additional Description: WAGO-857-714 24VDC OP 24 240VAC 8570714 YLwstatus dicatormodlwidth 6mm GRA
Catalog Description: Solid-state relay module; Nominal input voltage: 24 VDC; Output voltage range: 24 … 240 VAC; Limiting continuous current: 2 A; 2-wire connection; zero-cross switching; Yellow status indicator; Module width: 6 mm; gray
857-714 Standards
EN 61000-6-2|EN 61000-6-3|EN 61373|EN 61010-2-201|UL 508|RoHS Compliant|IP20SKU #2234028Part Number #857-714UNSPSC43232306UPC04045454835545
