Part Number # 857-728
SKU # 2222837
Image Disclaimers Message
857-728

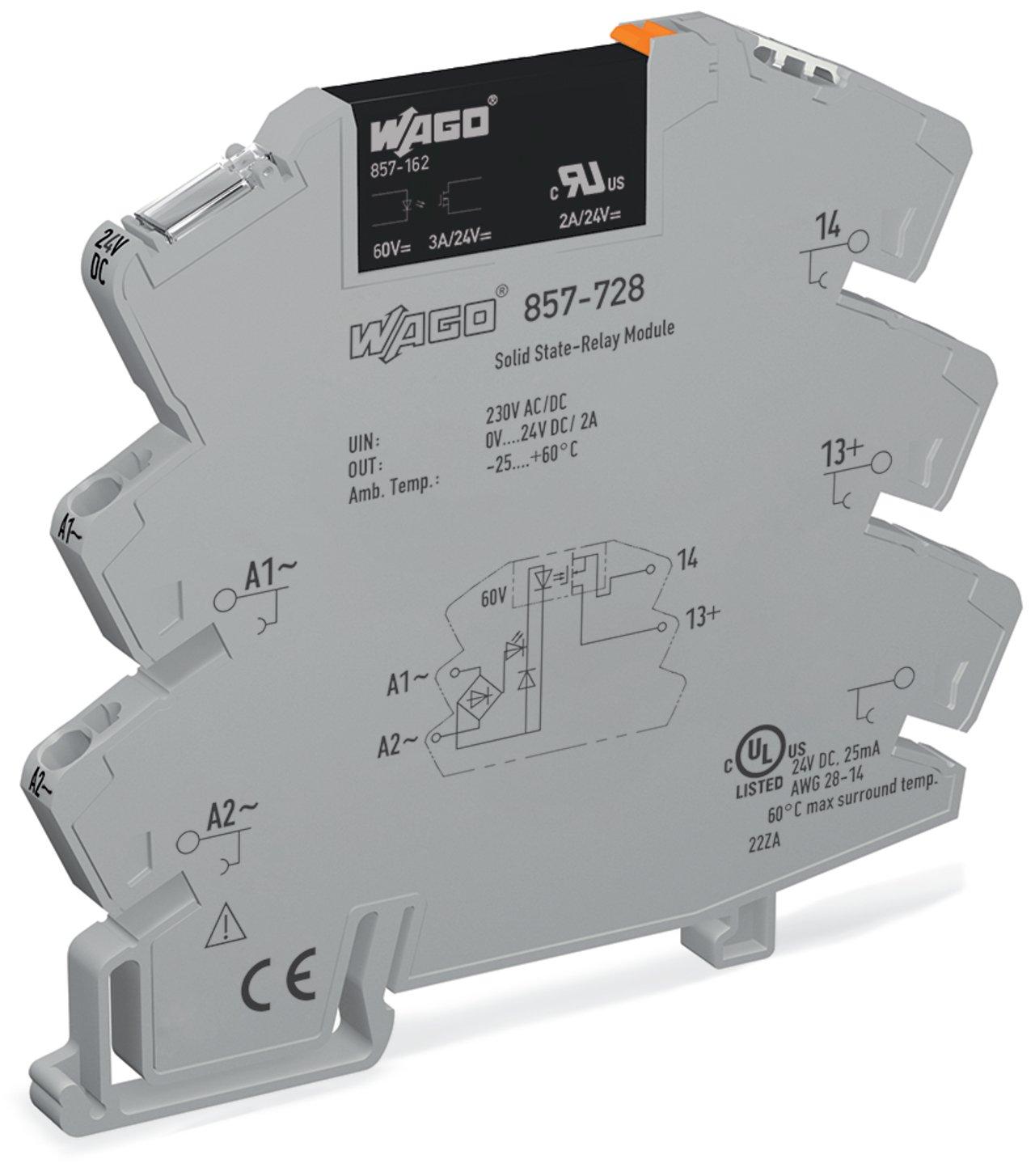

WAGO 857-728 Solid-state relay module
Part Number # 857-728
SKU # 2222837
$68.69 / Each
Wago 857-728 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 857-728 |
| SKU #: | 2222837 |
| Amperage Rating: | 3 A |
| Dimensions: | 3.701 in H x 0.236 in W x 3.189 in D |
| Enclosure Type: | IP20 |
| Indicator: | Yellow LED |
| Temperature Rating (Degrees F): | -25 to 50 deg C |
| Circuit type: | 2-wire connection |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 94 mm / 3.701 inch |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Output voltage range: | DC 0 … 30 V |
| Protection type: | IP20 |
| Solid conductor: | 0.34 … 2.5 mm² / 22 … 14 AWG |
| Standards/Specifications: | EN 61000-6-2; EN 61000-6-3; EN 61373; EN 61010-2-201; UL 508 |
| Status indicator: | Yellow LED |
| Switching current (min.): | 50 µA |
| Switching frequency: | ≤ 20 Hz |
| Turn-off time: | ≤ 10 ms |
| Turn-on time: | ≤ 4.5 ms |
| Weight: | 31.000 g |
| Width: | 6 mm / 0.236 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04045454835484 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$68.69 / Each
Quantity:
- WAGO, 857-728, Solid-State Relay Module, 230 V AC/DC, 3 A, Yellow LED Indicator, -25 to 50 deg C, Push-In Connection, IP20 Enclosure, 35 mm DIN Rail Mounting, Polyamide, Gray, 3.701 in H x 0.236 in W x 3.189 in D Dimensions
857-728 Standards
EN 61000-6-2|EN 61000-6-3|EN 61373|EN 61010-2-201|UL 508|RoHS Compliant|IP20SKU #2222837Part Number #857-728UNSPSC43232306UPC04045454835484
