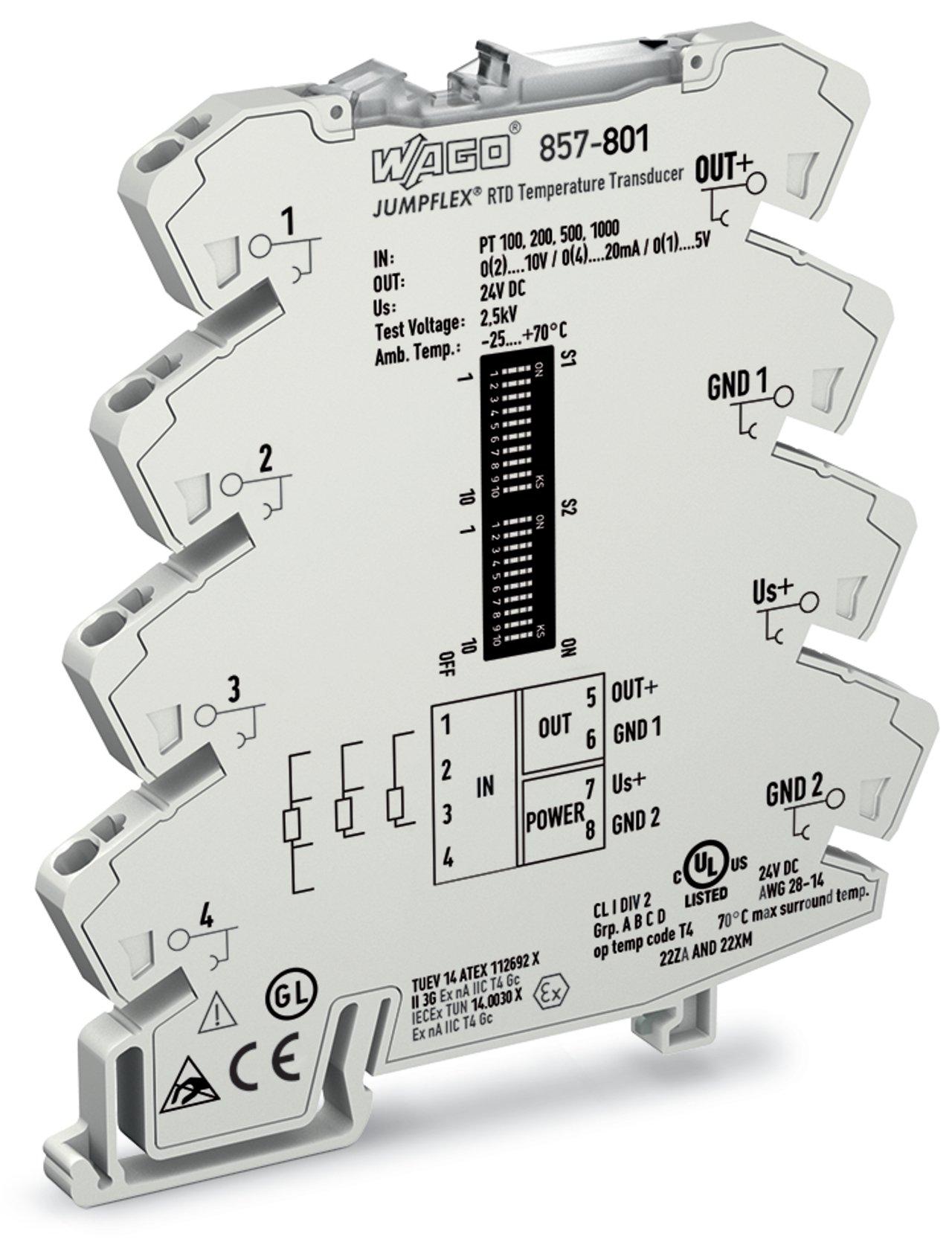

WAGO 857-801 JUMPFLEX signal conditioner
Part Number # 857-801
SKU # 2182587
$400.62 / Each
Wago 857-801 Key Features
Brand: Wago
Part Number # 857-801
SKU #2182587
Dimensions: 3.701 in H x 0.236 in W x 3.85 in D
Input Type: RTD
Input Voltage: 24 VDC
Temperature Rating (Degrees F): -25 to 70 deg C
Color: Light gray
Connection technology: Push-in CAGE CLAMP®
Connection type: Push-In
Country of origin: DE
Depth: 94 mm / 3.701 inch
Input signal type: Pt sensors || Resistor
Material: Polyamide (PA66)
Measurement span (RTD) (min.): 50 K
Mounting type: 35 mm DIN Rail, DIN-35 rail
Output signal (current): 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA
Output signal (voltage): 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V
Output signal type: Current || Voltage
Power consumption at nominal supply voltage: ≤ 40 mA
Power supply type: 24 VDC
Sensor connection: 2-wire; 3-wire; 4-wire (switchable)
Sensor power supply (RTD) (max.): ≤ 0.5 mA
Sensor types (RTD): Pt100 || Pt200 || Pt500 || Pt1000
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Supply voltage range: ±30 %
Weight: 35.100 g
Width: 6 mm / 0.236 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 43232306
UPC: 04045454502713
$400.62 / Each
WAGO 857-801 JUMPFLEX signal conditioner
Brand: Wago
Part Number: 857-801
Additional Description: WAGO-857-801 TEMPERATURE SIGNAL CONDITIONER FOR RTD SENSORS; CURRENT AND VOLTAGE OUTPUT SIGNAL; CONFIGURATION VIA SOFTWARE; SUPPLY VOLTAGE: 24 VDC; 6 MM MODULE WIDTH; LIGHT GRAY 8570801 6mmmodlwidth LtGRA RTD SENSORS; CURRENT AND VOLTAGE OUTPUT SIGNAL; CONFIGURATION VIA SOFTWARE; SUPPLY VOLTAGE: 24 VDC; 6 MM MODULE WIDTH; LIGHT GRAY 08570801
Catalog Description: Temperature signal conditioner for RTD sensors; Current and voltage output signal; Configuration via software; Supply voltage: 24 VDC; 6 mm module width; light gray
857-801 Item Features
- PC configuration interface
- For Pt100, Pt200, Pt500 and Pt1000 sensors, as well as resistors up to 4.5 kOhm
- 2-, 3- and 4-wire connection technology
- Detects calibrated measurement range switching
- Detects a sensor wire break/short circuit
- Detects measurement range underflo with overflow
- Clipping capability for analog signal limitation to output end values
- For Pt100, Pt200, Pt500, Pt1000 Sensors
857-801 Standards
DNV|DNV|RoHS Compliant|CE|IP20SKU #2182587Part Number #857-801UNSPSC43232306UPC04045454502713
