Part Number # 857-811
SKU # 2194810
Image Disclaimers Message
Brand: Wago
857-811

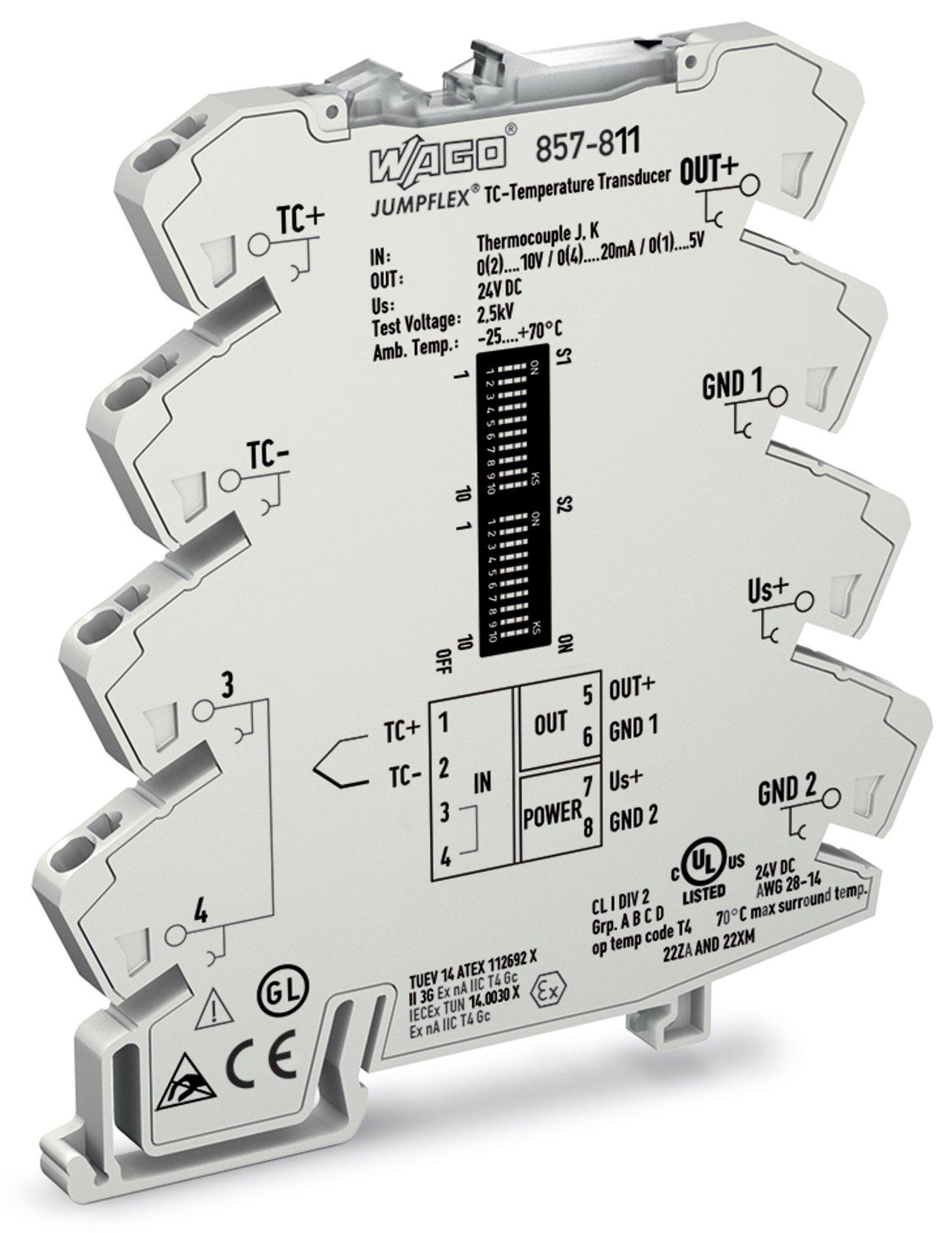

WAGO 857-811 JUMPFLEX signal conditioner
Part Number # 857-811
SKU # 2194810
$438.09 / Each
Wago 857-811 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 857-811 |
| SKU #: | 2194810 |
| Dimensions: | 3.701 in H x 0.236 in W x 3.85 in D |
| Input Voltage: | 24 V DC, 24 VDC |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Color: | Light gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 94 mm / 3.701 inch |
| Input signal type: | TC sensors |
| Material: | Polyamide (PA66) |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Output signal (current): | 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA |
| Output signal (voltage): | 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V |
| Output signal type: | Current || Voltage |
| Power consumption at nominal supply voltage: | ≤ 40 mA |
| Power supply type: | 24 VDC |
| Sensor types (TC): | Type J || Type K |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Supply voltage range: | ±30 % |
| Weight: | 36.000 g |
| Width: | 6 mm / 0.236 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04045454502751 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$438.09 / Each
Quantity:
- WAGO, 857-811, 24 V DC Input, Push-In Connection, 35 mm DIN Rail Mounting, -25 to 70 deg C, Polyamide (PA66), Light Gray, 3.701 in H x 0.236 in W x 3.85 in D Dimensions
857-811 Item Features
- PC configuration interface
- For thermocouples of type J and K (E, R, N, S, T, B, C)
- Cold junction compensation (On/Off)
- Calibrated measurement range switching
- Detects a sensor wire break
- Detects measurement range underflo with overflow
- Clipping capability for analog signal limitation to output end values
- For Type J, Type K
857-811 Standards
DNV|DNV|RoHS Compliant|CE|IP20SKU #2194810Part Number #857-811UNSPSC43232306UPC04045454502751
