857-815

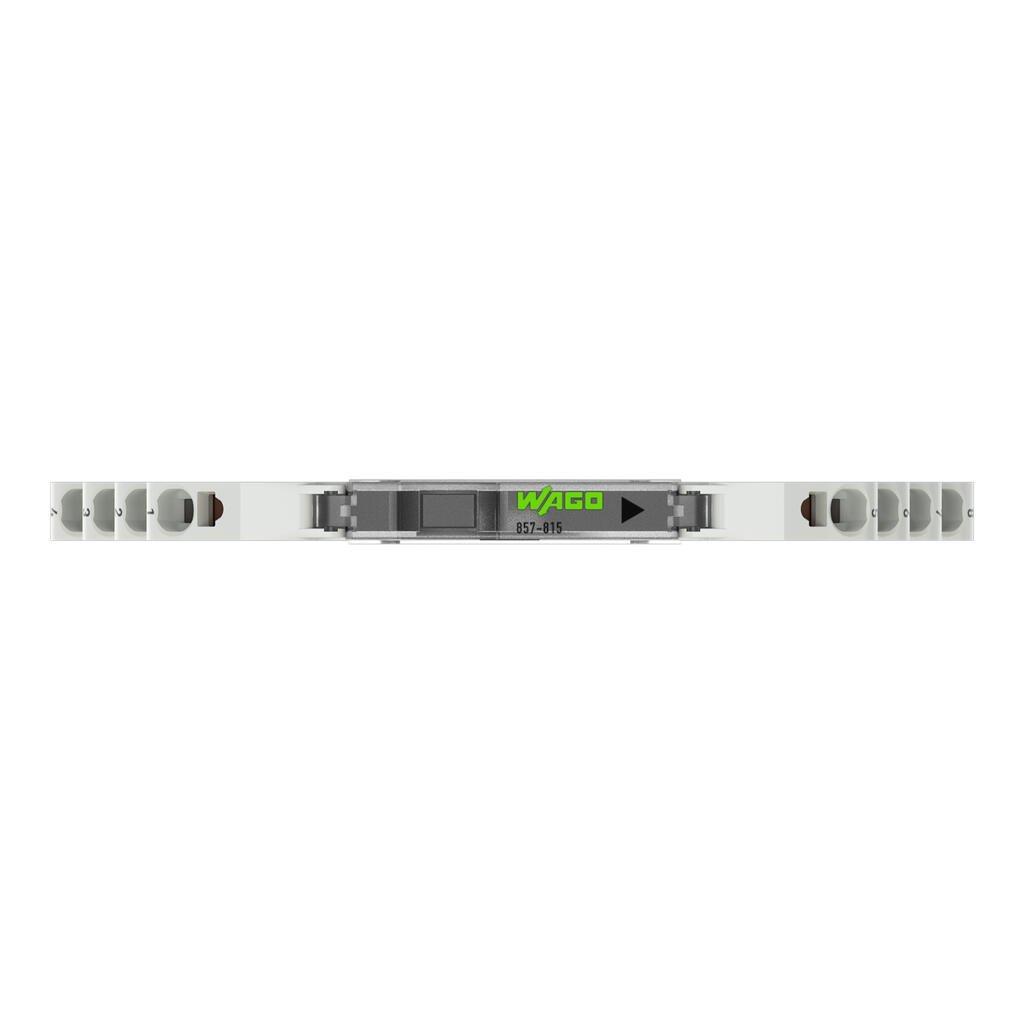

WAGO 857-815 JUMPFLEX signal conditioner
Part Number # 857-815
SKU # 2385297
$475.57 / Each
Wago 857-815 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 857-815 |
| SKU #: | 2385297 |
| Dimensions: | 3.701 in H x 0.236 in W x 3.85 in D |
| Input Type: | RTD |
| Input Voltage: | 24 VDC |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 94 mm / 3.701 inch |
| Input signal type: | Pt sensors || Resistor |
| Material: | Polyamide (PA66) |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Output signal (current): | 4 … 20 mA; 20 … 4 mA |
| Output signal type: | Current |
| Output type: | Analog |
| Power supply type: | Loop-powered (via output) |
| Sensor connection: | 2-wire; 3-wire; 4-wire (switchable) |
| Sensor power supply (RTD) (max.): | ≤ 0.5 mA |
| Sensor types (RTD): | Pt100 || Pt200 || Pt500 || Pt1000 |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Standards/Specifications: | EN 61010-1; EN 61373 |
| Supply voltage: | DC 8 … 30 V (Power is derived from the output circuit.) |
| Weight: | 39.800 g |
| Width: | 6 mm / 0.236 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04055143475648 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$475.57 / Each
Quantity:
WAGO 857-815 JUMPFLEX signal conditioner
Brand: Wago
Part Number: 857-815
Additional Description: WAGO-857-815 TEMPERATURE SIGNAL CONDITIONER FOR RTD SENSORS; CURRENT OUTPUT SIGNAL; POWER VIA OUTPUT; 6 MM MODULE WIDTH 60304830 POWER VIA OUTPUT; 6 MM MODULE WIDTH
Catalog Description: Temperature signal conditioner for RTD sensors; Current output signal; Power via output; 6 mm module width
857-815 Item Features
- No additional supply voltage required
- 2-, 3- and 4-wire connection technology
- Calibrated measurement range switching
- Detects a sensor wire break/short circuit
- For Pt100, Pt200, Pt500, Pt1000 Sensors
857-815 Standards
EN 61010-1|EN 61373|EN 50121-3-2|EN 61010-1|EN 61373|RoHS Compliant|CE|IP20SKU #2385297Part Number #857-815UNSPSC43232306UPC04055143475648
