Part Number # 858-314
SKU # 2222598
Image Disclaimers Message
858-314

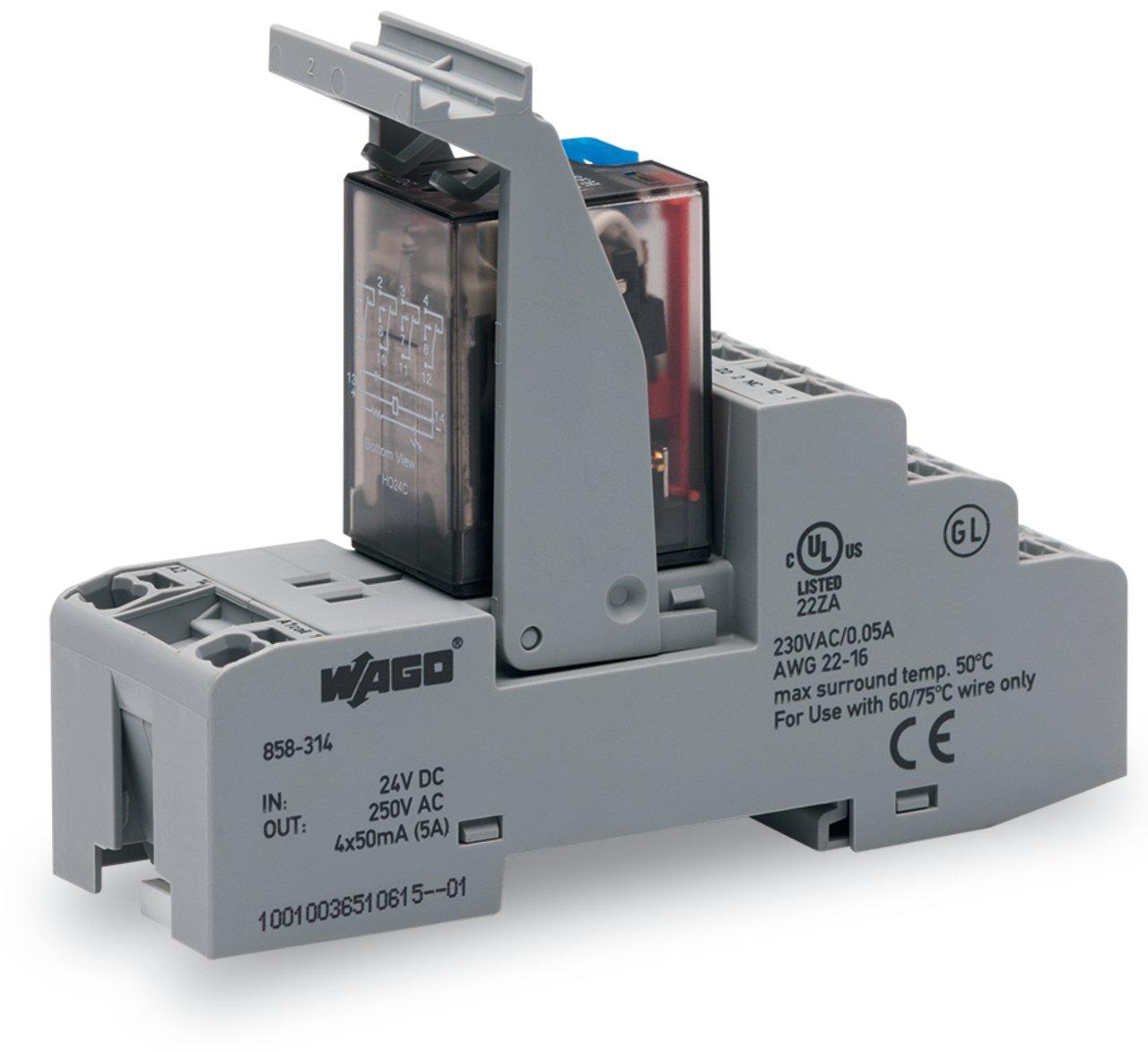

WAGO 858-314 Relay module
Part Number # 858-314
SKU # 2222598
Wago 858-314 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 858-314 |
| SKU #: | 2222598 |
| Amperage Rating: | 5 A |
| Coil Voltage: | 300 V |
| Dimensions: | 3.81 in H x 1.22 in W x 2.87 in D |
| Number of Poles: | 4 |
| Series: | 858 |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Terminal Type: | Cage Clamp |
| Type: | 4 Changeover Contacts |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 97 mm / 3.819 inch |
| Mechanical life: | 20 x 106 switching operations |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of changeover/switchover contacts: | 4 |
| Protection type: | IP20 |
| Rated voltage: | 250 V |
| Solid conductor: | 0.34 … 1.5 mm² / 22 … 16 AWG |
| Standards/Specifications: | EN 61010-2-201; EN 61810-1; EN 61373; GL; UL 508 (max. 50 °C) |
| Status indicator: | Red LED || Mechanical |
| Switching capacity: | AC-15: 1 A / AC 240 V; DC-13: 2 A / DC 24 V |
| Weight: | 97.500 g |
| Width: | 31 mm / 1.22 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04055143567893 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 858-314 Relay module
Brand: Wago
Part Number: 858-314
WAGO, 858-314, Relay Module, 4 Changeover Contacts, Series: 858, 5 A, 2.5 kV Power, 300 V Coil, 4 Pole, 35 mm DIN Rail Mounting, Cage Clamp Terminal, -25 to 70 deg C, 3.81 in H x 1.22 in W x 2.87 in D Dimensions
Additional Description: WAGO-858-314 4 C/O RELAY MODULE,24VDC GLD CONTACT 08580314 Must order in multiples of 5
Catalog Description: Relay module; Nominal input voltage: 24 VDC; 4 changeover contacts; Limiting continuous current: 5 A; with gold contacts; with manual operation; Red status indicator; Module width: 31 mm; 1,50 mm²
858-314 Standards
RoHS CompliantSKU #2222598Part Number #858-314UNSPSC43232306UPC04055143567893
