Part Number # 858-324
SKU # 2313634
Image Disclaimers Message
Brand: Wago
858-324

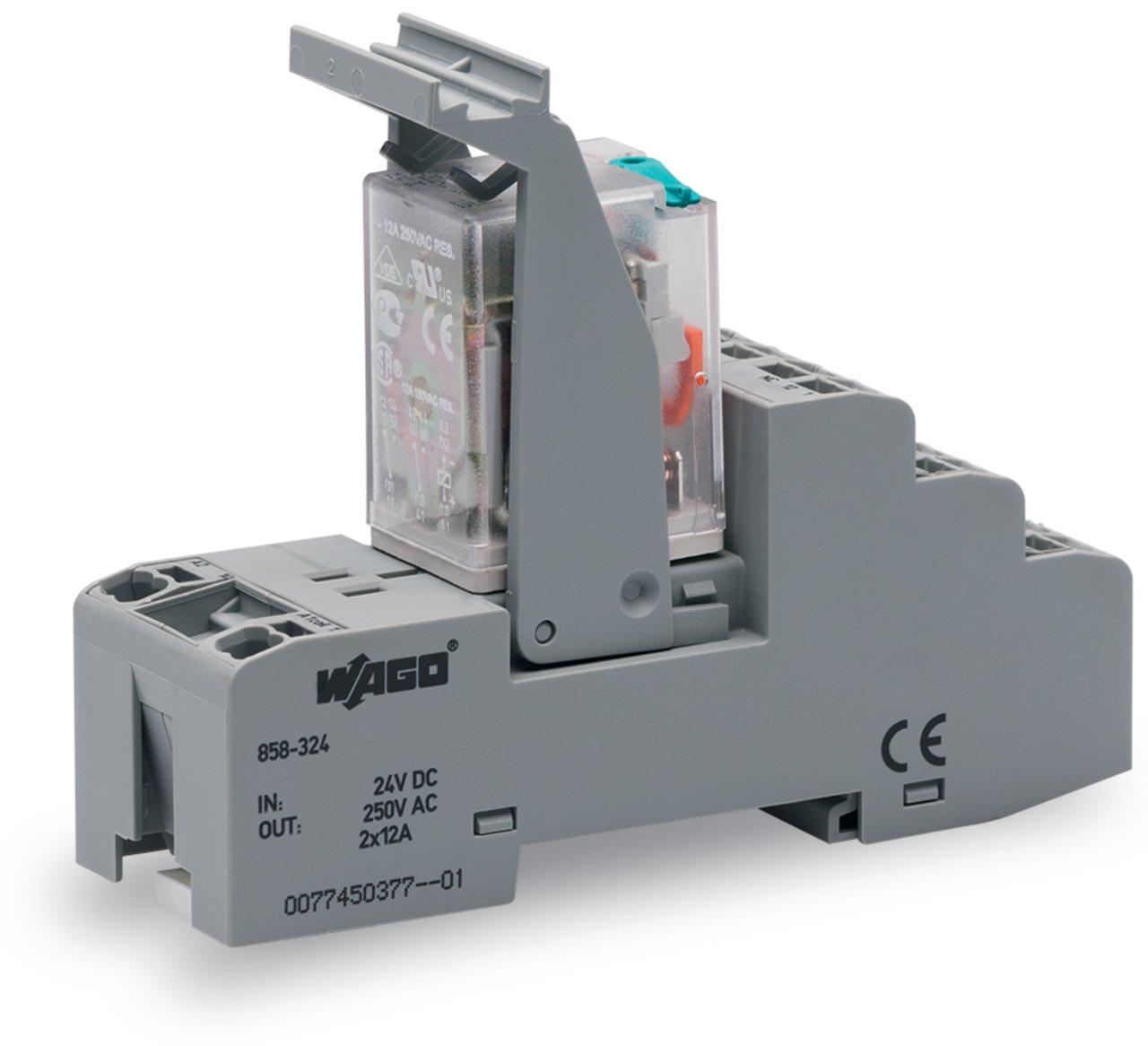

WAGO 858-324 Relay module
Part Number # 858-324
SKU # 2313634
$184.70 / 5Each
Wago 858-324 Key Features
Brand: Wago
Part Number # 858-324
SKU #2313634
Amperage Rating: 12 A
Dimensions: 3.819 in H x 1.22 in W x 2.874 in D
Enclosure Type: IP20
Indicator: Red LED
Temperature Rating (Degrees F): -25 to 50 deg C
Voltage Rating: 24 VDC
Connection technology: Push-in CAGE CLAMP®
Connection type: Push-In
Country of origin: DE
Depth: 97 mm / 3.819 inch
Mechanical life: 20 x 106 switching operations
Mounting type: 35 mm DIN Rail, DIN-35 rail
Number of changeover/switchover contacts: 2
Protection type: IP20
Rated voltage: 250 V
Solid conductor: 0.34 … 1.5 mm² / 22 … 16 AWG
Standards/Specifications: EN 61010-2-201; EN 61810-1; UL 508
Status indicator: Red LED || Mechanical
Switching capacity: AC-15: 1.5 A / AC 240 V; DC-13: 0.1 A / DC 250 V
Switching frequency with/without load (max.): 20 min-1 / 200 min-1
Weight: 87.500 g
Width: 31 mm / 1.22 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 43232306
UPC: 04055143567732
$184.70 / 5Each
WAGO 858-324 Relay module
Brand: Wago
Part Number: 858-324
Additional Description: WAGO-858-324 RELAY MODULE; NOMINAL INPUT VOLTAGE: 24 VDC; 2 CHANGEOVER CONTACTS; LIMITING CONTINUOUS CURRENT: 12 A; WITH MANUAL OPERATION; RED STATUS INDICATOR; MODULE WIDTH: 31 MM; 1,50 MM 60326836 08580324
Catalog Description: Relay module; Nominal input voltage: 24 VDC; 2 changeover contacts; Limiting continuous current: 12 A; with manual operation; Red status indicator; Module width: 31 mm; 1,50 mm²
858-324 Standards
EN 61010-2-201|EN 61810-1|UL 508|RoHS Compliant|IP20SKU #2313634Part Number #858-324UNSPSC43232306UPC04055143567732
