Brand: Wago
858-354

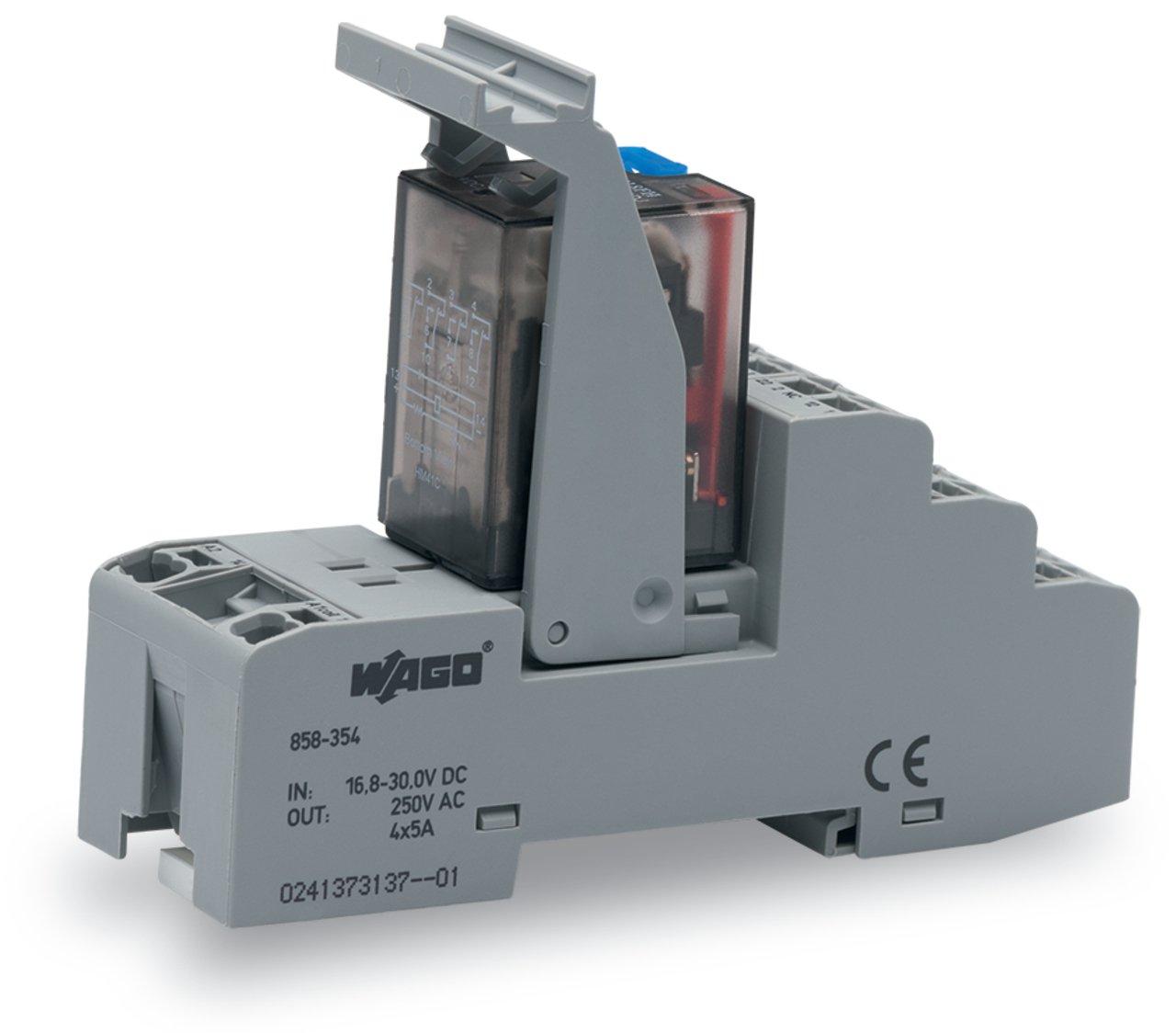

WAGO 858-354 Relay module
Part Number # 858-354
SKU # 2347763
$180.22 / 5Each
Wago 858-354 Key Features
Brand: Wago
Part Number # 858-354
SKU #2347763
Amperage Rating: 5 A
Dimensions: 3.819 in H x 1.22 in W x 2.874 in D
Enclosure Type: IP20
Indicator: Red LED
Temperature Rating (Degrees F): -25 to 50 deg C
Voltage Rating: 24 VDC
Connection technology: Push-in CAGE CLAMP®
Connection type: Push-In
Country of origin: DE
Depth: 97 mm / 3.819 inch
Mechanical life: 20 x 106 switching operations
Mounting type: 35 mm DIN Rail, DIN-35 rail
Number of changeover/switchover contacts: 4
Protection type: IP20
Rated voltage: 250 V
Solid conductor: 0.34 … 1.5 mm² / 22 … 16 AWG
Standards/Specifications: EN 61010-2-201; EN 61810-1; EN 61373; UL 508
Status indicator: Red LED || Mechanical
Switching capacity: AC-15: 1 A / AC 240 V; DC-13: 2 A / DC 24 V
Weight: 98.300 g
Width: 31 mm / 1.22 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 43232306
UPC: 04055143568333
$180.22 / 5Each
SKU # 2347763
Part Number # 858-354
WAGO 858-354 Relay module
Brand: Wago
Part Number: 858-354
Additional Description: WAGO-858-354 RELAY MODULE; NOMINAL INPUT VOLTAGE: 24 VDC; 4 CHANGEOVER CONTACTS; LIMITING CONTINUOUS CURRENT: 5 A; WITH MANUAL OPERATION; PATH; RED STATUS INDICATOR; MODULE WIDTH: 31 MM 60326928 VOLTAGE: 24 VDC; 4 CHANGEOVER CONTACTS; LIMITING CONTINUOUS CURRENT: 5 A; WITH MANUAL OPERATION; PATH; RED STATUS INDICATOR; MODULE WIDTH: 31 MM 60326928
Catalog Description: Relay module; Nominal input voltage: 24 VDC; 4 changeover contacts; Limiting continuous current: 5 A; with manual operation; Railway; Red status indicator; Module width: 31 mm
858-354 Standards
EN 61010-2-201|EN 61810-1|EN 61373|UL 508|RoHS Compliant|IP20SKU #2347763Part Number #858-354UNSPSC43232306UPC04055143568333
