858-504

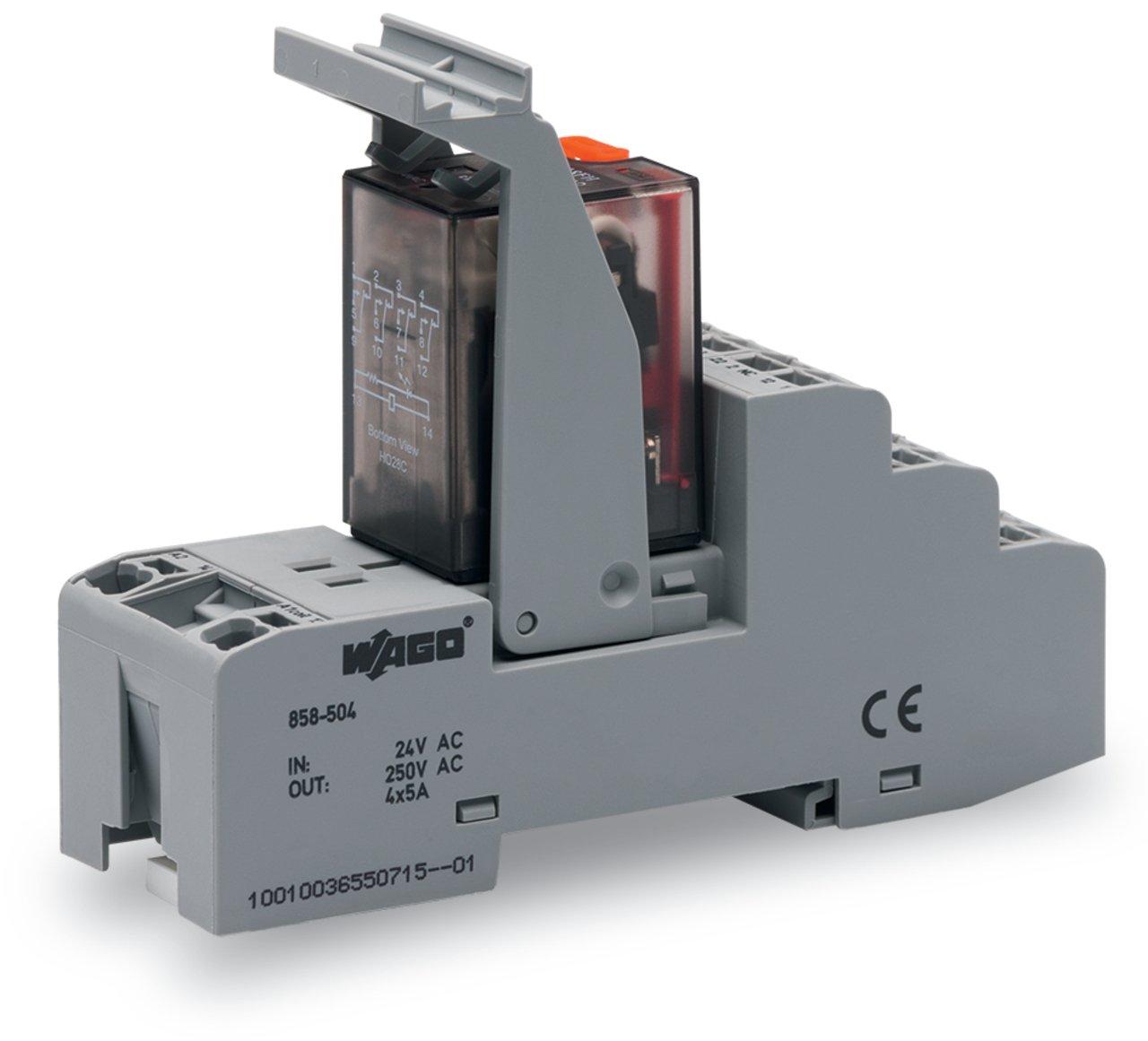

WAGO 858-504 Relay module
Part Number # 858-504
SKU # 2367478
$159.33 / 5Each
Wago 858-504 Key Features
Brand: Wago
Part Number # 858-504
SKU #2367478
Amperage Rating: 5 A
Dimensions: 3.819 in H x 1.22 in W x 2.874 in D
Enclosure Type: IP20
Indicator: Red LED
Temperature Rating (Degrees F): -25 to 50 deg C
Voltage Rating: 24 VAC
Connection technology: Push-in CAGE CLAMP®
Connection type: Push-In
Country of origin: DE
Depth: 97 mm / 3.819 inch
Mechanical life: 20 x 106 switching operations
Mounting type: 35 mm DIN Rail, DIN-35 rail
Number of changeover/switchover contacts: 4
Protection type: IP20
Rated voltage: 250 V
Solid conductor: 0.34 … 1.5 mm² / 22 … 16 AWG
Standards/Specifications: EN 61010-2-201; EN 61810-1; EN 61373; UL 508 (max. 50 °C)
Status indicator: Red LED || Mechanical
Switching capacity: AC-15: 1 A / AC 240 V; DC-13: 2 A / DC 24 V
Weight: 96.100 g
Width: 31 mm / 1.22 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 39122323
UPC: 04055143568371
$159.33 / 5Each
SKU # 2367478
Part Number # 858-504
WAGO 858-504 Relay module
Brand: Wago
Part Number: 858-504
Additional Description: WAGO-858-504 (D) RELAY MODULE; NOMINAL INPUT VOLTAGE: 24 VAC; 4 CHANGEOVER CONTACTS; LIMITING CONTINUOUS CURRENT: 5 A; WITH MANUAL OPERATION; RED STATUS INDICATOR; MODULE WIDTH: 31 MM 60326925 VOLTAGE: 24 VAC; 4 CHANGEOVER CONTACTS; LIMITING CONTINUOUS CURRENT: 5 A; WITH MANUAL OPERATION; RED STATUS INDICATOR; MODULE WIDTH: 31 MM 60326925 THIS PART MUST BE ORDERED IN MULTTIPLES OF 5
Catalog Description: Relay module; Nominal input voltage: 24 VAC; 4 changeover contacts; Limiting continuous current: 5 A; with manual operation; Red status indicator; Module width: 31 mm
858-504 Standards
EN 61010-2-201|EN 61810-1|EN 61373|UL 508 (max. 50°C)|RoHS Compliant|IP20SKU #2367478Part Number #858-504UNSPSC39122323UPC04055143568371
