Part Number # 859-804
SKU # 2125509
Wago 859-804 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 859-804 |
| SKU #: | 2125509 |
| Input Voltage: | 12 V DC, 12 VDC |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | US |
| Depth: | 91 mm / 3.583 inch |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Output voltage: | 24 V DC, 24 VDC |
| Output voltage range: | ±1 % |
| Protection class: | III |
| Protection type: | IP20 (per EN 60529) |
| Reverse voltage protection: | Yes |
| Signaling: | 1 x LED |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Switching frequency: | 1.2 MHz (Nominal) |
| WAGO Connector: | WAGO 859 Series |
| Weight: | 36.253 g |
| Width: | 6 mm / 0.236 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04050821017479 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$84.23 / Each
Quantity:

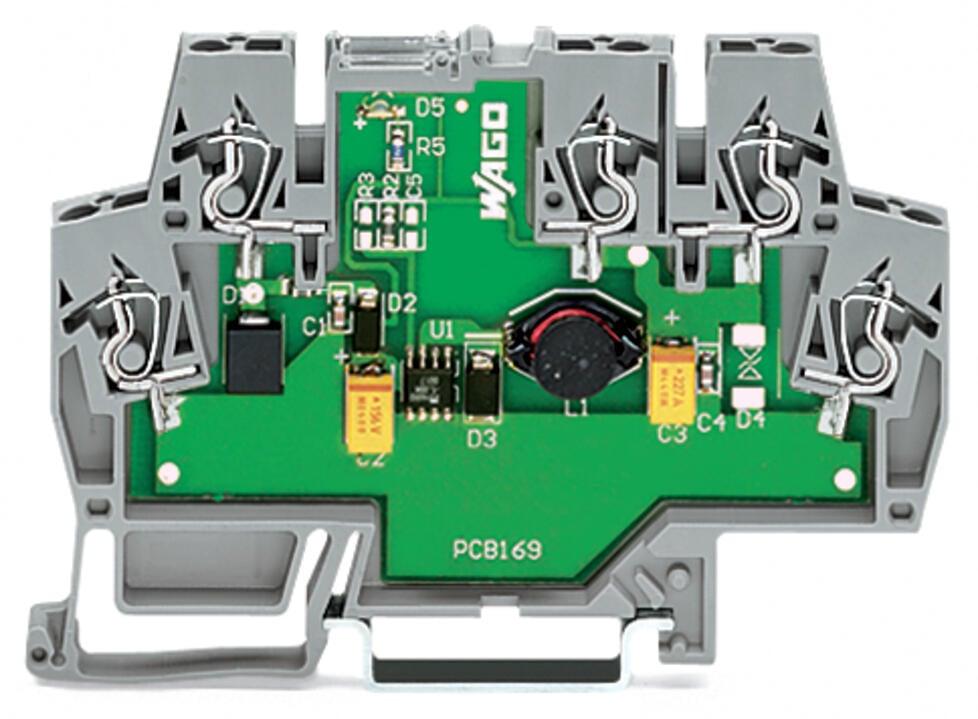

WAGO 859-804 DC/DC converter
Brand: Wago
Part Number: 859-804
Additional Description: WAGO-859-804 DC/DC CONVERTER; 12 VDC INPUT VOLTAGE; 24 VDC OUTPUT VOLTAGE; 0.25 A OUTPUT CURRENT; 2,50 MM ; GRAY 51225634
Catalog Description: DC/DC Converter; 12 VDC input voltage; 24 VDC output voltage; 0.25 A output current; 2,50 mm²; gray
859-804 Standards
RoHS Compliant|ECCN: EAR99|CE|IP20SKU #2125509Part Number #859-804UNSPSC43232306UPC04050821017479
Image provided may only be a representation of final product and may include optional equipment
