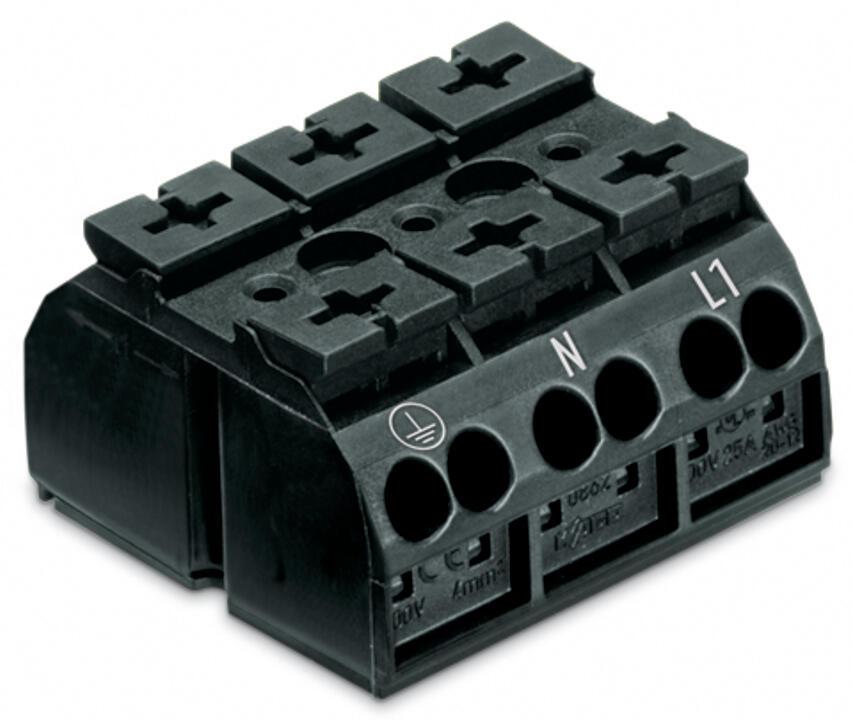

WAGO 862-1503/999-950 4-conductor chassis-mount terminal strip
Part Number # 862-1503/999-950
SKU # 2296693
Wago 862-1503/999-950 Key Features
Brand: | Wago |
---|---|
Part Number # : | 862-1503/999-950 |
SKU #: | 2296693 |
Actuation type: | Operating tool || Push-button |
Color: | Black |
Connection technology: | Push-in CAGE CLAMP® |
Country of origin: | DE |
Depth: | 35 mm / 1.378 inch |
Insulation material: | Polyamide (PA66) |
Marking: | ⏚-N-L1 |
Mounting type: | Screw mount |
Solid conductor: | 0.5 … 4 mm² / 20 … 12 AWG |
Stranded conductor: | 0.5 … 4 mm² / 20 … 12 AWG |
Total number of connection points: | 12 |
Weight: | 20.488 g |
Width: | 36 mm / 1.417 inch |
Wiring type: | Side-entry wiring |
UNSPSC: | 39121407 |
UPC: | 04045454789206 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 862-1503/999-950 4-conductor chassis-mount terminal strip
Brand: Wago
Part Number: 862-1503/999-950
Additional Description: WAGO-862-1503/999-950 4-CONDUCTOR CHASSIS-MOUNT TERMINAL STRIP; SUITABLE FOR EX E II APPLICATIONS; 3-POLE; PE-N-L1; WITHOUT GROUND CONTACT; FOR 3 MM SCREW AND NUT; 4 MM; 4,00 MM; BLACK 51207494 BLK STRIP; SUITABLE FOR EX E II APPLICATIONS; 3-POLE; PE-N-L1; WITHOUT GROUND CONTACT; FOR 3 MM SCREW AND NUT; 4 MM ; 4,00 MM ; BLACK CONT 51207494
Catalog Description: 4-conductor chassis-mount terminal strip; suitable for Ex e II applications; without ground contact; PE-N-L1; 3-pole; for 3 mm ø screw and nut; 4 mm²; 4,00 mm²; black
