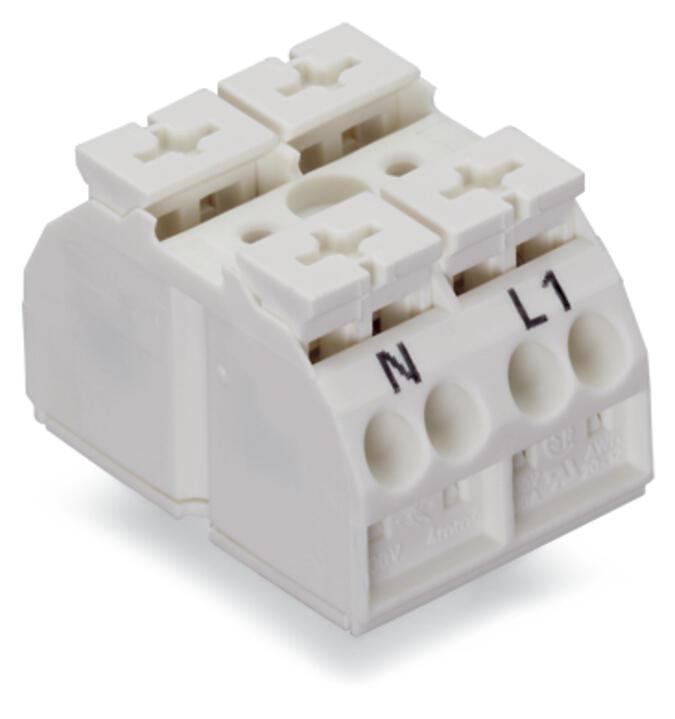

WAGO 862-2632 4-conductor chassis-mount terminal strip
Part Number # 862-2632
SKU # 2350918
$1.24 / Each
Wago 862-2632 Key Features
Brand: Wago
Part Number # 862-2632
SKU #2350918
Actuation type: Operating tool || Push-button
Color: White
Connection technology: Push-in CAGE CLAMP®
Country of origin: DE
Depth: 35 mm / 1.378 inch
Insulation material: Polyamide (PA66)
Marking: N-L1
Mounting type: Snap-in mounting foot
Rated current: 32 A
Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
Stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
Total number of connection points: 8
Weight: 13.891 g
Width: 24 mm / 0.945 inch
Wiring type: Side-entry wiring
UNSPSC: 39121407
UPC: 04044918510240
$1.24 / Each
WAGO 862-2632 4-conductor chassis-mount terminal strip
Brand: Wago
Part Number: 862-2632
Additional Description: WAGO-862-2632 4-CONDUCTOR CHASSIS-MOUNT TERMINAL STRIP; 2-POLE; N-L1; WITHOUT GROUND CONTACT; 1 SNAP-IN FOOT PER POLE; 4 MM; 4,00 MM; WHITE 51131533 STRIP; 2-POLE; N-L1; WITHOUT GROUND CONTACT; 1 SNAP-IN FOOT PER POLE; 4 MM ; 4,00 MM ; WHITE 51131533
Catalog Description: 4-conductor chassis-mount terminal strip; without ground contact; N-L1; 2-pole; 1 snap-in foot per pole; 4 mm²; 4,00 mm²; white
SKU #2350918Part Number #862-2632UNSPSC39121407UPC04044918510240
