862-525

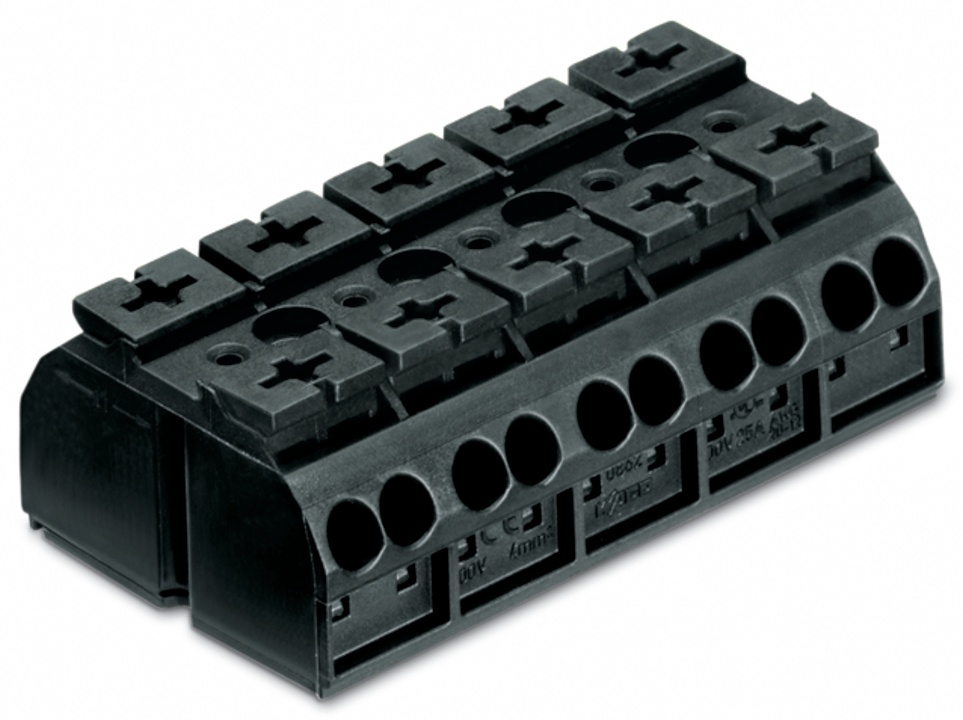

WAGO 862-525 4-conductor chassis-mount terminal strip
Part Number # 862-525
SKU # 2213126
$3.10 / Each
Typical price:$3.20 / Each
Wago 862-525 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 862-525 |
| SKU #: | 2213126 |
| Conductor Size: | 20 to 12 AWG |
| Conductor Type: | Copper |
| Dimensions: | 0.878 in H x 2.362 in W x 1.378 in D |
| Series: | 862 |
| Specifications: | Push-In Cage Clamp Connection, Black Color |
| Type: | 4-Conductor |
| Actuation type: | Operating tool || Push-button |
| Color: | Black |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 35 mm / 1.378 inch |
| Insulation material: | Polyamide (PA66) |
| Length: | 0.39 to 0.43 in |
| Marking: | Plain |
| Material: | Polyamide 6.6 |
| Mounting type: | Chassis, Snap-in mounting foot |
| Rated current: | 32 A |
| Solid conductor: | 0.5 … 4 mm² / 20 … 12 AWG |
| Stranded conductor: | 0.5 … 4 mm² / 20 … 12 AWG |
| Total number of connection points: | 20 |
| Weight: | 34.764 g |
| Width: | 60 mm / 2.362 inch |
| Wiring type: | Side-entry wiring |
| UNSPSC: | 39121407 |
| UPC: | 04044918509091 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3.10 / Each
Typical price:$3.20 / Each
Quantity:
WAGO 862-525 4-conductor chassis-mount terminal strip
Brand: Wago
Part Number: 862-525
Additional Description: WAGO-862-525 4-CONDUCTOR CHASSIS-MOUNT TERMINAL STRIP; 5-POLE; WITHOUT GROUND CONTACT; 4 MM; 4,00 MM; BLACK 51131458 CONTACT; 4 MM ; 4,00 MM ; BLACK 51131458
Catalog Description: 4-conductor chassis-mount terminal strip; without ground contact; 5-pole; 4 mm²; 4,00 mm²; black
