Brand: Wago

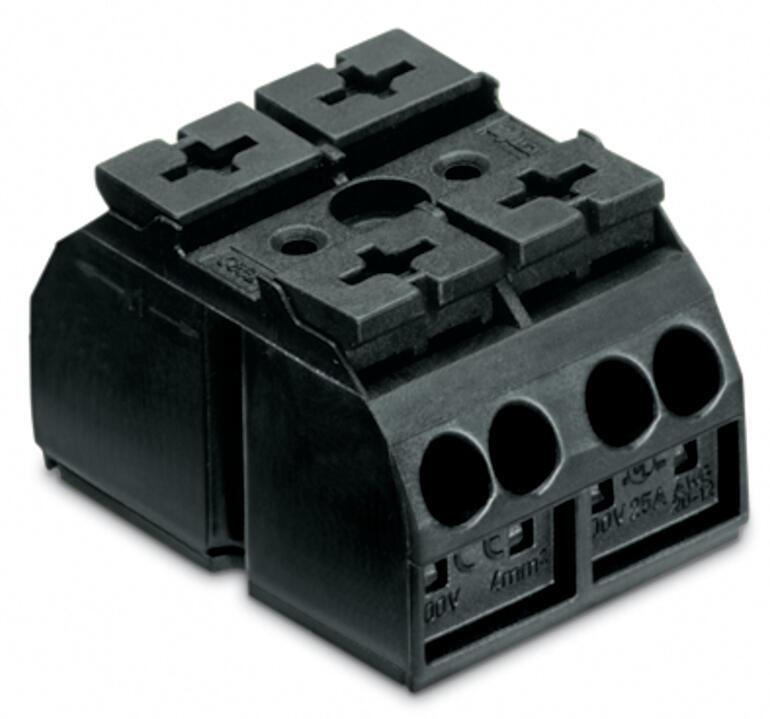

WAGO 862-562 4-conductor chassis-mount terminal strip
Image Disclaimers Message
Brand: Wago
WAGO 862-562 4-conductor chassis-mount terminal strip
Brand: Wago
WAGO 862-562 4-conductor chassis-mount terminal strip
Part #:862-562
SKU #: 2352102
$1.11/EA
Key Features
Part #:862-562
SKU #: 2352102
Brand: Wago
Actuation type: Operating tool || Push-button
Color: Black
Connection technology: Push-in CAGE CLAMP®
Country of origin: DE
Depth: 35 mm / 1.378 inch
$1.11/EA
Specifications
Brand: Wago
Actuation type: Operating tool || Push-button
Color: Black
Connection technology: Push-in CAGE CLAMP®
Country of origin: DE
Depth: 35 mm / 1.378 inch
Insulation material: Polyamide (PA66)
Marking: Plain
Mounting type: Screw mount
Rated current: 32 A
Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
Stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
Total number of connection points: 8
Weight: 14.335 g
Width: 24 mm / 0.945 inch
Wiring type: Side-entry wiring
UNSPSC: 39121407
UPC: 04044918509213
WAGO 862-562 4-conductor chassis-mount terminal strip
Additional Description: WAGO-862-562 4-CONDUCTOR CHASSIS-MOUNT TERMINAL STRIP; 2-POLE; WITHOUT GROUND CONTACT; FOR SELF-TAPPING SCREW 2.9 MM FROM BELLOW; WITH 2X PIN; 4 MM ; 4,00 MM ; BLACK 51131466
Catalog Description: 4-conductor chassis-mount terminal strip; without ground contact; 2-pole; for self-tapping screw 2.9 mm Ø from bellow; with 2x pin; 4 mm²; 4,00 mm²; black
