Brand: Wago

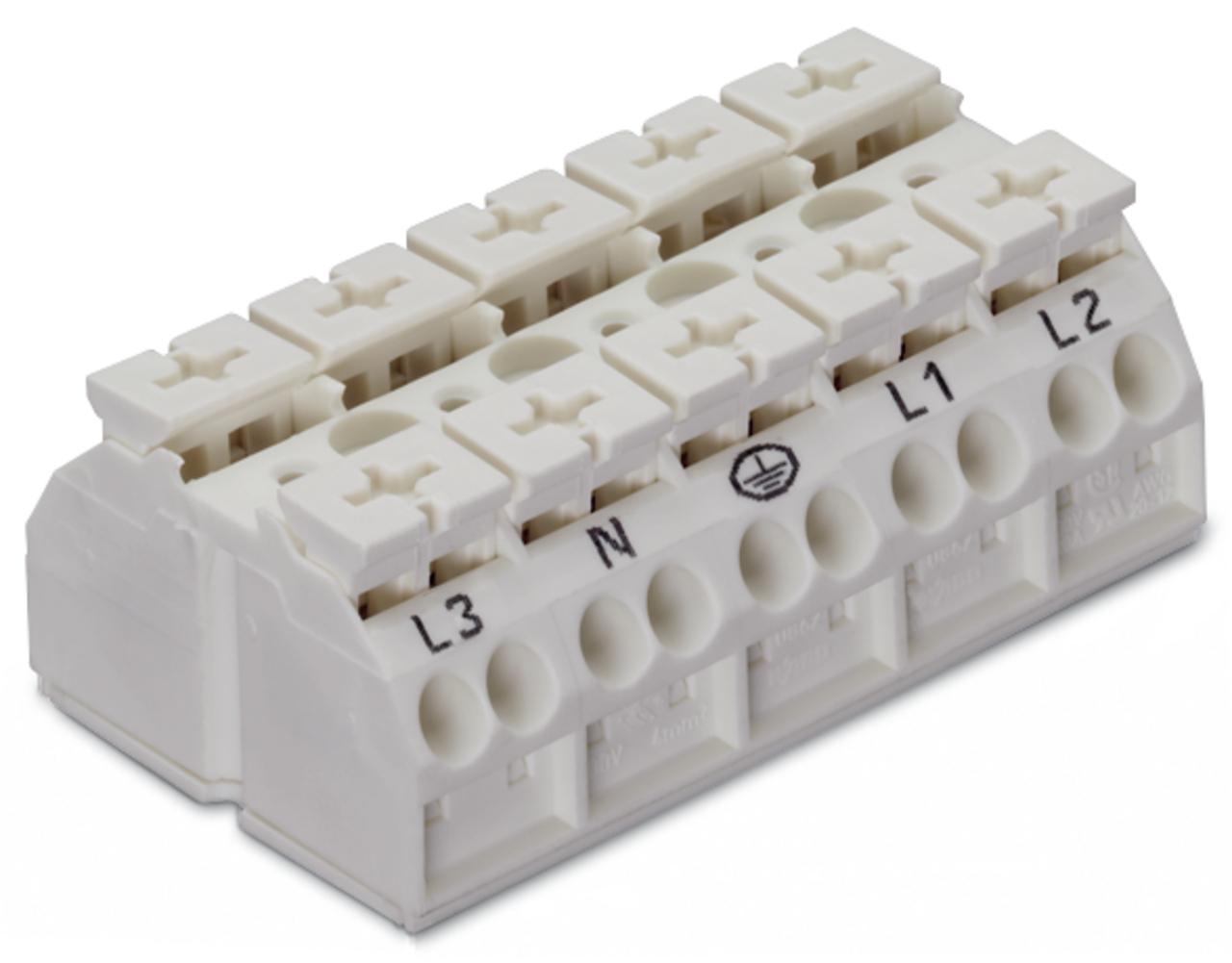

WAGO 862-625 4-conductor chassis-mount terminal strip
Image Disclaimers Message
Brand: Wago
WAGO 862-625 4-conductor chassis-mount terminal strip
Brand: Wago
WAGO 862-625 4-conductor chassis-mount terminal strip
Part #:862-625
SKU #: 2227804
$2.77/EA
Key Features
Part #:862-625
SKU #: 2227804
Brand: Wago
Actuation type: Operating tool || Push-button
Color: White
Connection technology: Push-in CAGE CLAMP®
Country of origin: DE
Depth: 35 mm / 1.378 inch
$2.77/EA
Specifications
Brand: Wago
Actuation type: Operating tool || Push-button
Color: White
Connection technology: Push-in CAGE CLAMP®
Country of origin: DE
Depth: 35 mm / 1.378 inch
Insulation material: Polyamide (PA66)
Marking: Plain
Mounting type: Snap-in mounting foot
Rated current: 32 A
Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
Stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
Total number of connection points: 20
Weight: 34.163 g
Width: 60 mm / 2.362 inch
Wiring type: Side-entry wiring
UNSPSC: 39121407
UPC: 04044918509367
WAGO 862-625 4-conductor chassis-mount terminal strip
Additional Description: WAGO-862-625 4-CONDUCTOR CHASSIS-MOUNT TERMINAL STRIP; 5-POLE; WITHOUT GROUND CONTACT; 4 MM; 4,00 MM; WHITE 51131478 CONTACT; 4 MM ; 4,00 MM ; WHITE 51131478
Catalog Description: 4-conductor chassis-mount terminal strip; without ground contact; 5-pole; 4 mm²; 4,00 mm²; white
