Brand: Wago

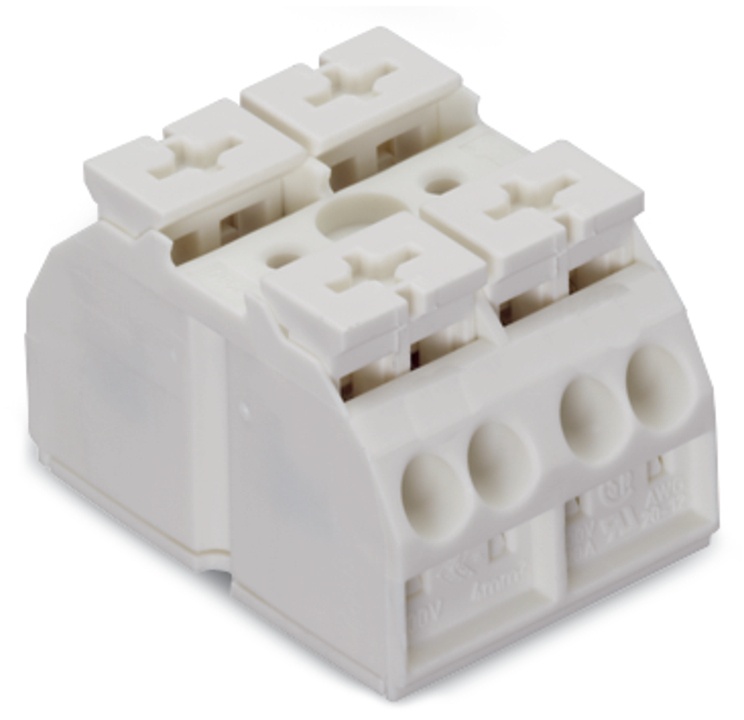

WAGO 862-632 4-conductor chassis-mount terminal strip
Image Disclaimers Message
Brand: Wago
WAGO 862-632 4-conductor chassis-mount terminal strip
Brand: Wago
WAGO 862-632 4-conductor chassis-mount terminal strip
Part #:862-632
SKU #: 2350915
$1.11/EA
Key Features
Part #:862-632
SKU #: 2350915
Brand: Wago
Conductor Size: 20 to 12 AWG
Conductor Type: Copper
Dimensions: 0.878 in H x 0.945 in W x 1.378 in D
Series: 862
Specifications: Push-In Cage Clamp Connection, White Color
$1.11/EA
498 In Stock
Ships in 1 Business Day
Specifications
Brand: Wago
Conductor Size: 20 to 12 AWG
Conductor Type: Copper
Dimensions: 0.878 in H x 0.945 in W x 1.378 in D
Series: 862
Specifications: Push-In Cage Clamp Connection, White Color
Type: 4-Conductor
Actuation type: Operating tool || Push-button
Color: White
Connection technology: Push-in CAGE CLAMP®
Country of origin: DE
Depth: 35 mm / 1.378 inch
Insulation material: Polyamide (PA66)
Length: 0.39 to 0.43 in
Marking: Plain
Material: Polyamide 6.6
Mounting type: Chassis, Snap-in mounting foot
Rated current: 32 A
Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
Stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
Total number of connection points: 8
Weight: 13.891 g
Width: 24 mm / 0.945 inch
Wiring type: Side-entry wiring
UNSPSC: 39121407
UPC: 04044918509374
WAGO 862-632 4-conductor chassis-mount terminal strip
Additional Description: WAGO-862-632 4-CONDUCTOR CHASSIS-MOUNT TERMINAL STRIP; 2-POLE; WITHOUT GROUND CONTACT; 1 SNAP-IN FOOT PER POLE; 4 MM; 4,00 MM; WHITE 51131479 STRIP; 2-POLE; WITHOUT GROUND CONTACT; 1 SNAP-IN FOOT PER POLE; 4 MM ; 4,00 MM ; WHITE 51131479
Catalog Description: 4-conductor chassis-mount terminal strip; without ground contact; 2-pole; 1 snap-in foot per pole; 4 mm²; 4,00 mm²; white
