862-8504

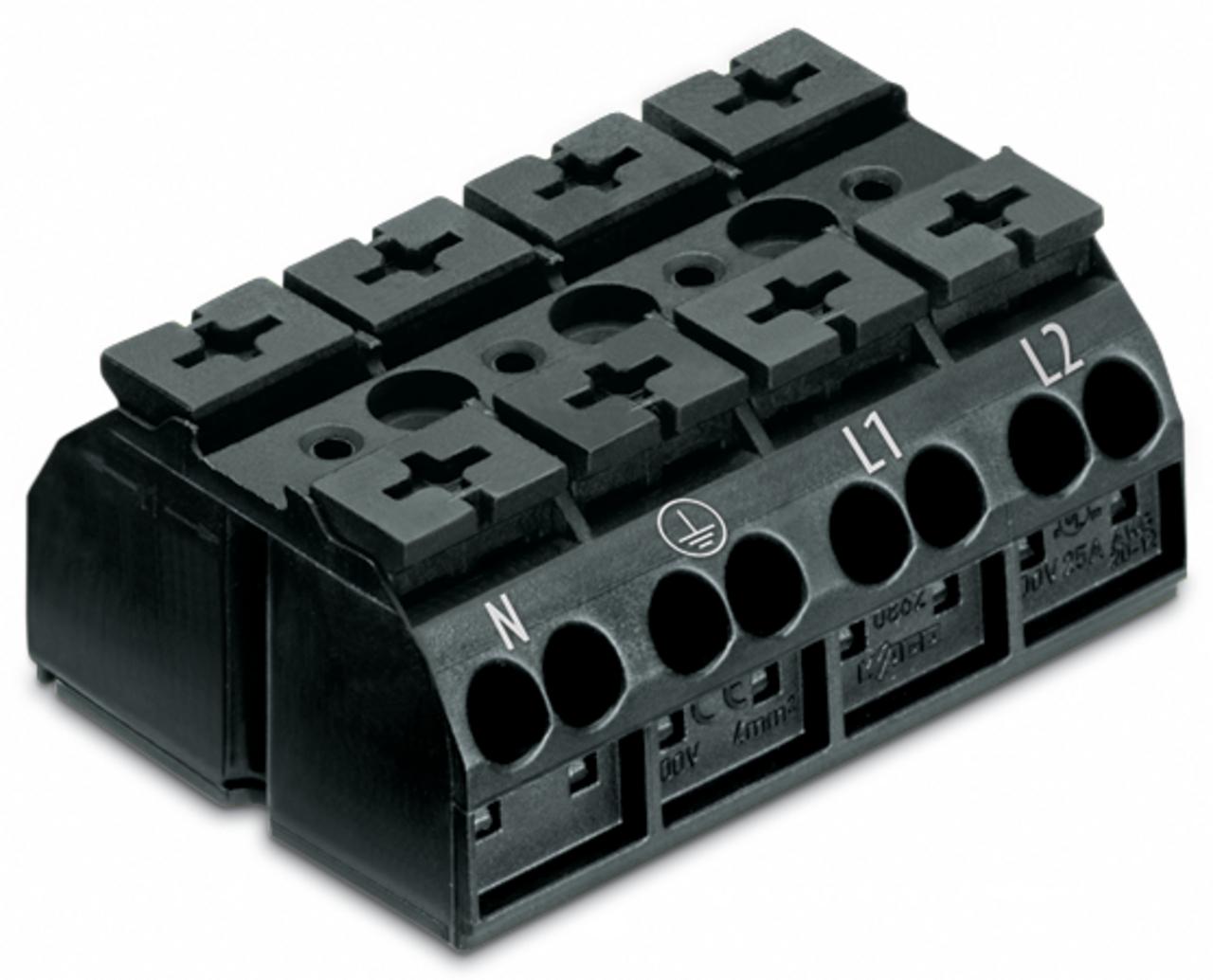

WAGO 862-8504 4-conductor chassis-mount terminal strip
Part Number # 862-8504
SKU # 2334049
$2.69 / Each
Wago 862-8504 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 862-8504 |
| SKU #: | 2334049 |
| Actuation type: | Operating tool || Push-button |
| Color: | Black |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 35 mm / 1.378 inch |
| Insulation material: | Polyamide (PA66) |
| Marking: | N-⏚-L1-L2 |
| Mounting type: | Screw mount |
| Rated current: | 32 A |
| Solid conductor: | 0.5 … 4 mm² / 20 … 12 AWG |
| Stranded conductor: | 0.5 … 4 mm² / 20 … 12 AWG |
| Total number of connection points: | 16 |
| Weight: | 27.742 g |
| Width: | 48 mm / 1.89 inch |
| Wiring type: | Side-entry wiring |
| UNSPSC: | 39121407 |
| UPC: | 04044918510363 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.69 / Each
Quantity:
WAGO 862-8504 4-conductor chassis-mount terminal strip
Brand: Wago
Part Number: 862-8504
Additional Description: WAGO-862-8504 4-CONDUCTOR CHASSIS-MOUNT TERMINAL STRIP; 4-POLE; N-PE-L1-L2; WITH GROUND CONTACT; FOR 3 MM SCREW AND NUT; 4 MM ; 4,00 MM ; BLACK 51131543
Catalog Description: 4-conductor chassis-mount terminal strip; with ground contact; N-PE-L1-L2; 4-pole; for 3 mm ø screw and nut; 4 mm²; 4,00 mm²; black
