Part Number # 862-8515
SKU # 2352103
Image Disclaimers Message
Brand: Wago
862-8515

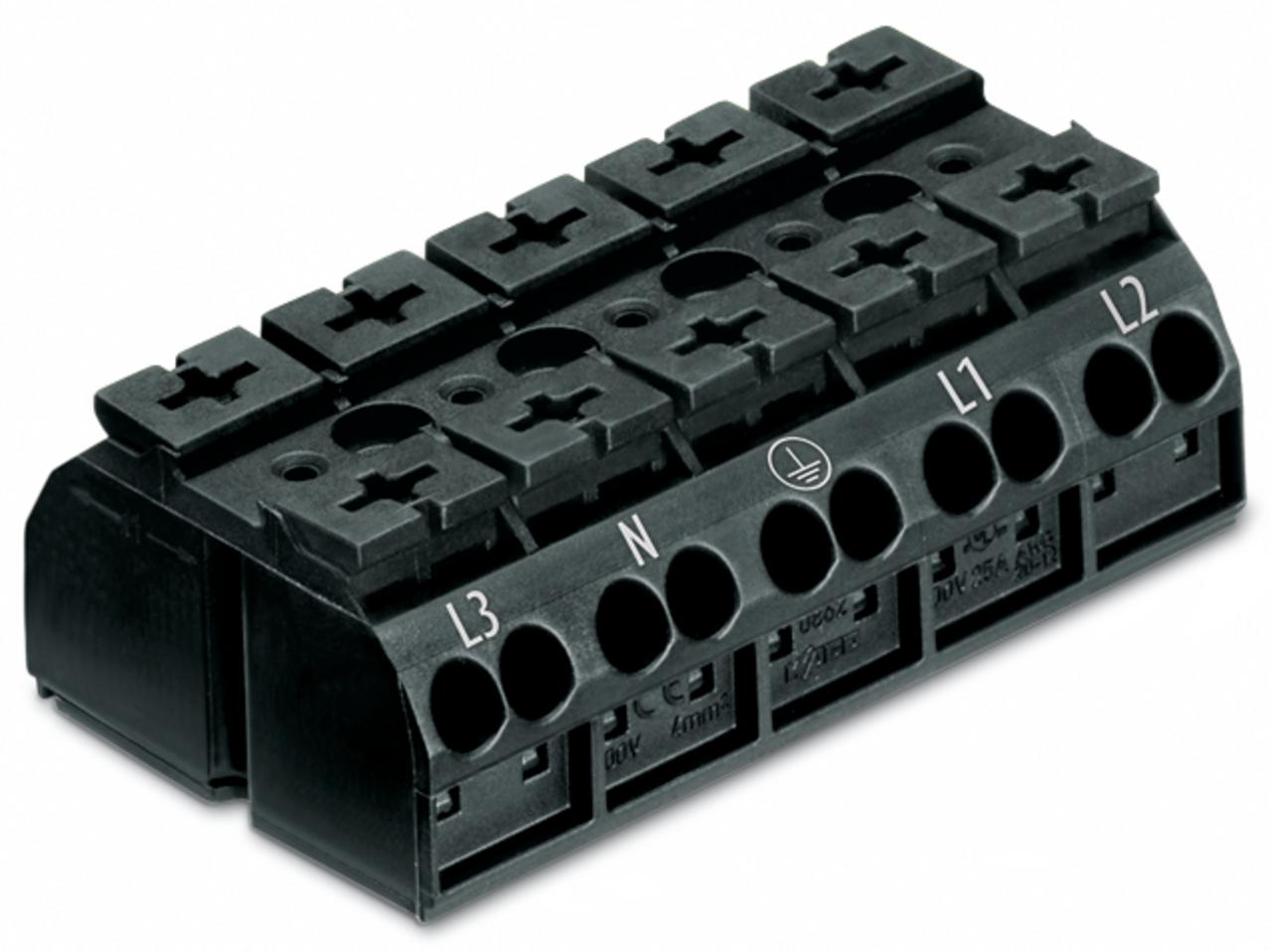

WAGO 862-8515 4-conductor chassis-mount terminal strip
Part Number # 862-8515
SKU # 2352103
$3.36 / Each
Wago 862-8515 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 862-8515 |
| SKU #: | 2352103 |
| Actuation type: | Operating tool || Push-button |
| Color: | Black |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 35 mm / 1.378 inch |
| Insulation material: | Polyamide (PA66) |
| Marking: | L3-N-⏚-L1-L2 |
| Mounting type: | Snap-in mounting foot |
| Rated current: | 32 A |
| Solid conductor: | 0.5 … 4 mm² / 20 … 12 AWG |
| Stranded conductor: | 0.5 … 4 mm² / 20 … 12 AWG |
| Total number of connection points: | 20 |
| Weight: | 34.766 g |
| Width: | 60 mm / 2.362 inch |
| Wiring type: | Side-entry wiring |
| UNSPSC: | 39121407 |
| UPC: | 04044918510387 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3.36 / Each
Quantity:
WAGO 862-8515 4-conductor chassis-mount terminal strip
Brand: Wago
Part Number: 862-8515
Additional Description: WAGO-862-8515 4-CONDUCTOR CHASSIS-MOUNT TERMINAL STRIP; 5-POLE; L3-N-PE-L1-L2; WITH GROUND CONTACT; 4 MM ; 4,00 MM ; BLACK 51131545
Catalog Description: 4-conductor chassis-mount terminal strip; with ground contact; L3-N-PE-L1-L2; 5-pole; 4 mm²; 4,00 mm²; black
SKU #2352103Part Number #862-8515UNSPSC39121407UPC04044918510387
