Brand: Wago

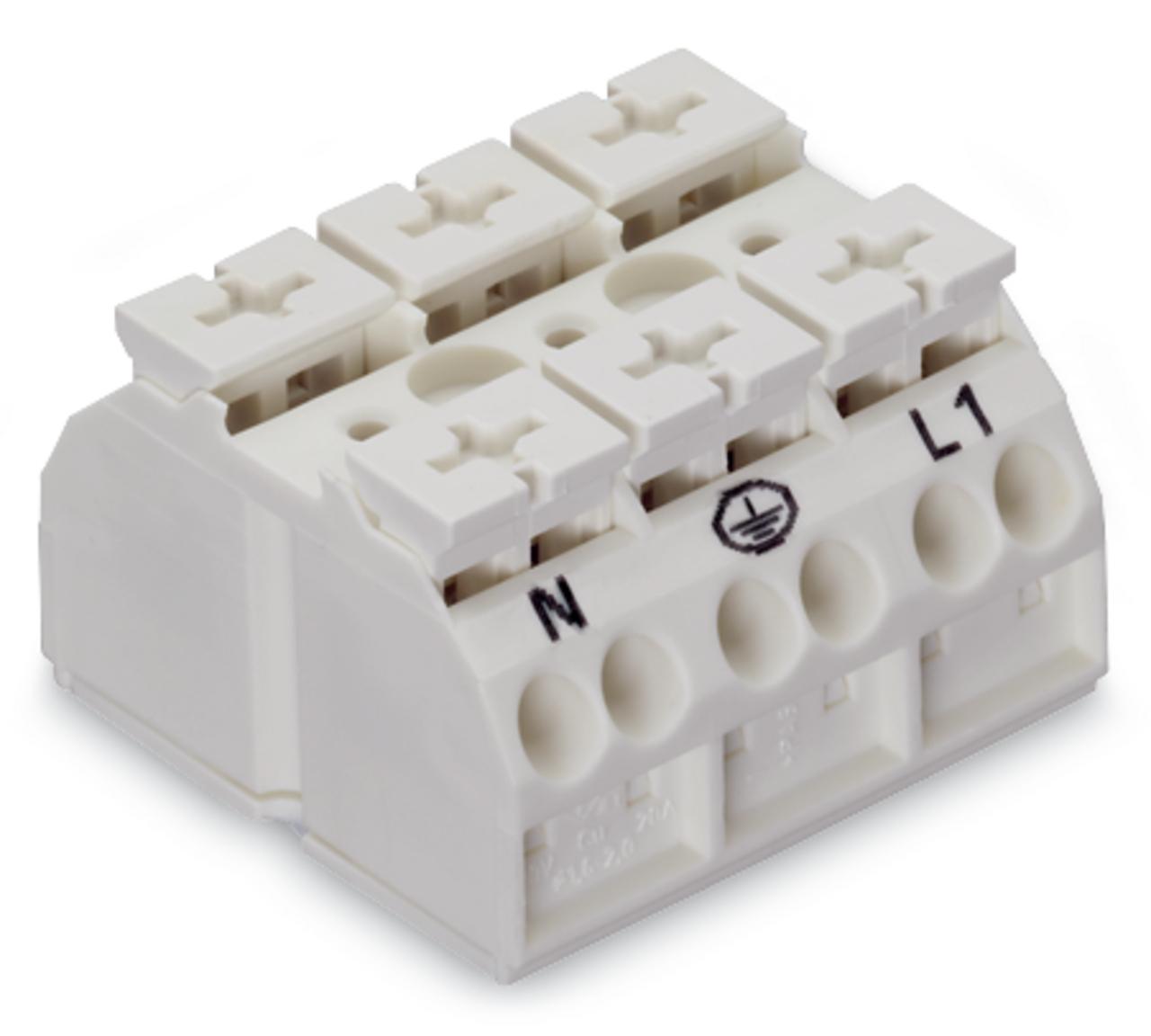

WAGO 862-8603 4-conductor chassis-mount terminal strip
Image Disclaimers Message
Brand: Wago
WAGO 862-8603 4-conductor chassis-mount terminal strip
Brand: Wago
WAGO 862-8603 4-conductor chassis-mount terminal strip
Part #:862-8603
SKU #: 2257222
$1.79/EA
Key Features
Part #:862-8603
SKU #: 2257222
Brand: Wago
Actuation type: Operating tool || Push-button
Color: White
Connection technology: Push-in CAGE CLAMP®
Country of origin: DE
Depth: 35 mm / 1.378 inch
$1.79/EA
Specifications
Brand: Wago
Actuation type: Operating tool || Push-button
Color: White
Connection technology: Push-in CAGE CLAMP®
Country of origin: DE
Depth: 35 mm / 1.378 inch
Insulation material: Polyamide (PA66)
Marking: N-⏚-L1
Mounting type: Screw mount
Rated current: 32 A
Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
Stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
Total number of connection points: 12
Weight: 21.024 g
Width: 36 mm / 1.417 inch
Wiring type: Side-entry wiring
UNSPSC: 39121407
UPC: 04044918510592
WAGO 862-8603 4-conductor chassis-mount terminal strip
Additional Description: WAGO-862-8603 4-CONDUCTOR CHASSIS-MOUNT TERMINAL STRIP; 3-POLE; N-PE-L1; WITH GROUND CONTACT; FOR 3 MM SCREW AND NUT; 4 MM ; 4,00 MM ; WHITE GROUND 51131556
Catalog Description: 4-conductor chassis-mount terminal strip; with ground contact; N-PE-L1; 3-pole; for 3 mm ø screw and nut; 4 mm²; 4,00 mm²; white
