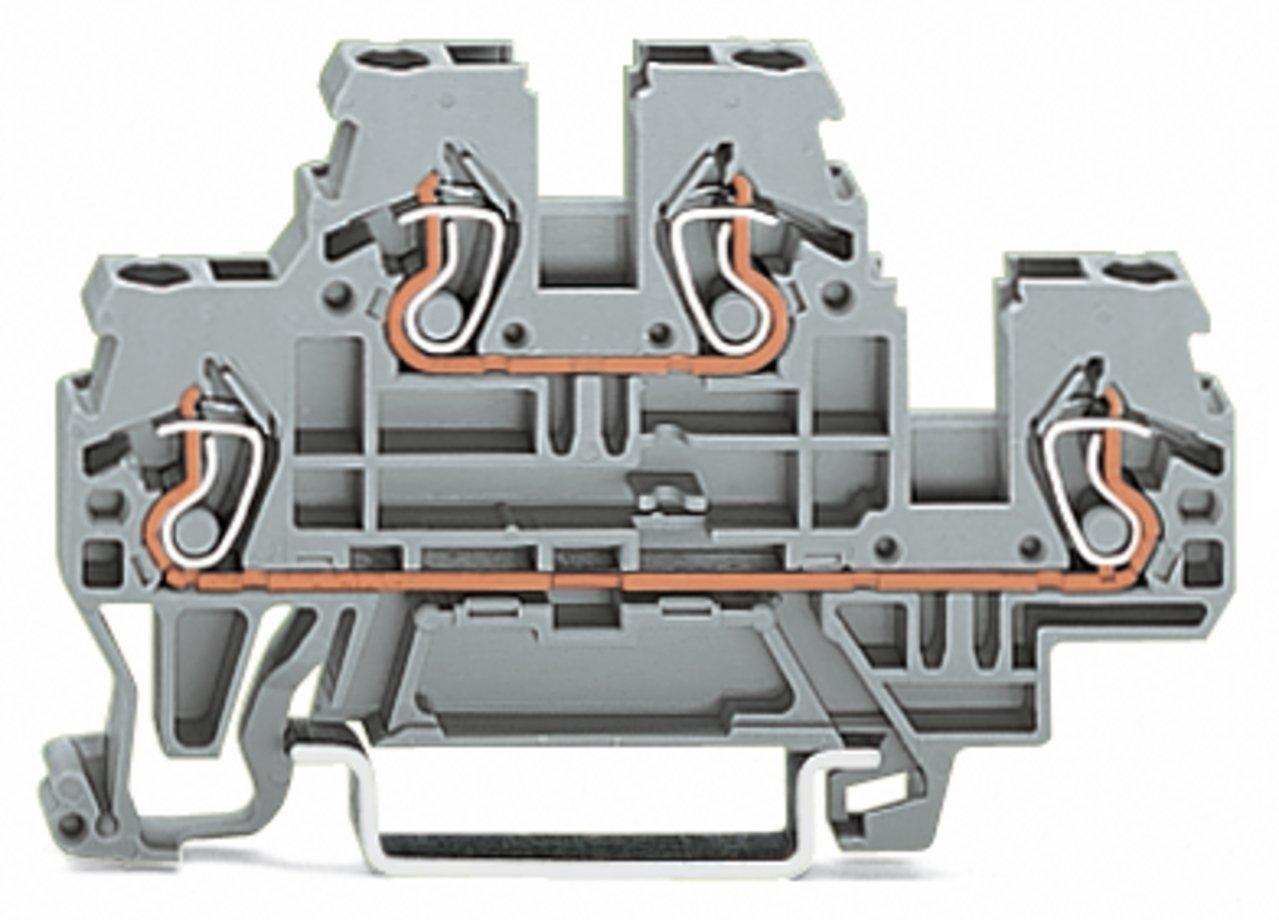

WAGO 870-502 Double-deck terminal block
Part Number # 870-502
SKU # 2203249
$4.06 / Each
Wago 870-502 Key Features
Brand: Wago
Part Number # 870-502
SKU #2203249
Amperage Rating: 24 A
Dimensions: 2.756 in H x 0.197 in W x 1.575 in D
Number of Poles: 2
Type: Operating Tool
Voltage Rating: 500 V
Wire Size: 28 to 12 AWG
Actuation type: Operating tool
Color: Gray
Connection technology: CAGE CLAMP®
Connection type: Clamp
Country of origin: DE
Depth: 70 mm / 2.756 inch
Material: Polyamide
Mounting type: 35 mm DIN Rail, DIN-35 rail
Potential marking: N/L
Rated current: 24 A
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Total number of connection points: 4
Weight: 10.068 g
Width: 5 mm / 0.197 inch
Wiring type: Front-entry wiring
Manufacturer Name: WAGO Corporation
UNSPSC: 39121410
UPC: 04044918630870
$4.06 / Each
WAGO 870-502 Double-deck terminal block
Brand: Wago
Part Number: 870-502
Additional Description: WAGO-870-502 DOUBLE-DECK TERMINAL BLOCK; THROUGH/THROUGH TERMINAL BLOCK; N/L; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; CAGE CLAMP ; 2,50 MM ; GRAY 51139029
Catalog Description: Double-deck terminal block; Through/through terminal block; N/L; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
870-502 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2203249Part Number #870-502UNSPSC39121410UPC04044918630870
