870-507

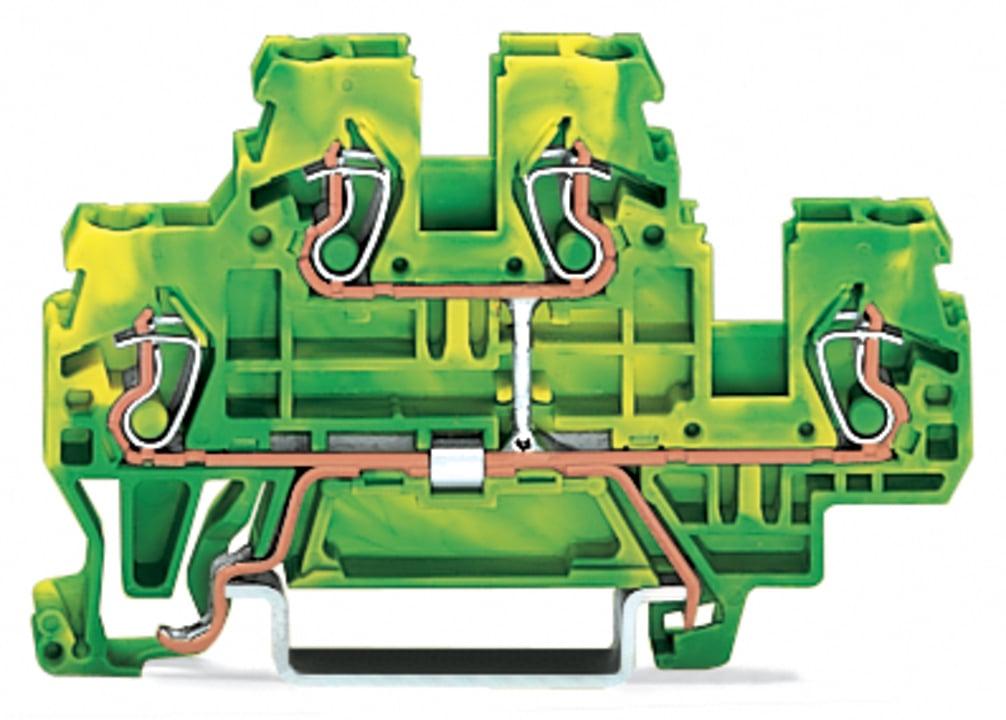

WAGO 870-507 Double-deck terminal block
Part Number # 870-507
SKU # 2214550
$9.12 / Each
Typical price:$9.88 / Each
Wago 870-507 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 870-507 |
| SKU #: | 2214550 |
| Amperage Rating: | 24, 24 A |
| Dimensions: | 1.575 in H x 0.197 in W x 2.756 in D |
| Terminal Type: | Through |
| Type: | Double Deck |
| Wire Size: | 28 to 12, 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Green-yellow, Green/Yellow |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 70 mm / 2.756 inch |
| Mounting type: | DIN Rail, DIN-35 rail |
| Potential marking: | PE |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 11.773 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454117986 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$9.12 / Each
Typical price:$9.88 / Each
Quantity:
- WAGO Terminal Block, Double Deck, 500 V AC, 24 A, 28 to 12 AWG Wire, 0.24 to 0.28 in Wire Strip Length, Through Terminal, DIN Rail Mount, Green/Yellow, 1.575 in H x 0.197 in W x 2.756 in D
870-507 Item Features
- Carrier rail 35 x 15 mounting
- Front entry wiring
- Copper connectable conductor material
- Horizontal design
- 12 to 28 AWG fine stranded conductor
- 12 to 28 AWG solid connection
870-507 Standards
RoHS CompliantSKU #2214550Part Number #870-507UNSPSC39121410UPC04045454117986
