Part Number # 870-508
SKU # 2214548
Image provided may only be a representation of
final product and may include optional equipment
870-508

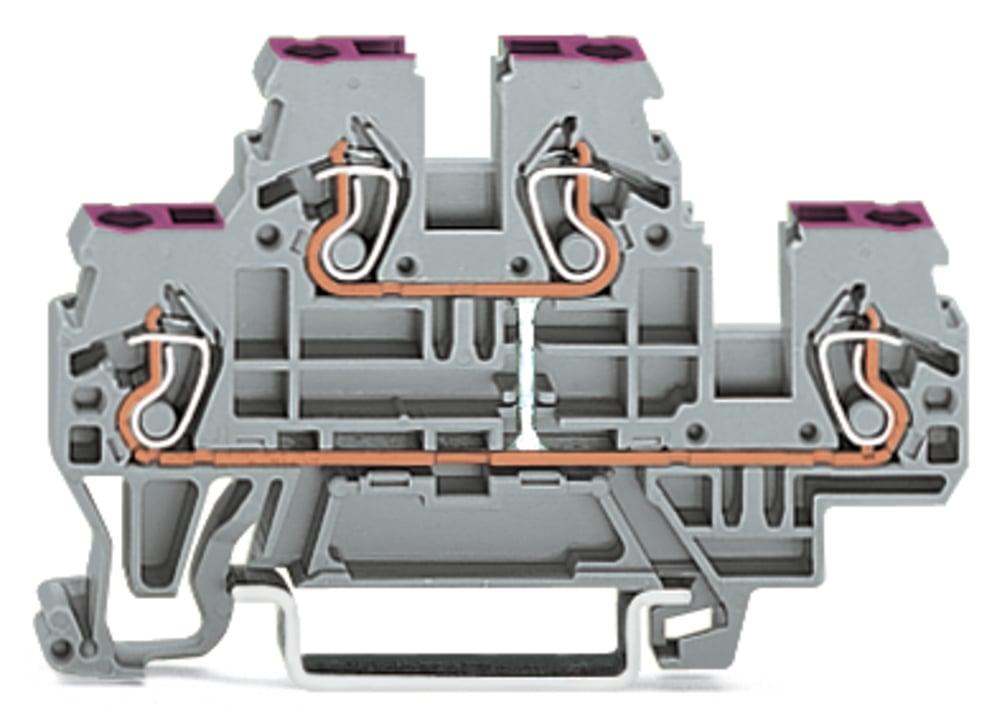

WAGO 870-508 Double-deck terminal block
Part Number # 870-508
SKU # 2214548
Wago 870-508 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 870-508 |
| SKU #: | 2214548 |
| Amperage Rating: | 24 A |
| Dimensions: | 2.756 in H x 0.197 in W x 1.575 in D |
| Series: | 870 |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Terminal Type: | Through |
| Type: | Double Deck |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Cage Clamp |
| Country of origin: | DE |
| Depth: | 70 mm / 2.756 inch |
| Material: | Polyamide 6.6 |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Potential marking: | L |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 10.332 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454117993 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 870-508 Double-deck terminal block
Brand: Wago
Part Number: 870-508
WAGO-870-508 870 Series Double Deck Terminal Block, Number Of Terminals: 4, Wire Size: 28 - 12 AWG, Amperage Rating: 24 AMP, cURus: 20 AMP, Voltage Rating: 500 V, cURus: 300 V, Color: Gray, Mounting: 35 Din Rail, Connection: Cage Clamp Compact, Front-Entry Wiring, Strip Length: 0.26 IN, Dimensions: 0.197 IN Width X 2.756 IN Depth X 1.575 IN Height, RoHS Compliant, ABS 05-HG476175/3-PDA, CCA NL6826, cURus E45172, DNV E-9214, GL 17295-00HH, KEMA 2143311.01, LR 91/20112(E6)
Additional Description: WAGO-870-508 DOUBLE-DECK TERMINAL BLOCK; 4-CONDUCTOR THROUGH TERMINAL BLOCK; L; INTERNAL COMMONING; CONDUCTOR ENTRY WITH VIOLET MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM; CAGE CLAMP; 2,50 MM; GRAY 51163880 4-CONDUCTOR THROUGH TERMINAL BLOCK; L; INTERNAL COMMONING; CONDUCTOR ENTRY WITH VIOLET MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; CAGE CLAMP ; 2,50 MM ; GRAY 51163880
Catalog Description: Double-deck terminal block; 4-conductor through terminal block; L; internal commoning; conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
870-508 Standards
RoHS Compliant|UL94SKU #2214548Part Number #870-508UNSPSC39121410UPC04045454117993
