870-523/281-587

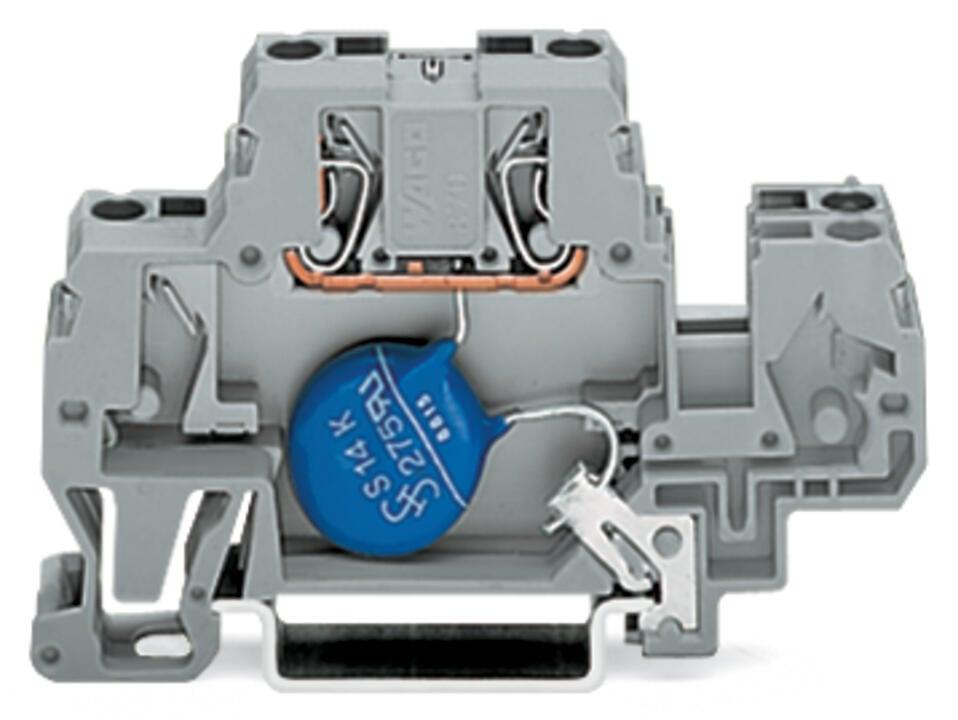

WAGO 870-523/281-587 Terminal blocks with varistor
Part Number # 870-523/281-587
SKU # 2292777
$20.60 / Each
Typical price:$22.32 / Each
Wago 870-523/281-587 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 870-523/281-587 |
| SKU #: | 2292777 |
| Amperage Rating: | 20 A |
| Dimensions: | 2.756 in H x 0.394 in W x 1.575 in D |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Double-Deck |
| Wire Size: | 28 to 14 AWG |
| Capacitance: | ≤ 570 pF |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 70 mm / 2.756 inch |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated continuous current: | 20 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Weight: | 12.200 g |
| Width: | 10 mm / 0.394 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454353698 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$20.60 / Each
Typical price:$22.32 / Each
Quantity:
WAGO 870-523/281-587 Terminal blocks with varistor
Brand: Wago
Part Number: 870-523/281-587
Additional Description: WAGO-870-523/281-587 COMPONENT TERMINAL BLOCK; DOUBLE-DECK; WITH VARISTOR; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM; CAGE CLAMP; 2,50 MM; GRAY 51178683 MM ; CAGE CLAMP ; 2,50 MM ; GRAY 51178683
Catalog Description: Component terminal block; double-deck; with varistor; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
870-523/281-587 Standards
RoHS CompliantSKU #2292777Part Number #870-523/281-587UNSPSC39121410UPC04045454353698
