870-523/281-589

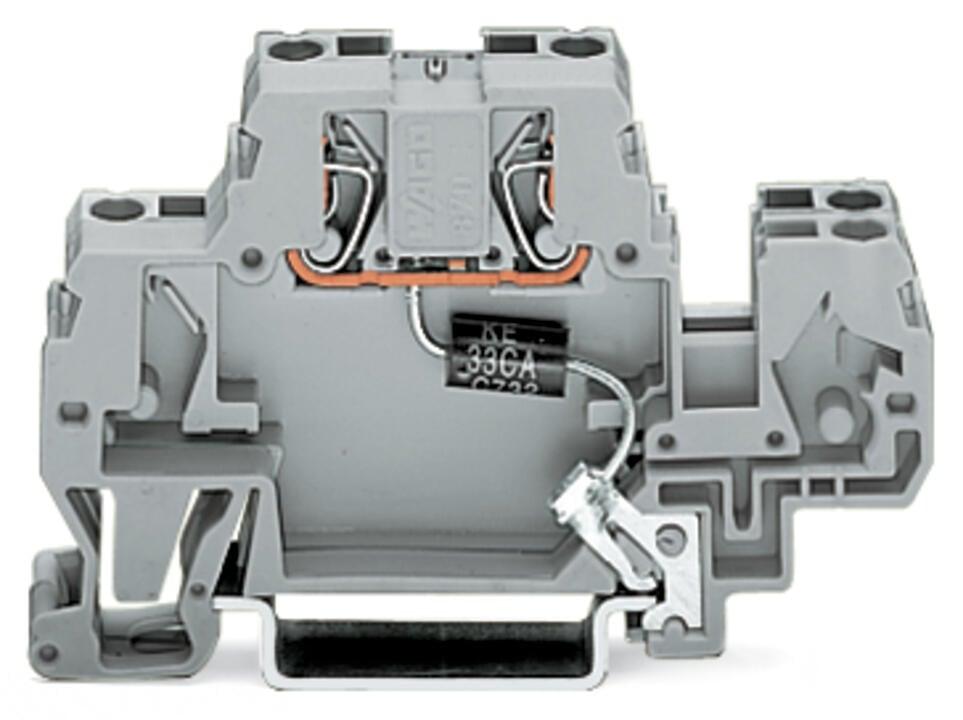

WAGO 870-523/281-589 Terminal blocks with suppressor diode
Part Number # 870-523/281-589
SKU # 2290111
$26.85 / Each
Typical price:$29.09 / Each
Wago 870-523/281-589 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 870-523/281-589 |
| SKU #: | 2290111 |
| Amperage Rating: | 20 A |
| Dimensions: | 2.756 in H x 0.394 in W x 1.575 in D |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Double-Deck |
| Wire Size: | 28 to 14 AWG |
| Capacitance: | ≤ 2.7 nF |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 70 mm / 2.756 inch |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated continuous current: | 20 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Weight: | 11.266 g |
| Width: | 10 mm / 0.394 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821868385 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$26.85 / Each
Typical price:$29.09 / Each
Quantity:
- WAGO, 870-523/281-589, Component Terminal Block, Double-Deck, 24 V DC, 20 A, 28 to 14 AWG Wire, 0.24 to 0.28 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, -35 to 85 deg C, Polyamide, Gray, 2.756 in H x 0.394 in W x 1.575 in D Dimensions
870-523/281-589 Standards
RoHS CompliantSKU #2290111Part Number #870-523/281-589UNSPSC39121410UPC04050821868385
