Part Number # 870-533
SKU # 2227238
Image Disclaimers Message
Brand: Wago
870-533

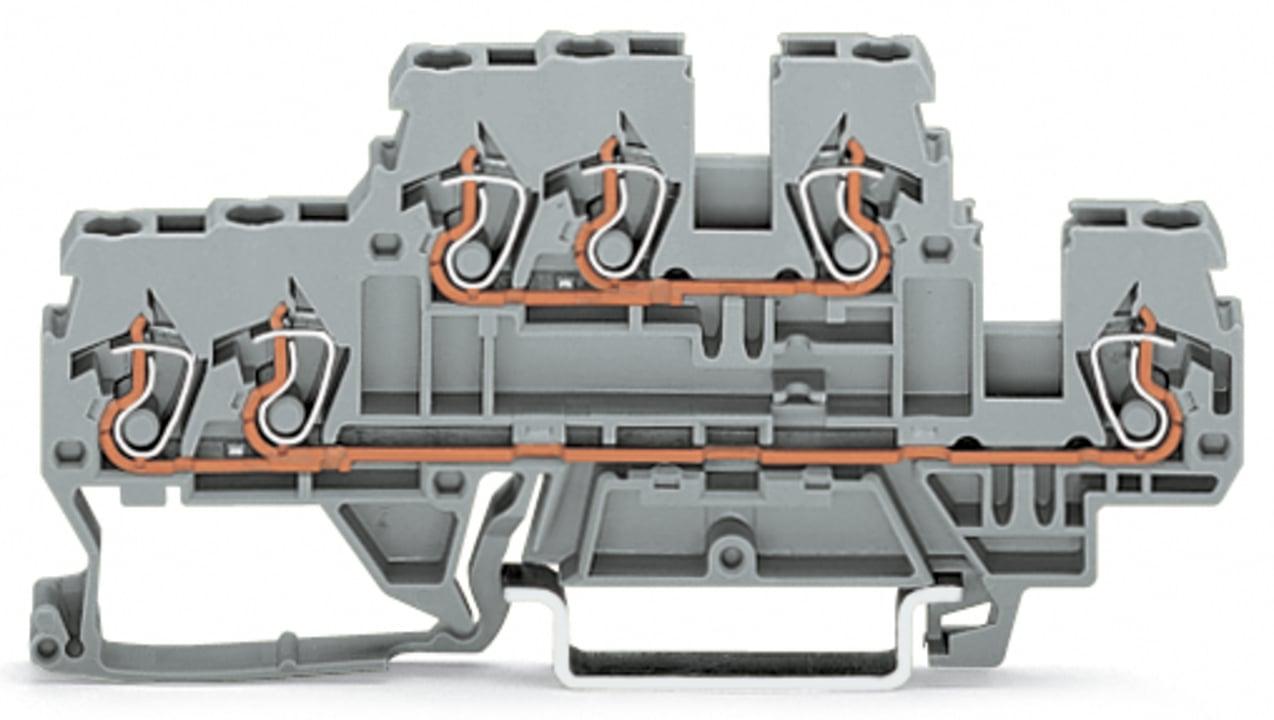

WAGO 870-533 3-conductor, double-deck terminal block
Part Number # 870-533
SKU # 2227238
$6.72 / Each
Typical price:$7.28 / Each
Wago 870-533 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 870-533 |
| SKU #: | 2227238 |
| Amperage Rating: | 24 A |
| Dimensions: | 3.583 in H x 0.197 in W x 1.575 in D |
| Number of Poles: | 2 |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 91 mm / 3.583 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Potential marking: | L/N |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 6 |
| Weight: | 13.999 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454094485 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6.72 / Each
Typical price:$7.28 / Each
Quantity:
- WAGO, 870-533, Conductor Terminal Block, Operating Tool, 500 V, 24 A, 2 Pole, 28 to 12 AWG Wire, 0.24 to 0.28 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, Polyamide, Gray, 3.583 in H x 0.197 in W x 1.575 in D Dimensions
870-533 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2227238Part Number #870-533UNSPSC39121410UPC04045454094485
