Part Number # 870-537
SKU # 2145809
870-537

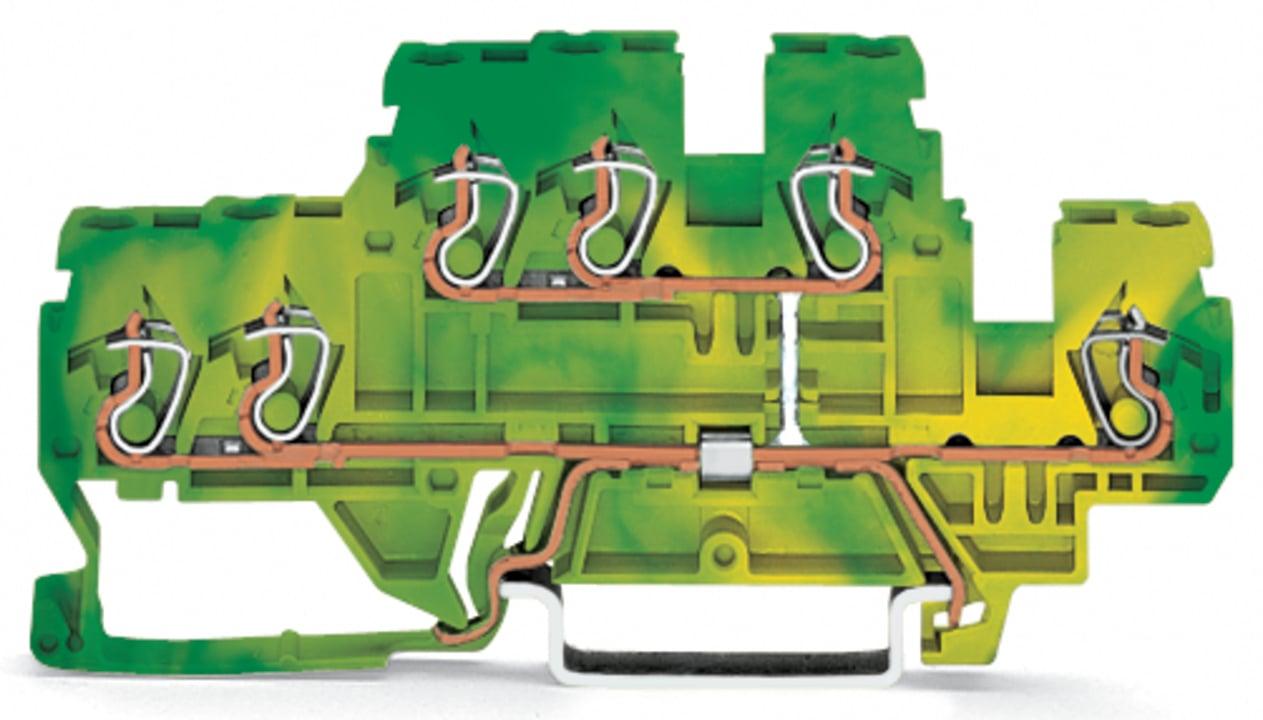

WAGO 870-537 3-conductor, double-deck terminal block
Part Number # 870-537
SKU # 2145809
$13.13 / Each
Typical price:$14.22 / Each
Wago 870-537 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 870-537 |
| SKU #: | 2145809 |
| Dimensions: | 3.583 in H x 0.197 in W x 1.575 in D |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Connection type: | Clamp |
| Depth: | 91 mm / 3.583 inch |
| Potential marking: | PE |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Weight: | 15.500 g |
| Wiring type: | Front-entry wiring |
| UNSPSC: | 39121410 |
| UPC: | 04045454094522 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$13.13 / Each
Typical price:$14.22 / Each
Quantity:
WAGO 870-537 3-conductor, double-deck terminal block
Brand: Wago
Part Number: 870-537
Additional Description: WAGO-870-537 3-CONDUCTOR, DOUBLE-DECK TERMINAL BLOCK; INTERNAL COMMONING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; CAGE CLAMP ; 2,50 MM ; GREEN-YELLOW 51161752
Catalog Description: 3-conductor, double-deck terminal block; 6-conductor ground terminal block; 2.5 mm²; PE; internal commoning; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 2,50 mm²; green-yellow
870-537 Standards
IEC/EN 60947-7-2|RoHS CompliantSKU #2145809Part Number #870-537UNSPSC39121410UPC04045454094522
Image provided may only be a representation of final product and may include optional equipment
