Part Number # 870-539
SKU # 2349370
870-539

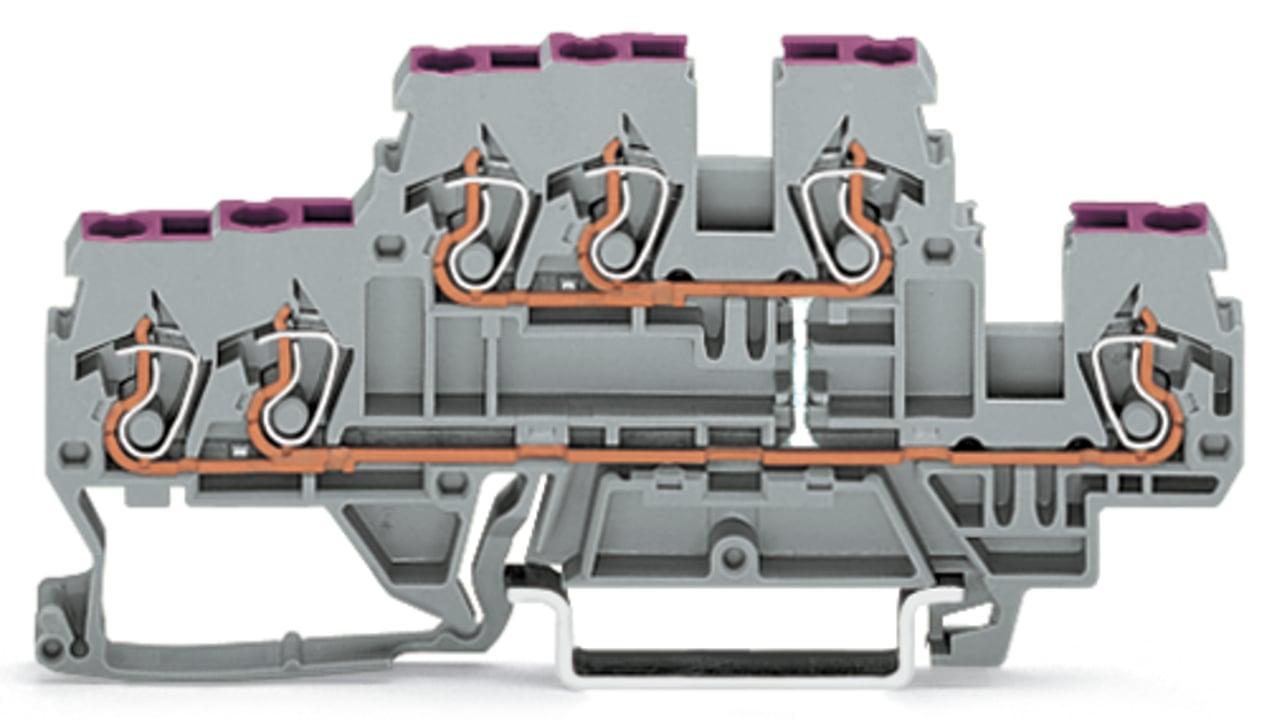

WAGO 870-539 3-conductor, double-deck terminal block
Part Number # 870-539
SKU # 2349370
Wago 870-539 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 870-539 |
| SKU #: | 2349370 |
| Dimensions: | 3.583 in H x 0.197 in W x 1.575 in D |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Connection type: | Clamp |
| Depth: | 91 mm / 3.583 inch |
| Potential marking: | N |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Weight: | 14.400 g |
| Wiring type: | Front-entry wiring |
| UNSPSC: | 39121410 |
| UPC: | 04045454094546 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 870-539 3-conductor, double-deck terminal block
Brand: Wago
Part Number: 870-539
Additional Description: WAGO-870-539 3-CONDUCTOR, DOUBLE-DECK TERMINAL BLOCK; 6-CONDUCTOR THROUGH TERMINAL BLOCK; N; SUITABLE FOR EX I APPLICATIONS; INTERNAL COMMONING; CONDUCTOR ENTRY WITH VIOLET MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM; CAGE CLAMP; 2,50 MM; BLUE 51161754 BLOCK; 6-CONDUCTOR THROUGH TERMINAL BLOCK; N; SUITABLE FOR EX I APPLICATIONS; INTERNAL COMMONING; CONDUCTOR ENTRY WITH VIOLET MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; CAGE CLAMP ; 2,50 MM ; BLUE 51161754
Catalog Description: 3-conductor, double-deck terminal block; 6-conductor through terminal block; N; suitable for Ex i applications; internal commoning; conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; blue
870-539 Application
Suitable for Ex i applications870-539 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2349370Part Number #870-539UNSPSC39121410UPC04045454094546
Image provided may only be a representation of final product and may include optional equipment
